FIELDPIECE HR3BM Mini-Split Ball Valve Hose Set

Product Description

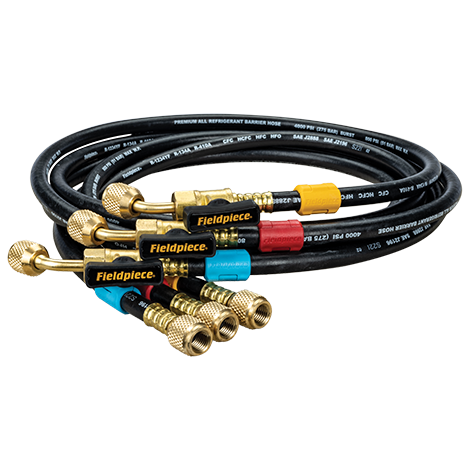

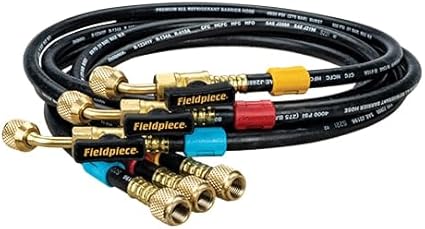

The Fieldpiece HR3BM Mini-Split Ball Valve Hose Set is essential for charging, recovery, and evacuation tasks. This set features three hoses, each measuring five feet in length. The hoses have a fitting size of five-sixteenths of an inch on one end and one-quarter of an inch on the other. Compatible with A2L refrigerants, the hose set incorporates a permeation barrier that adheres to SAE J2196 standards.

• Includes three hoses for versatile applications.

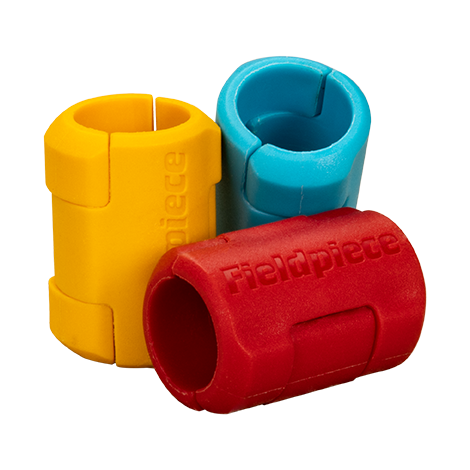

• Customizable hose color tags for easy identification.
• Rugged full-ring triple crimp design enhances durability.

Product Highlights

The Fieldpiece HR3BM is built for reliability and efficiency in HVAC tasks.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: HR3BM

Technical Specifications

• Hose Length: 5 Feet
• Fitting Size: 5/16 inches x 1/4 inches
• Working Pressure: 800 Psi
• Burst Pressure: 4000 Psi
• Maximum Pressure: 4000 Pounds per Square Inch
• Outside Diameter: 0.31 Inches
• Item Dimensions: 4 x 2 x 2 inches
