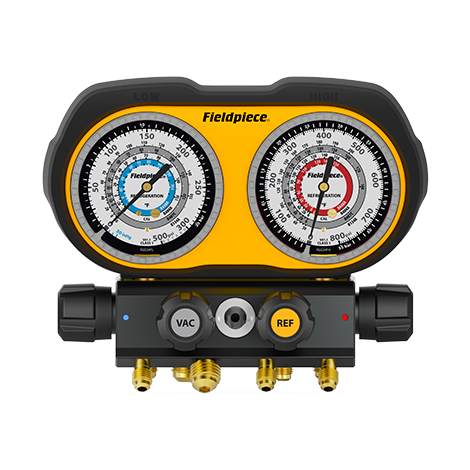

Fieldpiece GS434F Analog Gauge Set 4 Port Manifold

Product Description

The Fieldpiece GS434F analog gauge set is a dependable tool for system diagnostics, refrigerant recovery, pressure testing, and charging. Equipped with four refrigerant saturation temperature rings and a rotating pressure marker, this 4-port manifold minimizes costs and maximizes use. It features a high side pressure range of 0 to 800 Psi and a low side pressure range of 30 inHg to 500 psi.

• Features four refrigerant saturation temperature rings: R134A, R404A, R407C, R448A
• Integrated sight glass to see refrigerant flow
• Equipped with a rotating pressure marker
• High-grip valve knobs for easy operation

Product Highlights

The GS434F analog gauge set delivers accurate readings with a rugged design, ensuring confidence on every job.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: GS434F

Technical Specifications

• Maximum Block Overpressure: 800 psi (55 Bar)
• High Side Pressure Range: 0 to 800 Psi (0 to 55 Bar)
• Low Side Pressure Range: 30 inHg to 500 psi (-1 to 34 Bar)
• Low Side Overpressure Retard Protection: 300 psi (20 Bar)
• Accuracy: +/-1% Full Scale, Class 1A
• Operating/Storage Environment: -40 to 158°F (-40 to 70°C), <90% RH Non-condensing
• Port Type: (3) 1/4” Standard SAE Male Flare Fittings, (1) 3/8” Standard SAE Male Flare Fitting (4-Port only)
