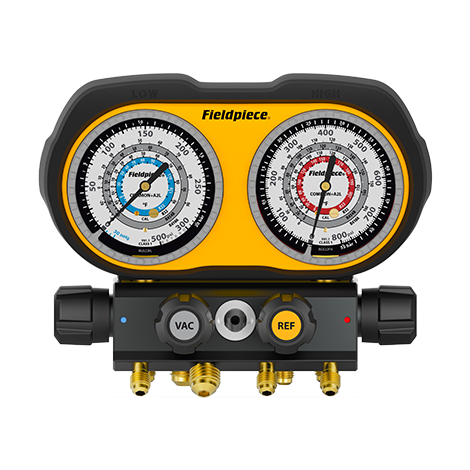

Fieldpiece GS422F Analog Gauge Set 4 Port Manifold

Product Description

The Fieldpiece GS422F analog gauge set is a dependable tool for system diagnostics, refrigerant recovery, pressure testing, and charging. The GS422F features four refrigerant saturation temperature rings and a rotating pressure marker. It is designed to withstand jobsite conditions while providing accurate readings. Includes GS422F 4-Port Manifold and an operator’s manual.

• Four Refrigerant Saturation Temperature Rings: R22/R32/R454B/R410A
• Integrated sight glass to see refrigerant flow
• Rotating Pressure Marker
• High-grip valve knobs for easy operation
• Piston valves for precision control

Product Highlights

This analog gauge set is designed for durability and accuracy, making it suitable for various HVAC tasks.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: GS422F

Technical Specifications

• Maximum Block Overpressure: 800 psi (55 Bar)
• High Side Pressure Range: 0 to 800 Psi (0 to 55 Bar)
• Low Side Pressure Range: 30 inHg to 500 psi (-1 to 34 Bar)
• Low Side Overpressure Retard Protection: 300 psi (20 Bar)
• Accuracy: +/-1% Full Scale, Class 1A
• Operating/Storage Environment: -40 to 158°F (-40 to 70°C), <90% RH Non-condensing
• Port Type: (3) 1/4” Standard SAE Male Flare Fittings, (1) 3/8” Standard SAE Male Flare Fitting (4-Port only)
