Fieldpiece FP-TC24 Type-K Pipe Clamp Thermocouple

Product Description

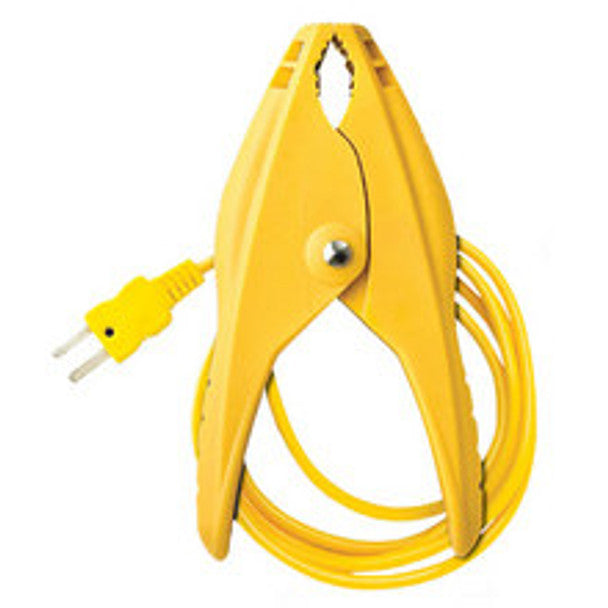

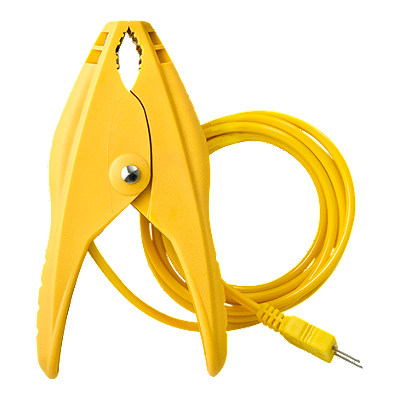

The Fieldpiece FP-TC24 is a Type-K thermocouple pipe clamp for HVACR applications. This device measures temperatures on fixed pipes ranging from three-eighths to one and three-eighths inches in diameter. It is engineered to perform well in residential and light commercial cooling systems. The sensor is designed to limit the influence of ambient temperatures, enhancing measurement accuracy. The large surface area ensures a strong contact with the pipe, making it ideal for superheat and subcooling measurements.

• Measures pipe temperatures from three-eighths to one and three-eighths inches in diameter.
• Facilitates superheat and subcooling measurements in HVACR systems.
• Features a K-type thermocouple sensor designed to minimize ambient temperature influence.

Product Highlights

This thermocouple is compliant with California's Title 24 requirements.

Product Information

Standard Information

• Brand: Fieldpiece
• Color: Yellow

Technical Specifications

• Accuracy: +/- 4°F (2°C), +/- 1°F (0.5°C) after field calibration, 32 to 176°F (0 to 80°C)
• Temperature Rating: -50 to 257°F
• Type: Type-K
• Jaw Range: Three-eighths to one and three-eighths pipe diameter
• Thermocouple Conductors: K-type nickel chromium/nickel aluminum
• Probe Insulation and Clamp Material: Designed for maximum continuous use at 257°F (125°C)
• Connection: K-type thermocouple male mini plug
• Typical Stabilization Time: Less than 30 seconds
• Dimensions: 5 inches by 4 inches by 3 inches
