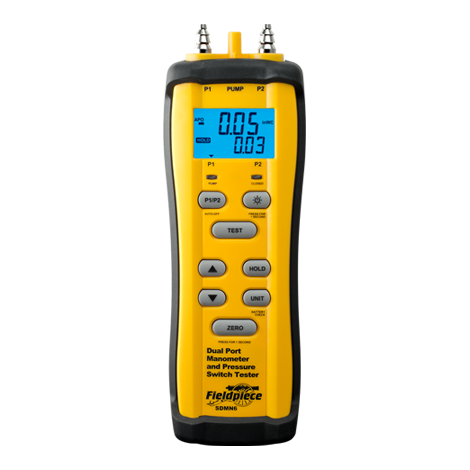

Fieldpiece FP-SDMN6 Dual Port Manometer with Pressure Switch Tester

Product Description

The Fieldpiece FP-SDMN6 is a dual-port manometer for measuring various types of pressure. This device measures draft pressure, gas pressure, static pressure, and differential pressure. It is designed to assist HVAC professionals with testing and calibrating adjustable pressure switches. The manometer features a built-in O2, CO, and CO2 measurements capability and connects wirelessly to the Job Link System App from a range of up to one thousand feet.

• Measures O2, CO, CO2, draft pressure, gas, static, and differential pressure.

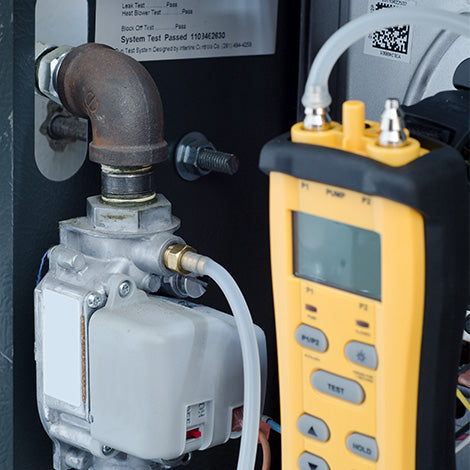

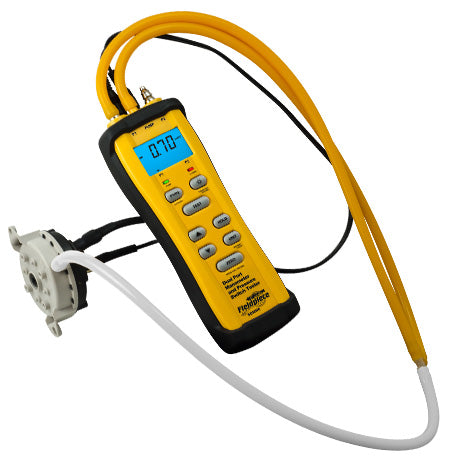

• Tests and calibrates adjustable pressure switches.
• Wireless connectivity with a range of one thousand feet.

Product Highlights

This manometer enhances efficiency and accuracy during HVAC work.

Product Information

Standard Information

• Brand: Fieldpiece
• Model: FP-SDMN6

Technical Specifications

• Display: Touchscreen TFT LCD (five point five inches diagonal)
• Accuracy: Stated accuracies at twenty-three degrees Celsius plus/minus five degrees Celsius
• Battery Type: Three point seven VDC, six thousand four hundred mAh, non-replaceable
• Battery Life: Seven hours typical with pump operation
• Weight: 1.8 lbs
• Wireless Range: One thousand feet
• Operating Environment: Zero degrees Celsius to forty-eight degrees Celsius
• Units of Measure: inWC, mmWC, mbar, psi
