Fieldpiece FP-MG44 Job Link Wireless Vacuum Gauge

Product Description

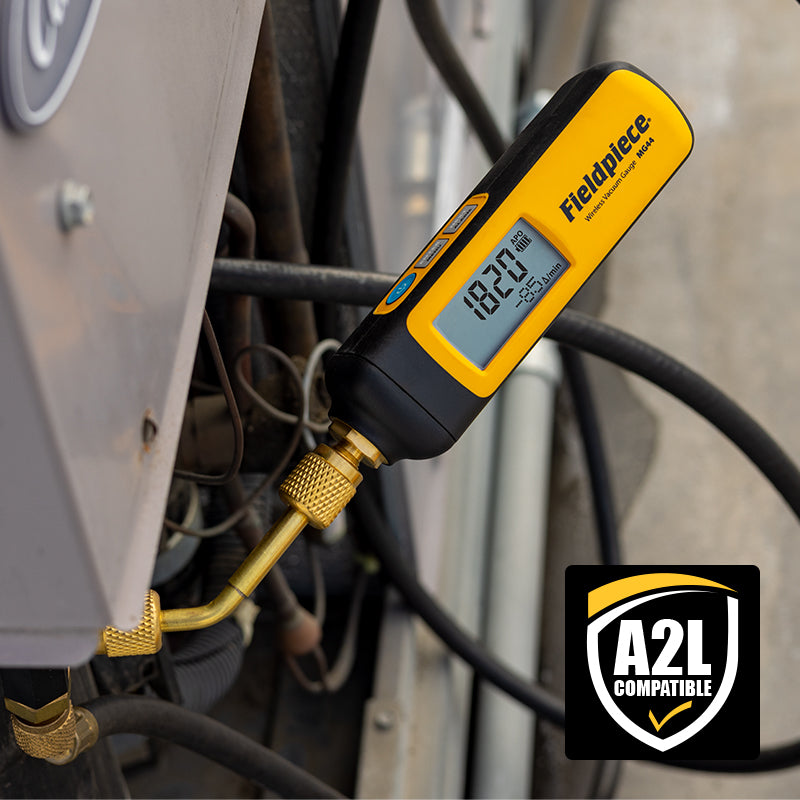

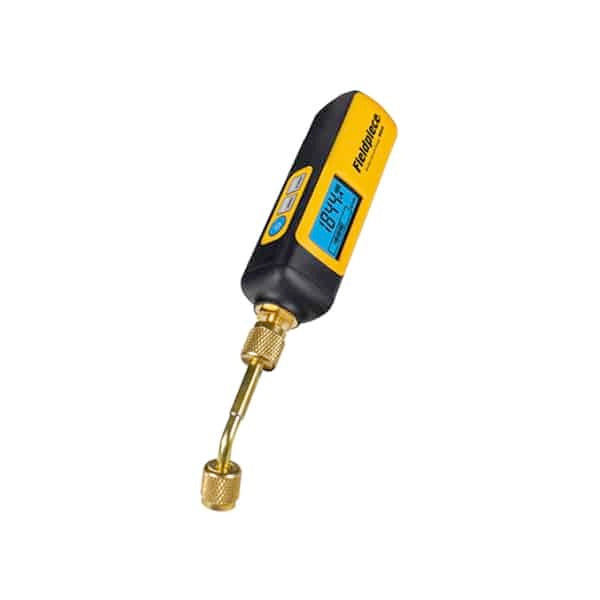

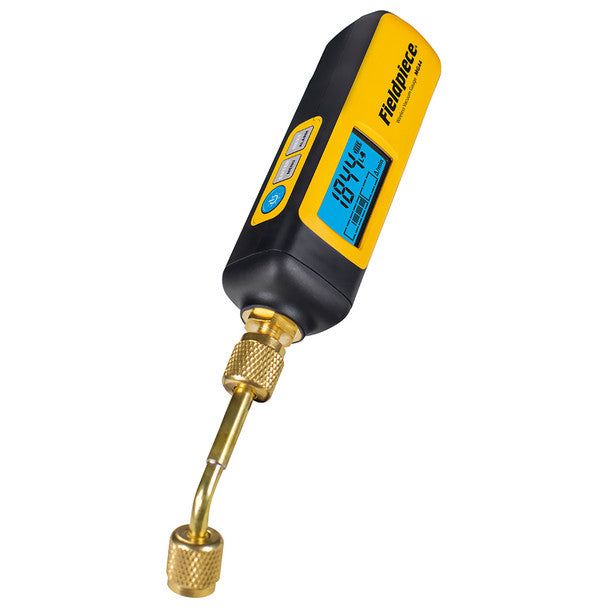

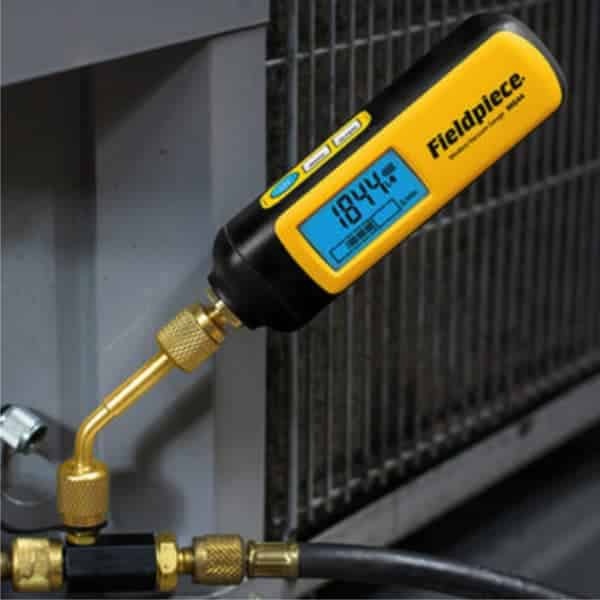

The Fieldpiece FP-MG44 Job Link Wireless Vacuum Gauge is a digital micron gauge designed to provide accurate vacuum measurements. It features a 1/4 SAE male fitting and is A2L compatible. This unit has a backlit LCD screen displaying information clearly and can operate in standalone mode or connect with the Job Link mobile app. The wireless range reaches up to 1000 feet, offering flexibility on the job site. It is compatible with Fieldpiece SMAN Refrigerant Manifolds and is robustly housed in an IP54-rated weather-resistant case. Key functions include alarms, a stopwatch, and a Schrader depressor for ease of use.

• Leak-proof seal for accurate vacuum monitoring.
• Multiple viewing options: bar graph, rate, and rate meter.
• Reversible angled coupler for use in tight spaces.

Product Highlights

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: FP-MG44

Technical Specifications

• Connector Type: 1/4 SAE male fitting
• Accuracy: ±(5% of reading + 5 microns) at seventy-seven degrees Fahrenheit
• Maximum Pressure: 870 PSI
• Measurement Range: 50 to 25000 microns of mercury
• Battery Type: 2 x AA Alkaline
• Wireless Range: 1000 feet (305 meters)
• Display Type: Digital
• Operating Environment: 14°F to 122°F
