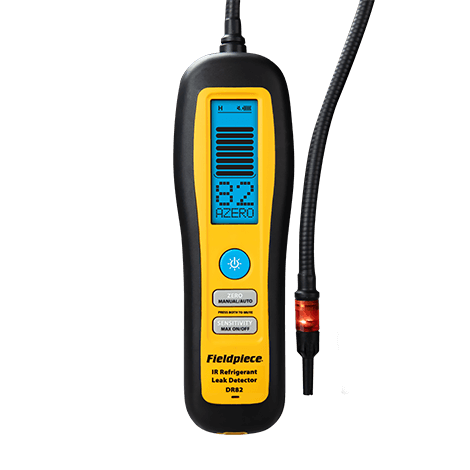

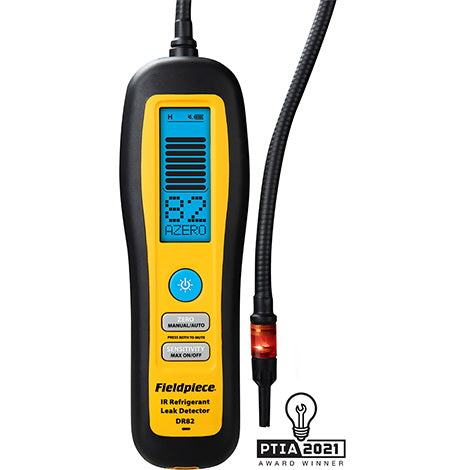

Fieldpiece FP-DR82 Infrared Refrigerant Leak Detector

Product Description

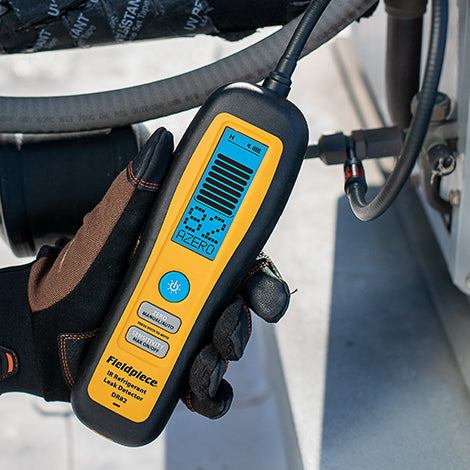

The Fieldpiece FP-DR82 is an infrared refrigerant leak detector suitable for use in HVAC and refrigeration systems. It features a long-lasting infrared sensor that can detect various refrigerants including HFCs, HCFCs, CFCs, and HFOs. This device has multiple alarm systems to notify the user of any leaks with visual and audible signals.

• Detects refrigerant leaks as small as 0.03 ounces per year.
• Equipped with a backlit LCD for easy reading in low light conditions.
• Designed for water resistance and built to IP54 standards.

Product Highlights

This detector operates on a rechargeable battery, providing approximately ten hours of usage per charge. It is also engineered to avoid false alarms from soap bubbles and oil.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: FP-DR82

Technical Specifications

• Sensor Type: Infrared (IR)
• Sensor Life: 10 years typical
• Sensitivity Levels: High, medium, low, turbo (selectable)
• Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion

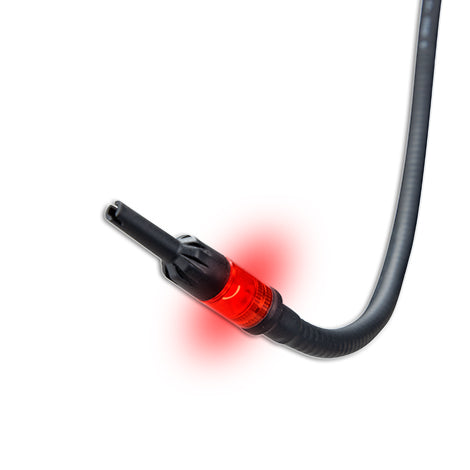

• Detection Feedback: Red LED tip, LCD bar graph, LCD digits, beeper
• Battery Type: 3.7 VDC, 2600mAh, non-replaceable
• Battery Life: 10 hours typical, backlight off
• Water Resistance: Designed to IP54
