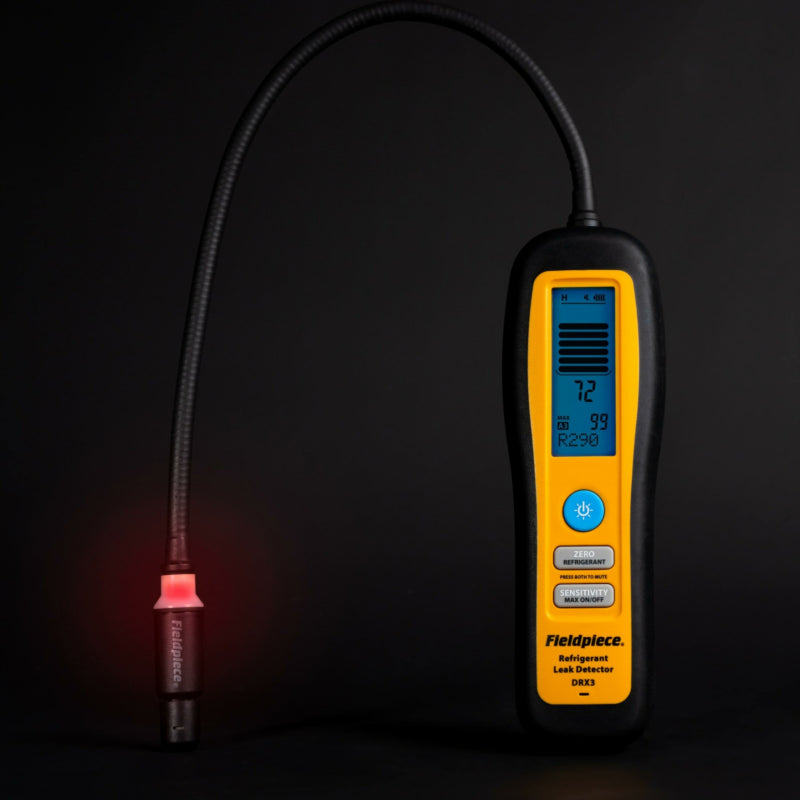

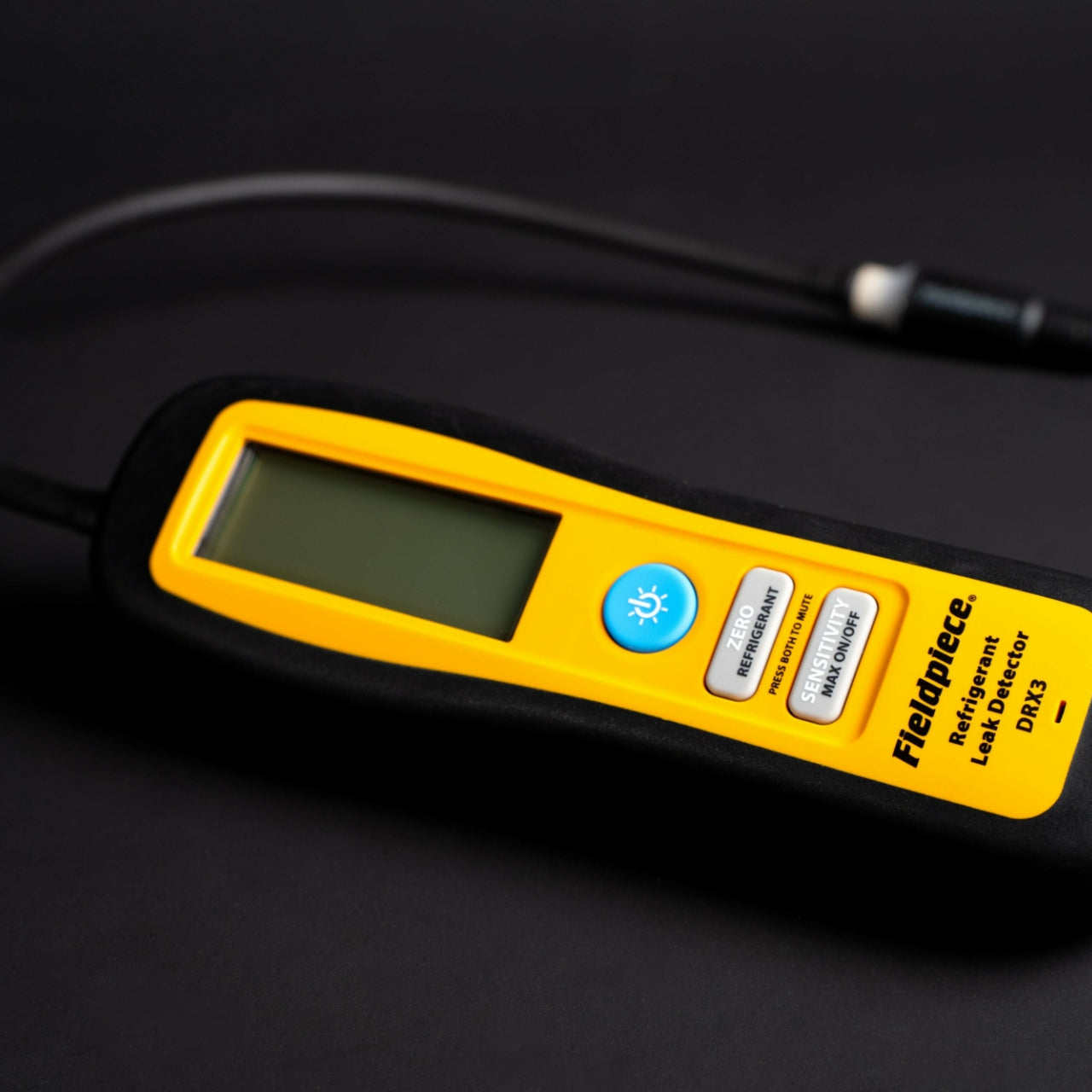

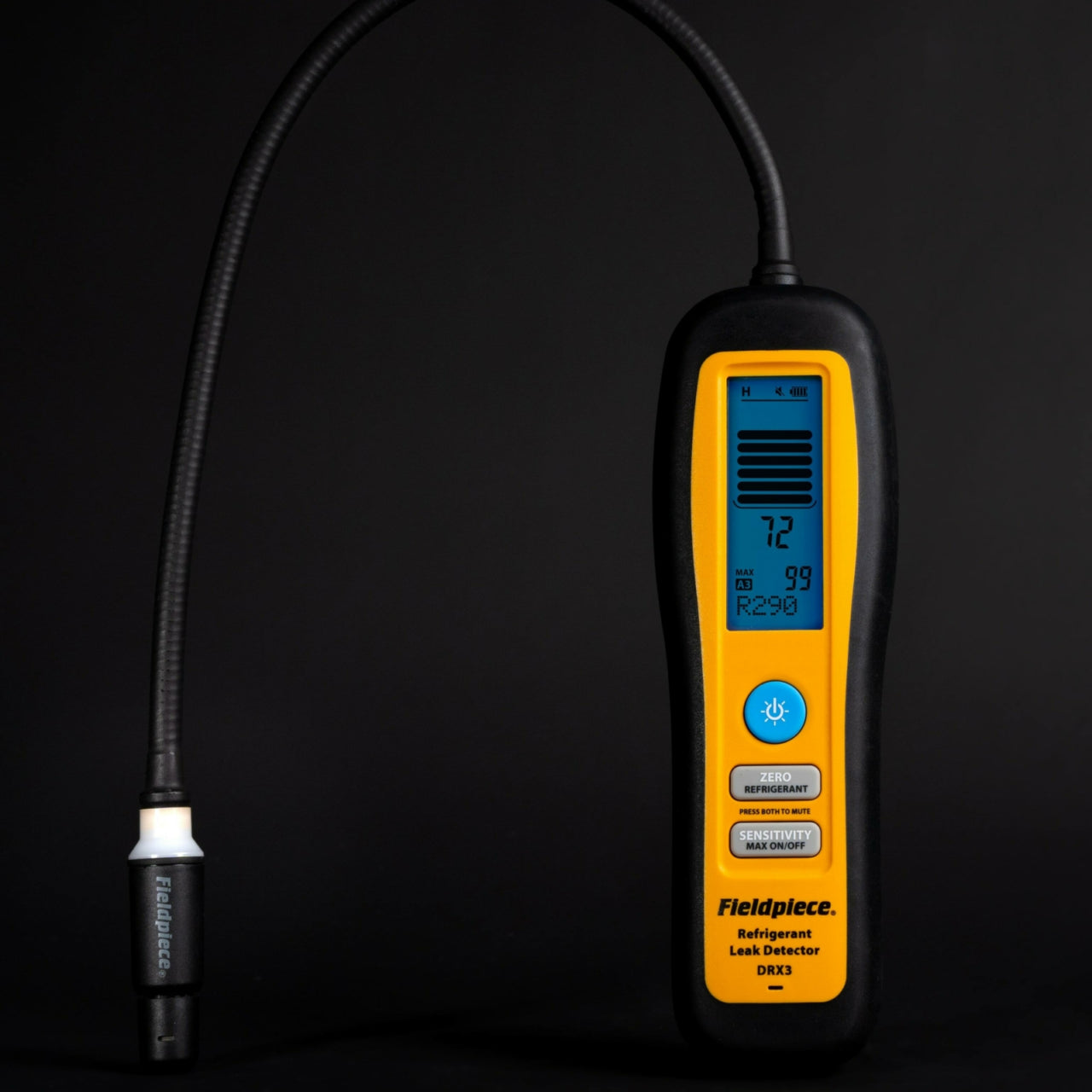

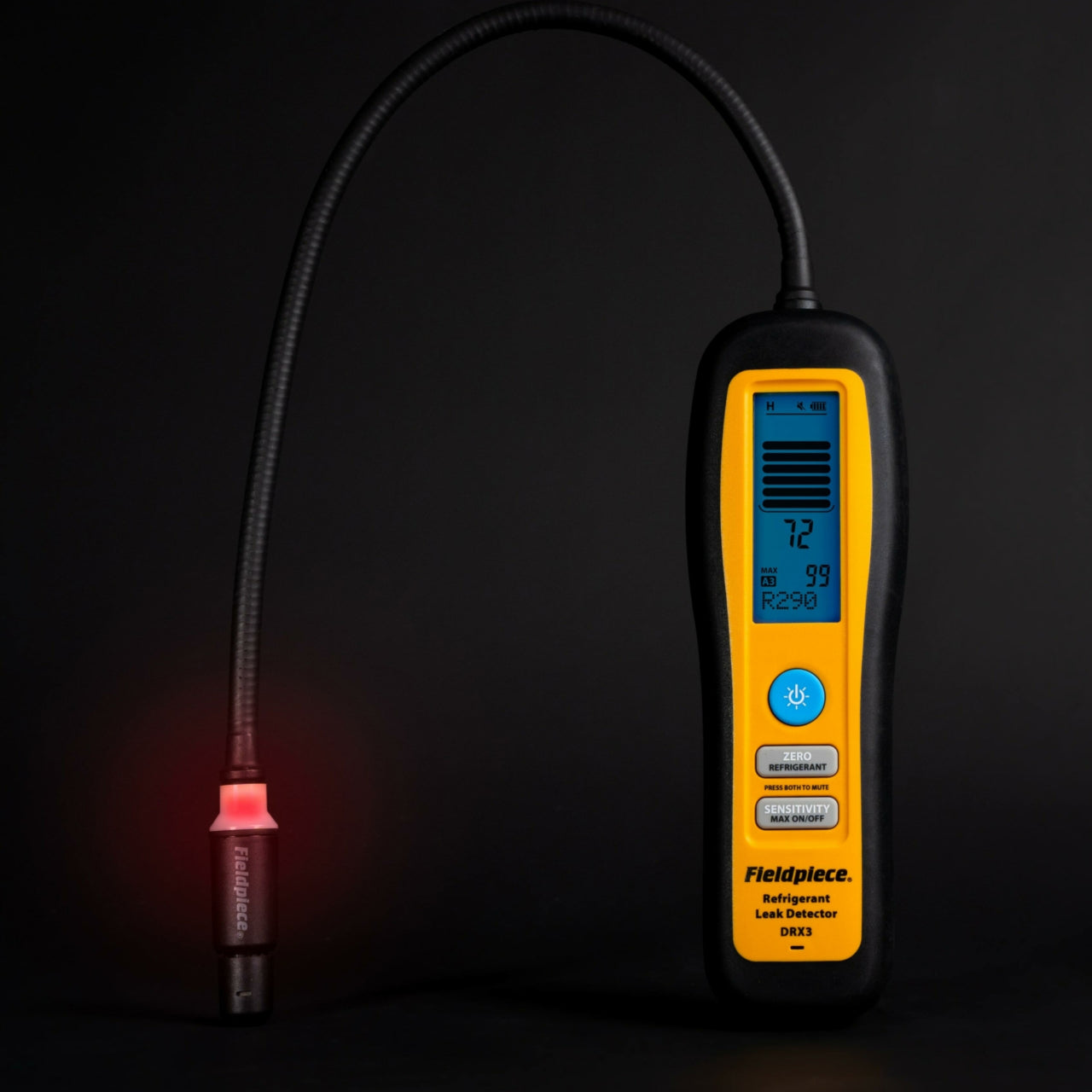

Fieldpiece DRX3 Refrigerant and Combustible Gas Leak Detector

Product Description

The Fieldpiece DRX3 is a device for detecting various refrigerants and combustible gases. It uses a heated diode sensor to identify HC, HFC, HCFC, CFC, HFO, and tracer gases, as well as natural gas, propane, butane, and methane. The tool provides both visual and audible alerts and connects seamlessly with the Job Link app. Suitable for ATEX Zone 2 and Class I, Division 2 hazardous locations.

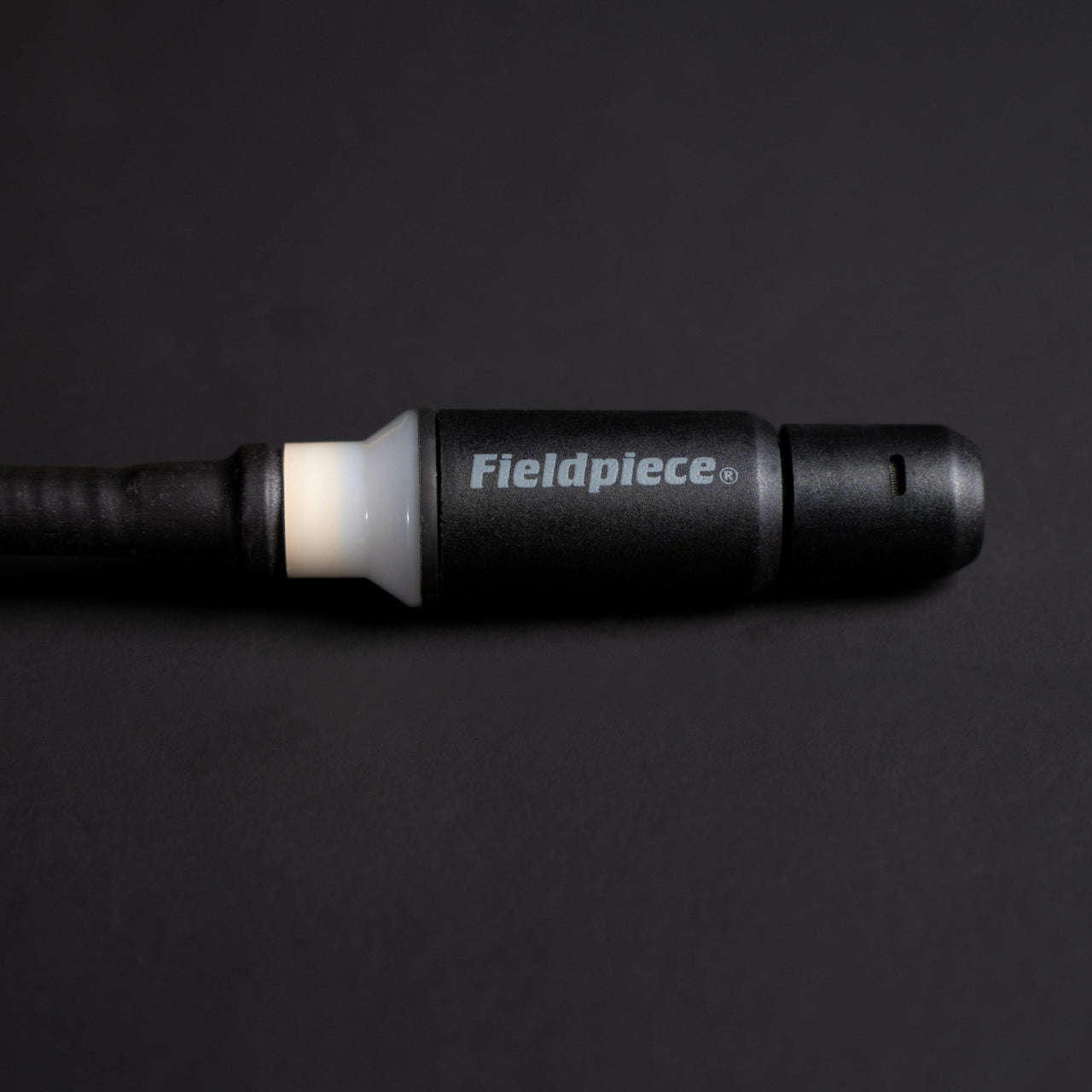

• Field-replaceable heated diode sensor
• Multiple sensitivity settings including auto/manual zero modes
• Detection feedback via LED lights and audible notifications

Product Highlights

Designed for HVAC professionals and technicians, the DRX3 offers reliable detection capabilities for a wide range of gases, making it essential for safety and compliance.

Product Information

Standard Information

• Sensor Type: Heated diode
• For Use With: A3, A2L, and A1 refrigerants

Technical Specifications

• Sensor Life: 300 hours typical
• Sensitivity Levels: High, Medium, Low (selectable)
• Maximum Sensitivity: 1g/yr stationary; 3g/yr in motion
• Heating Gases: Includes natural gas, propane, butane, methane
• Operating Environment: -20°C to 50°C (-4°F to 122°F); < 95% RH
• Battery Type: 4x Replaceable AA Lithium Iron Disulfide
• Battery Life: 60 hours typical
• Wireless Range: Up to 200 meters (656 feet) line of sight
