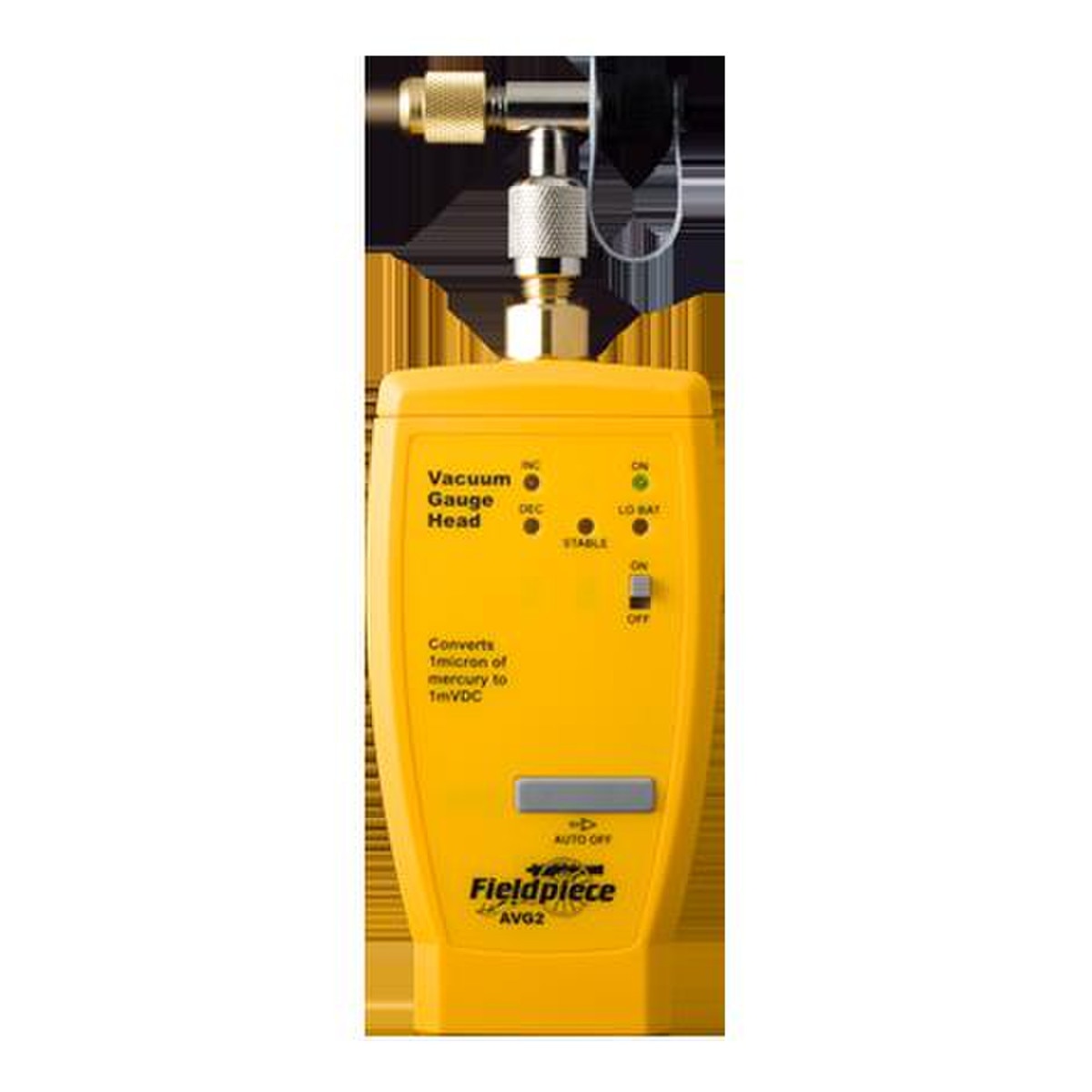

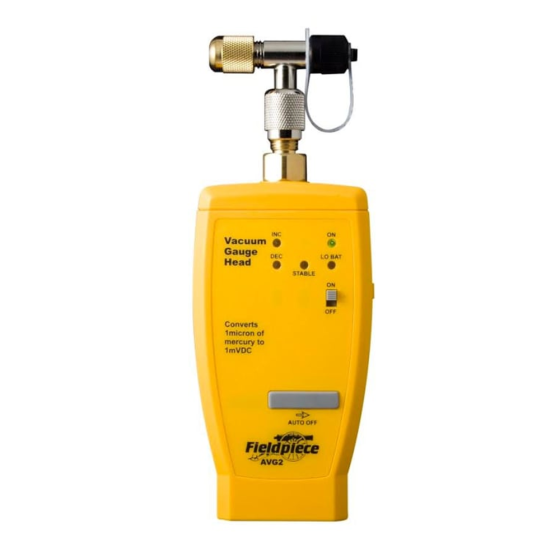

Fieldpiece AVG2 Digital Vacuum Gauge Accessory Head

Product Description

The Fieldpiece AVG2 is a digital vacuum gauge accessory designed for HVAC professionals. It measures vacuum levels from fifty to two thousand microns. The device converts these readings into millivolts DC. It features a unique LED pump down indicator and a robust sensor that can handle pressures up to five hundred psi.

• Measures vacuum from fifty to two thousand microns
• Includes a durable 1/4 inch flared brass fitting
• LED indicator for pump down status

Product Highlights

The AVG2 ensures precise vacuum measurements, making it reliable for HVAC applications.

Product Information

Standard Information

• Type: Vacuum Gauge
• Warranty: 1 Year

Technical Specifications

• Connection Size: 1/4 Inch
• Minimum Operating Temperature: 32 F
• Maximum Operating Temperature: 122 F
• Range: 50 to 2000 microns of mercury
• Resolution: 1 micron of mercury
• Accuracy (@~75°F): ±10%, 0-1000 microns of mercury
• Sensor: Precision thermistor
• Battery Life: 35 to 40 hours typical (alkaline)
