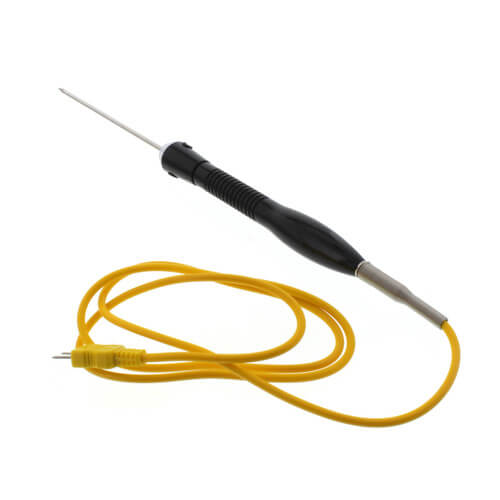

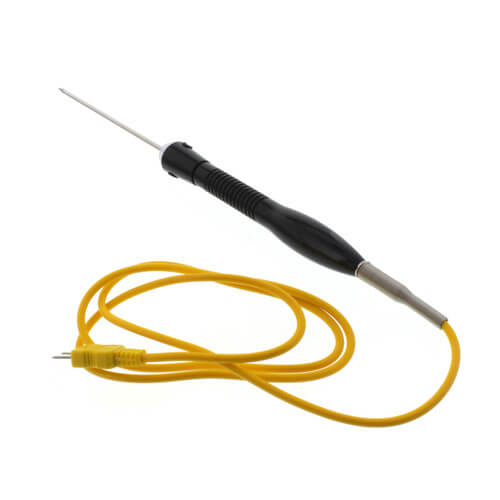

Fieldpiece ATR1 Piercing Probe K-Type Thermocouple for Ventilation Ducts

Product Description

The Fieldpiece ATR1 is a K-type thermocouple designed for measuring air temperature in ventilation ducts. It features a long rod that effectively reaches into the center of ducts, providing accurate readings across the full cross-section. The large handle allows HVAC technicians to easily push the sharp tip through softer duct materials. This probe can be utilized with any Fieldpiece temperature measuring meter or any thermometer compatible with K-type thermocouples.

• K-type thermocouple for accurate air temperature measurement
• Long rod extends four point seven five inches
• Compatible with Fieldpiece meters and other K-type thermometers

Product Highlights

The ATR1 is NSF rated for food applications and has a maximum temperature rating for the probe of one thousand five hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Fieldpiece Instruments
• Part Number: T1460

Technical Specifications

• Type: K-Type Thermocouple
• Accuracy: ±1°F (-238 - 32°F); ±0.5°C (-150 - 0°C), ±3°F (32 - 212°F); ±1.5°C (0 - 100°C), ±4°F (212 - 932°F); ±2°C (100 - 500°C), ±6°F (932 - 1472°F); ±3.2°C (500 - 800°C)
• Temperature Range: -238°F to 1472°F (-150°C to 800°C)
• Rod Length: 4.75 inches
• Rod Diameter: 0.125 inches
• Thermocouple Conductors: K-type nickel chromium/nickel aluminum
• Thermocouple Cable Length: 4 feet
