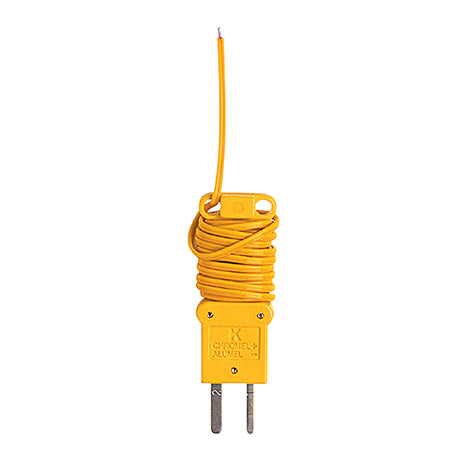

Fieldpiece ATB1 K-Type Bead Thermocouple -50-400 °F (Continuous) 482 °F (Maximum)

Product Description

The Fieldpiece Instruments ATB1 K-Type Bead Thermocouple is designed for measuring temperatures in air, surfaces, or liquids from negative fifty to four hundred degrees Fahrenheit. Ideal for HVAC technicians, the ATB1 can also be utilized for outdoor dry bulb temperature readings to assist in calculating target superheat. It works seamlessly with Fieldpiece meters and any thermometer that accepts K-Type thermocouples.

• Temperature range: -50°F to 400°F for continuous readings; up to 482°F for single exposure.
• Wrap-tab feature simplifies storage and prevents tangling in tool bags.
• Accuracy: ±4°F general, ±1°F after calibration.

Product Highlights

This thermocouple features a durable design with a K-Type male mini plug and a thirty-six inch lead length. It comes with a one-year warranty against manufacturing defects.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: ATB1

Technical Specifications

• Temperature Rating: -50-400 °F (Continuous), 482 °F (Maximum)
• Thermocouple Type: Type K
• Accuracy: ±4°F (General), ±1°F (After Calibration, 32-176 °F)
• Lead Length: 36 inches
• Connection Type: K-Type Thermocouple
• Tip Type: Bead
• Probe Connector: K-Type Male Mini Plug
• Probe Included: Yes
• Material: Nickel Chromium/Nickel Aluminum (Conductors), Fiberglass (Insulation)
• Domestic/Import: Import
