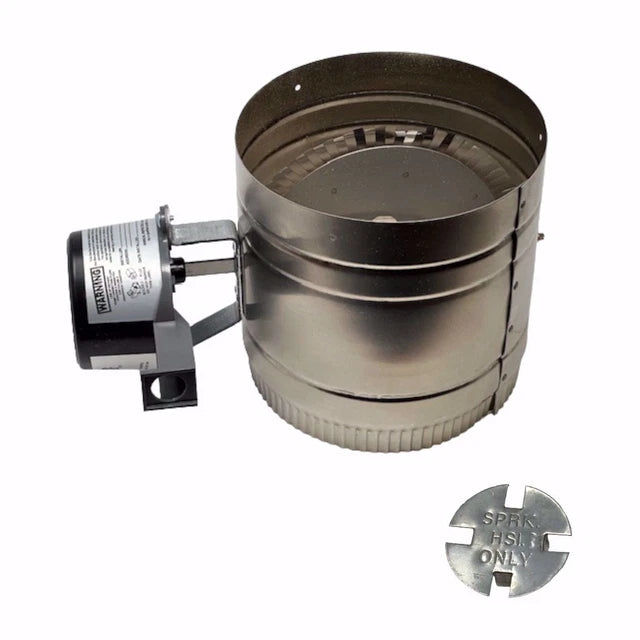

Fieldpiece 46487301 Gas Vent Dampers GVD Models

Product Description

The Fieldpiece 46487301 Gas Venting Dampers work automatically to allow natural draft during appliance operation while preventing heat from escaping during off cycles. Field Controls gas venting dampers (GVD) are made of stainless steel material and are available in 8 common sizes. The damper will not interfere with existing appliance safety controls, when properly installed.

• Gas Vent Dampers operate with all 24 VAC, 60hz intermittent and standing pilot ignition systems.
• Stainless steel construction provides superior corrosion resistance.
• Safety switch allows the burner to fire only when the damper is in the open position.

Product Highlights

Gas Vent Dampers prevent residual appliance heat and conditioned air from escaping during off cycles. It also prevents the infiltration of cold air during down drafts.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: 46487301

Technical Specifications

• Model: GVD-8PL
• Part Number: 46487301
• Pipe Size: 8
• Length: 8.0625
• Height: 12.875
• Clearance: 1.9375
• Exposed Pipe: 6.8125
