Fieldpiece 46395401 Swg-4hds Power Venter 170,000 Btu (4 inch)

Product Description

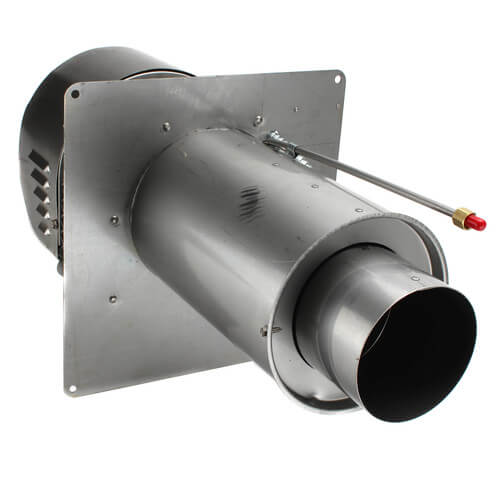

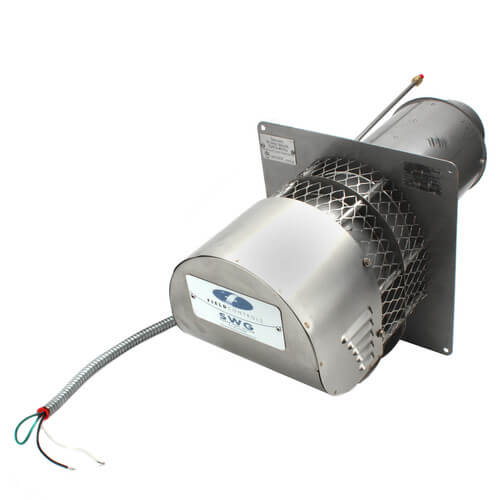

The FIELDPIECE 46395401 SWG-4HDS power venter combines the motor, blower, and vent hood in one easy-to-install unit. Designed for gas and oil heating appliances, it mounts outside the building, pulling combustion gases through the wall with 100% negative pressure. It must be sized to match the appliance's input firing rate and installed with a CK Control Kit.

• 100% negative pressure in the vent pipe for maximum safety
• Standard galvanized pipe can be used instead of expensive stainless steel
• No need to seal vent pipe joints, saving time and money

Product Highlights

The SWG power venter is recommended by major heating appliance manufacturers. It allows for longer vent lengths than positive pressure systems.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: 46395401

Technical Specifications

• Size: 4"
• Product Type: Power Venter
• Inlet Size: 4"
• BTU Input: 170000
• Voltage: 115V
• Hertz: 60
• RPM: 3000
• MODEL: SWG-4HDS
• AMPS: 1.7
• WATTS: 138
• THERMAL PROTECTION: Yes
