Fieldpiece 46275400 SWG Power Venter For Oil or Gas Appliances

Product Description

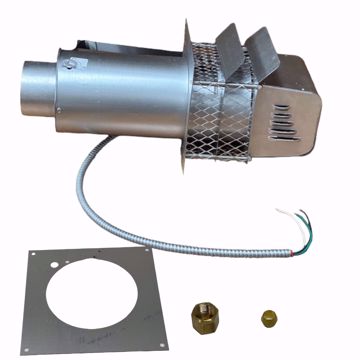

The FIELDPIECE 46275400 SWG power venter combines the motor, blower, and vent hood in one easy-to-install unit. Designed for gas and oil heating appliances, it mounts outside, pulling combustion gases through the wall using 100% negative pressure. It must be sized to match the appliance's input firing rate. The Field Controls SWG-4HD has 170,000 BTU capacity.

• SAFE: 100% negative pressure in the vent pipe for maximum safety
• LESS COSTLY: Standard galvanized pipe can be used instead of expensive stainless steel
• SAVES TIME: No need to seal vent pipe joints, saving time and money

Product Highlights

The SWG power venter is recommended by major heating appliance manufacturers. It is suitable for new construction, electric to gas/oil conversions, chimney relining avoidance, and additional heating appliance installations.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: 46275400
• Country of Origin: UK

Technical Specifications

• MODEL: SWG-4HD
• PART #: 46275400
• VOLTAGE: 115
• HZ: 60
• AMPS: 1.7
• WATTS: 138
• RPM: 3000
• THERMAL PROTECTION: Yes
• Product Type: Power Venter
• Application: Gas and Oil
• Size: 4"
• BTU: 170,000
