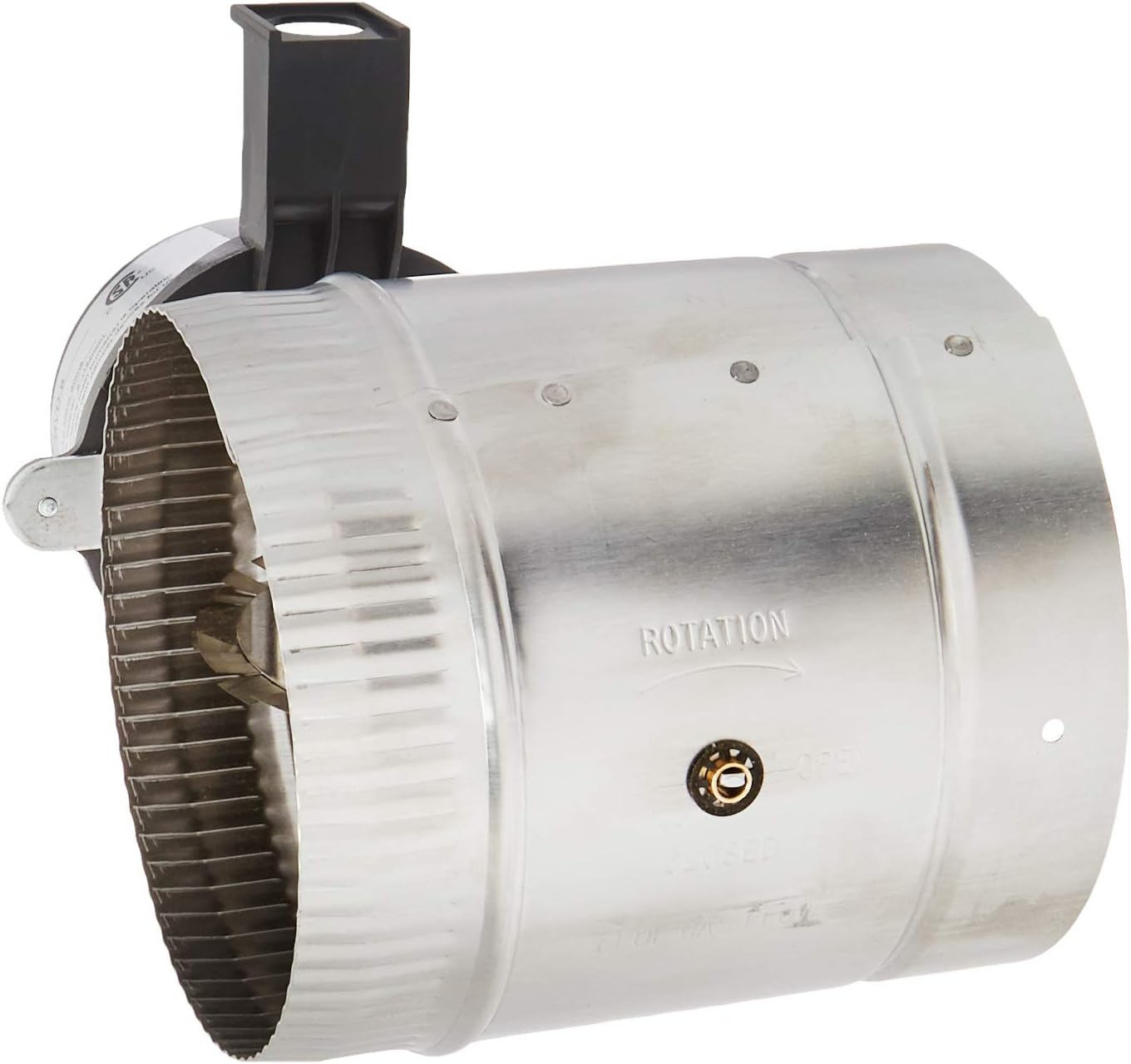

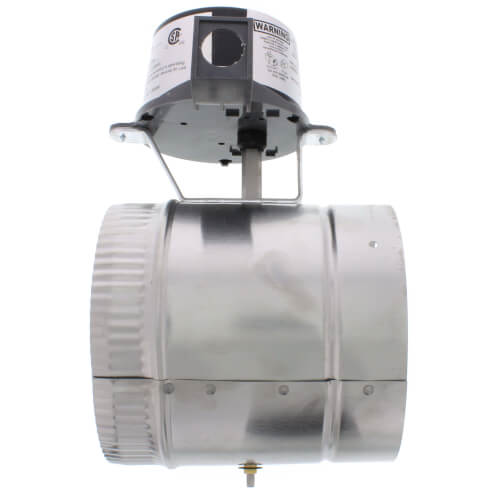

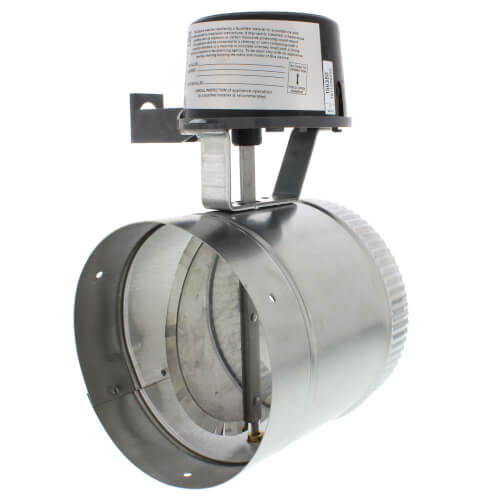

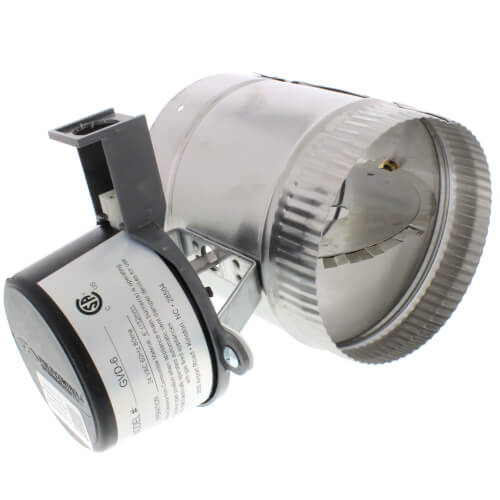

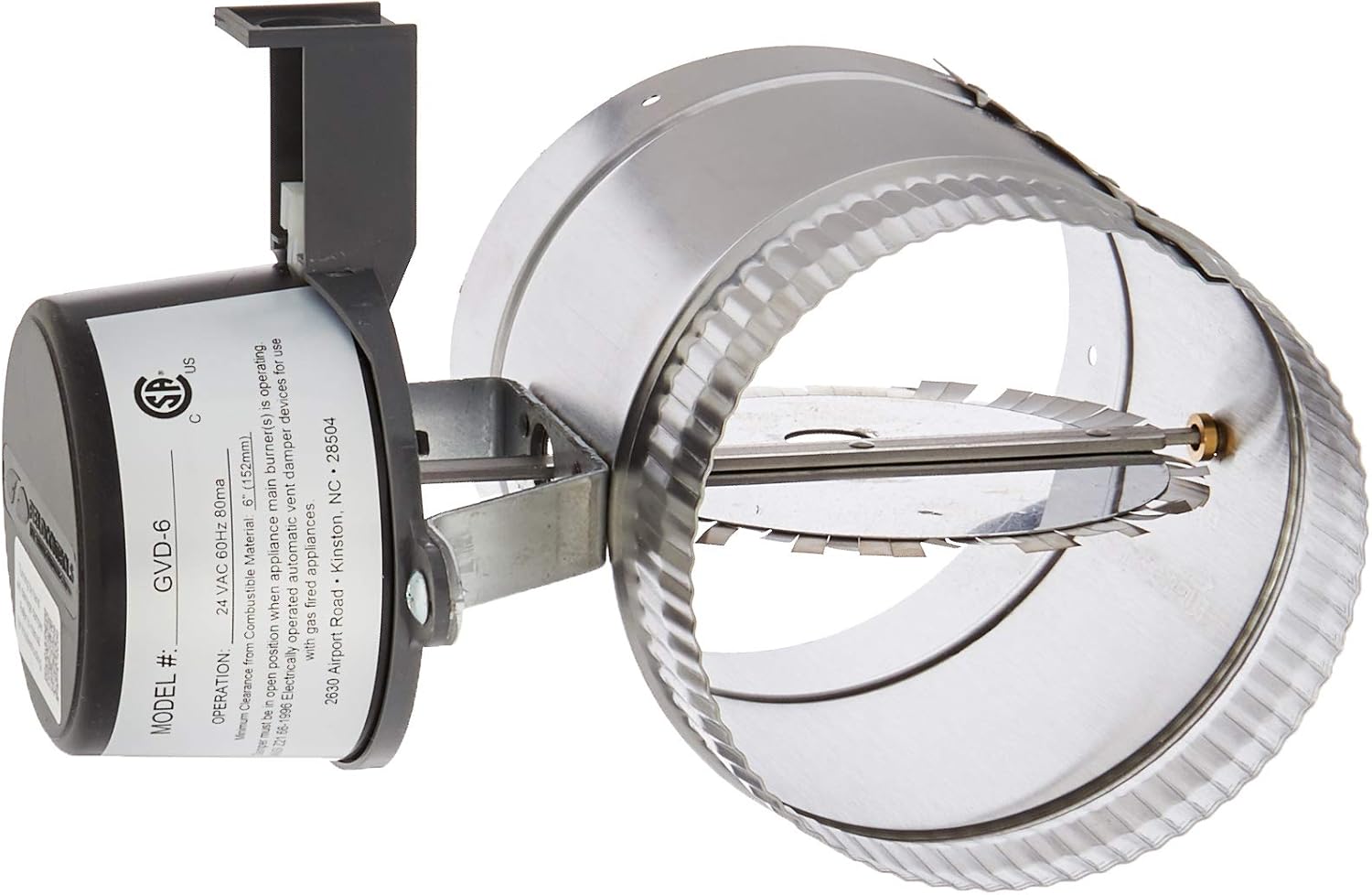

Field Controls GVD-6PL Gas Vent Damper 6 Inch Pipe Size 24V

Product Description

The Field Controls GVD-6PL Gas Vent Damper is an automatic damper designed for gas boilers. It comes in a six-inch pipe size and operates at 24V. The product is engineered to prevent residual heat and conditioned air from escaping during off cycles.

• Operates automatically to control natural draft
• Prevents cold air infiltration during down drafts
• Stainless steel construction for long-lasting use

Product Highlights

This damper includes dual safety switches that permit the burner to fire only when the damper is open. It functions with all 24 VAC, 60Hz intermittent ignition, and standing pilot ignition systems. Additionally, it can be locked in an open position for troubleshooting.

Product Information

Standard Information

• Manufacturer: Field Controls
• MPN: GVD-6PL
• Brand: Field Controls
• Item Weight: 2.4 pounds
• Dimensions: 12 x 12 x 12 inches

Technical Specifications

• Pipe Size: 6 inches
• Voltage: 24V
• Exposed Pipe Length: 5.25 inches
• Time to Open: 15 seconds
• Time to Close: 15 seconds
• Clearance: 1.19 inches
• Application: Gas boiler
