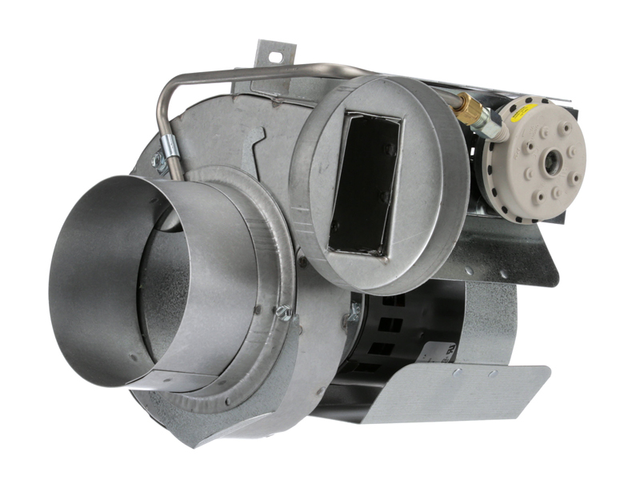

FIELD CONTROLS FIELD-PVG-300 Power Venter

Product Description

The FIELD CONTROLS FIELD-PVG-300 Power Venter is suitable for sidewall venting of a single twenty-four VAC controlled furnace, boiler, or water heater that uses natural or LP gas. This unit can also vent a single twenty-four VAC controlled gas-fired furnace or boiler, along with a thirty millivolt residential gas-fired water heater.

The power venter operates at one hundred fifteen volts, sixty hertz, and two point one amps, consuming one hundred forty-five watts with a motor speed of three thousand RPM.

• Maintains 100% negative pressure in the vent pipe.
• Compatible with standard galvanized pipe.
• Eliminates the need to seal vent pipe joints.

Product Highlights

This reliable venter maintains optimal vent conditions, improving efficiency and safety.

Product Information

Standard Information

• Vendor Name: Field Controls
• Model: PVG-300

Technical Specifications

• Dimensions (ins.) H (height): 7.5
• Dimensions (ins.) W (width): 9.25
• Dimensions (ins.) D (depth): 7
• Inlet / Outlet: 4
• Voltage: 115
• Hz: 60
• Amps: 2.1
• Watts: 145
• RPM: 3000
• Thermal Protection: Yes
