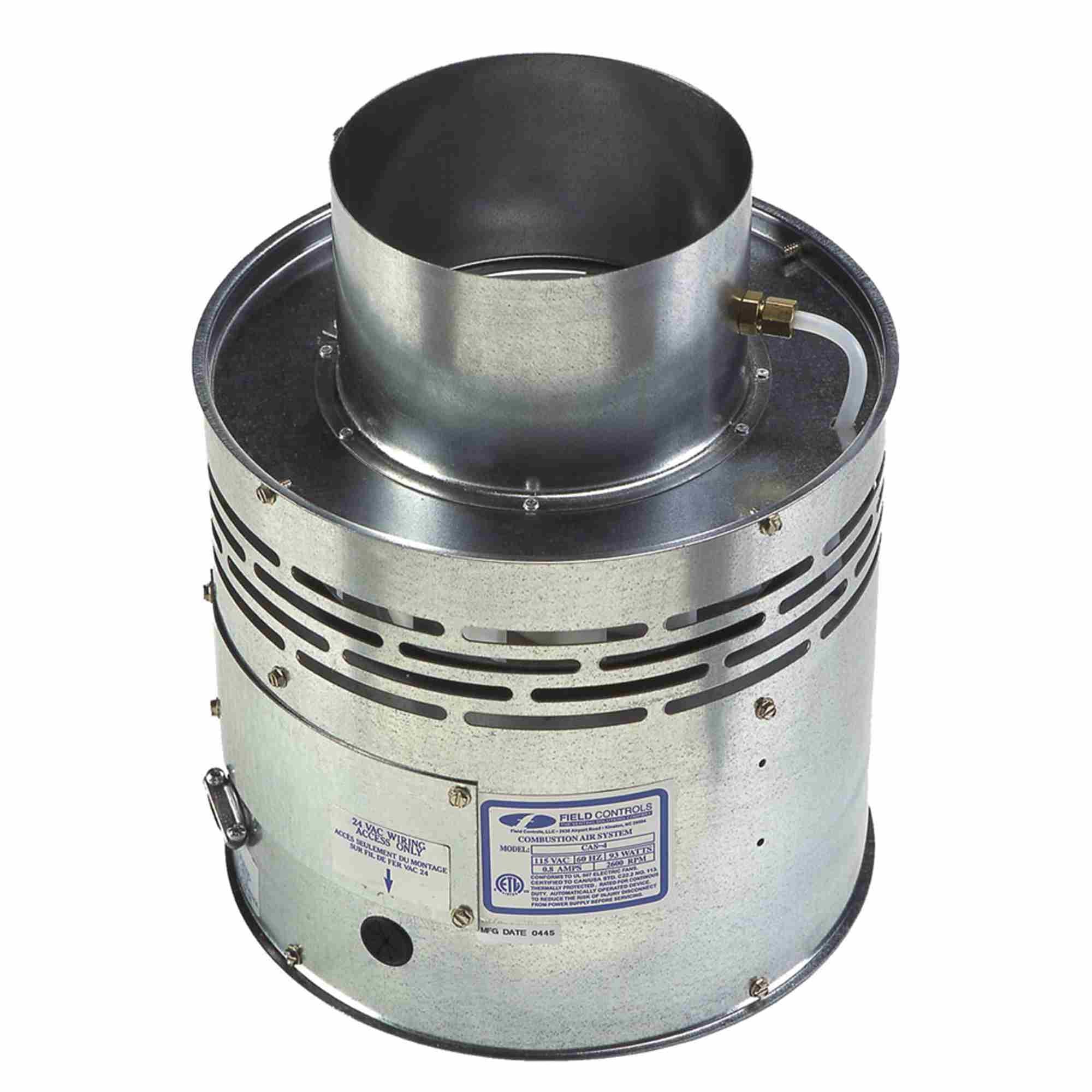

Field Controls CAS-6 Fan In A Drum Combustion Air System 900,000 BTU

Product Description

The Field Controls CAS-6 Fan In A Drum Combustion Air System is engineered to ensure optimal air intake for gas or oil-fired appliances. This system accommodates up to 900,000 BTU and is ideal for use with furnaces, water heaters, and boilers.

• Suitable for gas or oil-fired appliances
• Supports up to 900,000 BTU
• ETL listed for safety and compliance

Product Highlights

The Field Controls CAS-6 system draws air into a structure and delivers it near the combustion air intake of an appliance. It works with control systems operating at 24 VAC or 120 VAC, including millivolt water heaters and multiple appliances.

Product Information

Standard Information

• Brand: Field Controls
• MPN: CAS-6

Technical Specifications

• Maximum Appliance BTU: 910,000 BTU
• Maximum Airflow: 900 cfm
• Voltage: 115 V
• Amps: 5.0 A
• Inlet Diameter: 8 in
• Outlet Diameter: 8 in
• Overall Length: 14 in
• Overall Width: 15 1/2 in
• Overall Height: 19 1/2 in
