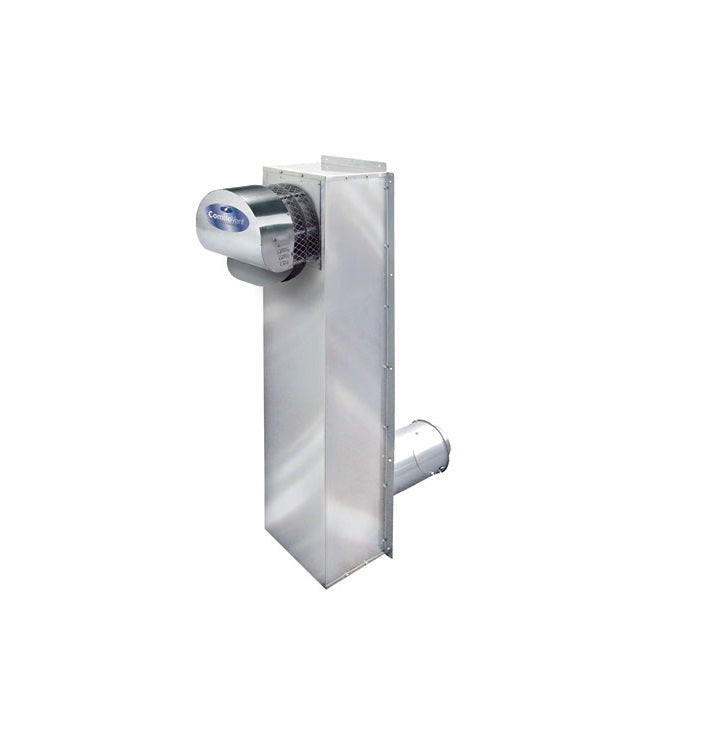

Field Controls 46562501 CV-4VR Vent Riser Power Venter

Product Description

The Field Controls CV-4VR Vent Riser Power Venter, MPN 46562501, is ideal for applications needing added ground clearance. It is suitable for basement setups or when vent terminals require a minimum distance above grade. The unit is constructed from stainless steel and is equipped with a combustion air inlet for burner connection, along with a rotating combustion air connection for flexible installation. It supports natural gas, LP gas, and #2 fuel oil appliances.

• Ensures vent termination is above grade.
• Features stainless steel construction.
• Includes thermal protection.

Product Highlights

This vent riser provides effective ventilation solutions for various heating applications.

Product Information

Standard Information

• Model: CV-4VR
• Part Number: 46562501

Technical Specifications

• Inlet Size: 4 inches
• Input Voltage: 115 Volt
• Frequency: 60 Hz
• Input Current: 1.7 Amp
• Power Consumption: 138 Watt
• RPM: 3000 RPM
• Material: Stainless Steel
• Thermal Protection: Yes
• Dimension A: 42 1/16 inches
• Dimension B: 33 1/2 inches
• Dimension C: 17 3/4 inches
• Dimension D: 9 inches
• Dimension E: 6 3/8 inches
• Dimension F: 44 inches
• Dimension G: 10 1/2 inches
• Dimension H: 12 1/2 inches
