Fibre-metal 69029109140 45 Deg Sw Elbow 3/4 in 3000 Lb Carbon Steel

Product Description

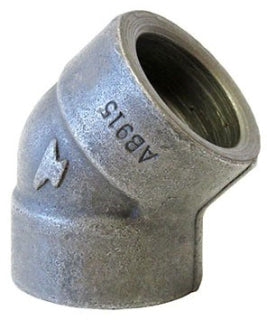

The FIBRE-METAL 69029109140 is a forged carbon steel 45-degree socket weld elbow fitting rated for 3000 lb pressure service. Sized at 3/4 inch nominal with a 1.071-inch OD, it is manufactured to SCH 80/XH schedule and designed for high-pressure piping systems where directional changes at 45 degrees are required. The socket weld end style allows the pipe to be inserted into the fitting socket before welding, creating a secure, leak-resistant joint. This fitting is domestically manufactured and suited for installation by licensed pipefitters and plumbers working in industrial, commercial, or mechanical piping systems.

This elbow fitting is used in high-pressure carbon steel pipe assemblies requiring a 45-degree change in flow direction. Typical applications include industrial process piping, steam systems, compressed air lines, and hydraulic or fluid service lines where SCH 80/XH schedule pipe and 3000 lb class fittings are specified. The socket weld configuration is common in smaller-diameter, high-pressure runs where threaded fittings are not preferred and butt weld fittings are impractical.

Key Features

• 45-degree elbow geometry for moderate directional changes in tight piping runs
• Socket weld end style for clean, strong joints on small-diameter high-pressure pipe
• 3000 lb pressure class rated for demanding service conditions
• SCH 80/XH schedule rating compatible with heavy-wall pipe
• Forged carbon steel construction for consistent grain structure and mechanical strength
• Domestically manufactured

Compatibility

Designed as an OEM-style forged carbon steel socket weld fitting for 3/4 inch nominal, SCH 80/XH schedule piping systems rated at 3000 lb pressure class.

Installation Notes

Installation should be performed by a qualified pipefitter or welder in accordance with applicable codes such as ASME B31.1 or B31.3 for pressure piping. Depressurize and drain the system completely before cutting into any existing line. The socket weld joint requires the pipe to be inserted fully into the socket and then pulled back approximately 1/16 inch before tack welding to allow for thermal expansion during the weld pass. Do not apply pressure to the system until all welds have been inspected and the system has been properly tested per project specifications.

Technical Specifications

• Nominal Size: 3/4 inch
• Fitting Type: 45 Degree Elbow
• End Style: Socket Weld
• Pressure Class: 3000 lb
• Schedule Rating: SCH 80/XH
• OD Dimensions: 1.071 inches
• Material: Carbon Steel
• Method of Manufacture: Forged
• Weight: 0.55 pounds
• Origin: Domestic

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029109140
