Fibre-metal 69029108958 45 Degree Elbow 1-1/2 in

Product Description

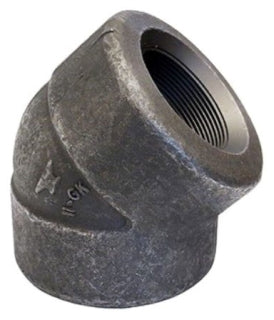

The FIBRE-METAL 69029108958 is a 1-1/2 inch 45-degree forged steel threaded elbow rated for 6000-pound service. Built for high-pressure piping systems, this fitting redirects flow at a 45-degree angle and connects via threaded ends. The forged steel construction delivers the strength and wall thickness required for demanding industrial and commercial applications. Licensed pipefitters and plumbers install this class of fitting where system pressure ratings demand a heavier schedule than standard 3000-pound or socket-weld fittings can provide.

This elbow is suited for high-pressure steam, hydraulic, gas, and process piping systems in industrial plants, refineries, commercial mechanical rooms, and similar installations. The 1-1/2 inch size fits common branch and main line configurations where directional changes must be made without reducing pressure capacity. The 45-degree geometry produces less turbulence and lower pressure drop compared to a 90-degree elbow in the same line.

Key Features

• 1-1/2 inch nominal pipe size for compatibility with standard NPT threaded connections
• 6000-pound pressure class for high-pressure service applications
• 45-degree turn geometry reduces flow turbulence compared to 90-degree fittings
• Forged steel construction provides high strength and uniform wall thickness
• Threaded end connections allow installation without welding equipment

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch NPT threaded high-pressure forged steel piping systems rated at 6000 pounds.

Installation Notes

Installation of high-pressure threaded fittings should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and piping codes. Depressurize and isolate the line completely before removing any existing fitting or making new connections. Apply an appropriate thread sealant or PTFE tape rated for the service medium and pressure class. Do not over-torque threaded connections, as this can crack forged fittings or damage thread engagement.

Technical Specifications

• Size: 1-1/2 inches
• Pressure Class: 6000 lb
• Angle: 45 degrees
• Connection Type: Threaded (NPT)
• Material: Forged Steel

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108958
