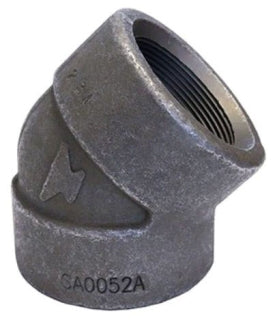

Fibre-metal 69029108832 45 Degree Elbow 1/2 in 3000lb

Product Description

The FIBRE-METAL 69029108832 is a 1/2 inch 45 degree forged steel threaded elbow rated for 3000-pound service. Built to A105 carbon steel specification, this fitting redirects piping flow at a 45 degree angle in high-pressure threaded piping systems. The screwed end connections accept standard NPT pipe threads, making installation straightforward without welding equipment. Designed for demanding industrial and mechanical piping applications, this elbow is a common component in steam, compressed air, hydraulic, and process piping assemblies. Plumbers, pipefitters, and mechanical contractors specify this class of fitting where pressure ratings and material certification matter.

This fitting is suited for commercial and industrial piping systems operating under elevated pressure conditions. The 3000-pound pressure class and A105 forged carbon steel construction make it appropriate for steam distribution, compressed air headers, oil and gas process lines, and similar high-pressure mechanical systems. The 1/2 inch size fits into tight spaces and branch connections where directional change is needed without a full 90 degree turn. Pipefitters and licensed plumbers handle installation in accordance with applicable piping codes.

Key Features

• 1/2 inch nominal pipe size with screwed NPT end connections
• 3000-pound pressure class for high-pressure service applications
• A105 forged carbon steel construction for strength and durability
• 45 degree angle change reduces turbulence compared to 90 degree elbows
• Threaded ends allow tool-only installation without welding

Compatibility

Designed as an OEM-style replacement or new-installation forged steel threaded fitting for 1/2 inch NPT piping systems rated at 3000-pound pressure class.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber following applicable code requirements such as ASME B31.1, B31.3, or local mechanical codes. Depressurize and isolate the piping system completely before removing or installing any threaded fitting. Apply appropriate pipe thread sealant or PTFE tape to male threads before assembly, and tighten to proper engagement using a pipe wrench. Do not over-torque threaded connections, as this can crack the fitting body or damage threads.

Technical Specifications

• Size: 1/2 inch
• Angle: 45 degrees
• Pressure Class: 3000 lb
• Material: Forged Carbon Steel A105
• End Connection: Threaded (Screwed NPT)

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108832
