Fibre-metal 69029108829 45 Degree Elbow 1/8 in 3000lb

Product Description

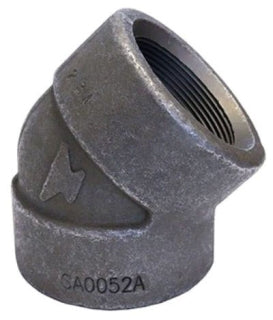

The FIBRE-METAL 69029108829 is a 1/8 inch forged steel 45 degree elbow rated for 3000-pound pressure class service. Manufactured to A105 carbon steel material specifications, this fitting is designed for threaded (screwed) connections and is used to redirect piping at a 45 degree angle in high-pressure systems. The compact 1/8 inch size suits instrument lines, small-bore process piping, and utility connections where space is limited and pressure integrity is essential. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in industrial, commercial, and process piping applications.

This elbow is suited for small-bore threaded piping systems operating under elevated pressure conditions. The 3000-pound pressure class rating makes it appropriate for steam, gas, oil, water, and air service in industrial plants, refineries, commercial mechanical rooms, and similar environments. The forged A105 construction is a recognized standard for carbon steel pipe fittings used in pressure piping across a wide range of process and utility applications.

Key Features

• 45 degree elbow geometry for moderate-angle direction changes in threaded piping runs
• 1/8 inch pipe size for small-bore instrument and utility connections
• 3000-pound pressure class rating suitable for high-pressure service
• Forged A105 carbon steel construction meeting recognized material standards
• Threaded (screwed) end connections for tool-based field assembly without welding

Compatibility

Designed as an OEM-style replacement and standard forged steel threaded fitting compatible with 1/8 inch NPT threaded piping systems rated for 3000-pound pressure class service.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as ASME B31.1 or B31.3 for pressure piping. Isolate and depressurize the system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to male threads before assembly and tighten fittings with pipe wrenches to a secure, leak-free engagement. Do not overtighten, as this can crack forged fittings or damage threads.

Technical Specifications

• Size: 1/8 inch
• Pressure Class: 3000 lb
• Material: Forged Carbon Steel, A105
• Connection Type: Threaded (Screwed)
• Fitting Type: 45 Degree Elbow

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108829
