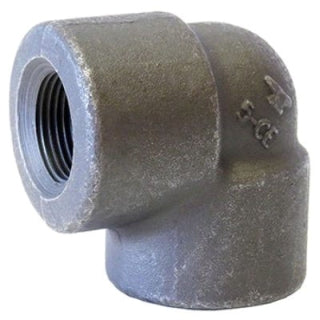

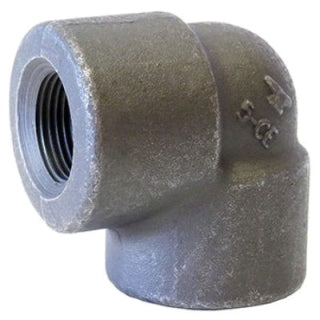

Fibre-metal 69029108815 90 Degree Elbow 1-1/2 in

Product Description

The FIBRE-METAL 69029108815 is a 1-1/2 inch, 3000-pound class forged steel threaded 90-degree elbow conforming to ASTM A105 material specification. This fitting changes pipe direction by 90 degrees in high-pressure threaded piping systems. It is designed for use in industrial and commercial piping installations where forged steel construction and pressure-rated fittings are required. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in steam, hydronic, gas, and oil service lines where threaded connections are specified by the design engineer or job scope.

This elbow is suited for 3000-pound class threaded piping systems in industrial plants, commercial mechanical rooms, and process piping applications. The A105 carbon steel material makes it appropriate for moderate- to high-pressure service in non-corrosive or mildly corrosive environments. It is installed wherever a full 90-degree directional change is needed in a 1-1/2 inch threaded steel pipe run.

Key Features

• 90-degree elbow configuration for full right-angle direction changes in steel pipe runs
• 1-1/2 inch nominal pipe size with NPT threaded end connections
• 3000-pound pressure class for high-pressure threaded piping service
• Forged steel (FS) construction for strength and durability in demanding service conditions
• ASTM A105 carbon steel material specification for pressure piping components

Compatibility

Designed as an OEM-style forged steel threaded fitting for use with 1-1/2 inch NPT schedule pipe in 3000-pound class threaded piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes such as the International Plumbing Code or ASME B31.3 process piping standards. Shut down and depressurize the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to the fitting manufacturer's standard engagement depth using a pipe wrench. Do not over-torque threaded joints, as this can crack forged fittings or damage threads.

Technical Specifications

• Nominal Pipe Size: 1-1/2 inches
• Pressure Class: 3000 lb
• End Connection: Threaded (NPT)
• Material: Forged Steel (A105 Carbon Steel)
• Material Specification: ASTM A105
• Fitting Type: 90 Degree Elbow

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108815
