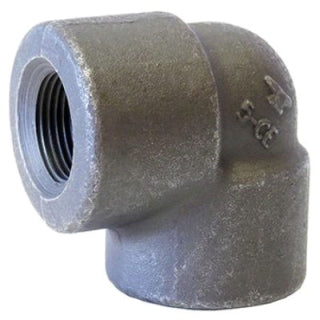

Fibre-metal 69029108810 90 Degree Elbow 3/8 in

Product Description

The FIBRE-METAL 69029108810 is a 3/8 inch, 3000-pound class forged steel threaded 90 degree elbow conforming to ASTM A105 carbon steel material standards. This fitting is designed to redirect piping flow at a 90 degree angle in high-pressure threaded pipe systems. The full socket (FS) threaded end configuration allows direct connection to standard NPT threaded pipe. Licensed pipefitters and plumbers install this fitting in process, industrial, and mechanical piping systems where a rated forged steel connection is required.

This elbow is suited for use in high-pressure threaded piping applications across industrial, commercial, and mechanical systems. The 3000-pound pressure class makes it appropriate for steam, hydraulic, gas, and fluid service lines where carbon steel construction is specified. The 3/8 inch pipe size fits branch and instrument lines, control tubing connections, and small-bore process piping runs.

Key Features

• 3000-pound pressure class forged steel construction for high-pressure service
• ASTM A105 carbon steel material meets common industrial piping specifications
• Full socket (FS) threaded ends for standard NPT threaded pipe connections
• 90 degree turn geometry for direct right-angle directional changes in piping runs
• 3/8 inch pipe size suits small-bore process, instrument, and branch line applications

Compatibility

Designed as an OEM-style replacement or new-installation forged steel threaded fitting for 3/8 inch NPT threaded piping systems rated for 3000-pound class service.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and piping codes. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male NPT threads before makeup, and tighten to the system specification using properly sized pipe wrenches. Avoid over-torquing threaded connections on forged fittings, which can cause thread damage or fitting failure.

Technical Specifications

• Pipe Size: 3/8 inches
• Pressure Class: 3000 lb
• End Connection: Full Socket (FS) Threaded NPT
• Fitting Angle: 90 degrees
• Material: Forged Carbon Steel ASTM A105

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108810
