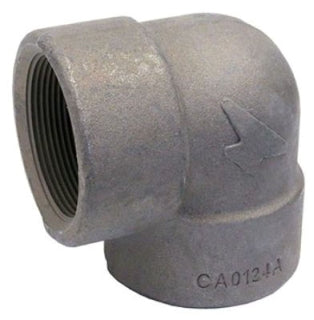

Fibre-metal 69029108768 90 Degree Elbow 1-1/4 in 2000 Lb

Product Description

The FIBRE-METAL 69029108768 is a forged steel threaded 90-degree elbow rated for 2000 lb service, sized at 1-1/4 inches. Built to ASTM A105 carbon steel specifications, this fitting is designed for high-pressure piping systems where a right-angle direction change is required. The threaded end connections allow for tool-assisted assembly without welding, making it a practical choice in retrofit and maintenance work. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in steam, gas, oil, and high-pressure water systems where forged carbon steel construction is required by code or specification.

This elbow is suited for industrial and commercial piping installations where 2000 lb class forged steel fittings are specified. Typical applications include process piping, boiler rooms, mechanical rooms, and anywhere a durable threaded carbon steel fitting is needed to navigate around structural or equipment obstacles. The 1-1/4-inch size fits standard pipe of that nominal diameter, conforming to NPT threading conventions.

Key Features

• 90-degree elbow geometry for right-angle direction changes in threaded piping runs
• 2000 lb pressure class forged steel construction for high-pressure service
• ASTM A105 carbon steel material for strength and temperature resistance
• 1-1/4-inch nominal size with threaded end connections
• No-weld installation compatible with standard NPT threaded pipe

Compatibility

Designed as an OEM-style replacement or new-install forged steel threaded fitting for 1-1/4-inch nominal pipe in 2000 lb class threaded piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes such as the IPC or IFGC. Shut down and depressurize the piping system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to the male threads before assembly, and tighten using a pipe wrench to achieve a proper seal without over-stressing the fitting. Verify system pressure rating before returning the line to service.

Technical Specifications

• Size: 1-1/4 inches
• Pressure Class: 2000 lb
• Material: Forged Carbon Steel, ASTM A105
• End Connection: Threaded (Screwed)
• Fitting Type: 90 Degree Elbow

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108768
