Fibre-metal 69029108763 90 Degree Elbow 1/4 in Forged Steel

Product Description

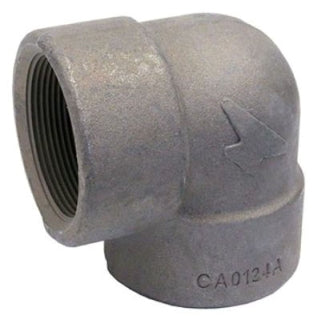

The FIBRE-METAL 69029108763 is a 1/4 inch, 2000 lb-rated forged steel 90 degree threaded elbow conforming to ASTM A105 carbon steel material standards. This fitting redirects pipe flow at a right angle and is designed for use in high-pressure threaded piping systems. The A105 forged steel construction provides reliable mechanical strength suitable for demanding industrial and commercial service conditions. Screwed end connections allow for straightforward installation without welding equipment. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers for this class of fitting.

This 90 degree elbow is suited for use in compressed air, steam, water, oil, and gas piping systems where a 2000 lb pressure-class threaded connection is specified. The 1/4 inch size makes it appropriate for smaller branch lines and instrumentation takeoffs. It is commonly installed in industrial facilities, commercial mechanical rooms, and process piping applications where ASME B16.11 forged fittings are standard practice.

Key Features

• 1/4 inch nominal pipe size with screwed (threaded) end connections
• 2000 lb pressure class rating for high-pressure service
• ASTM A105 forged carbon steel construction
• 90 degree turn geometry for right-angle pipe routing
• Threaded ends eliminate the need for welding during installation

Compatibility

Designed as an OEM-style replacement or standard component for 1/4 inch threaded piping systems requiring a 2000 lb class forged steel 90 degree elbow per ASTM A105 material specification.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including ASME B31.1 or B31.3 as applicable to the system. Isolate and depressurize the piping system fully before removing or installing threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten threaded connections, as this can crack forged fittings or damage threads.

Technical Specifications

• Size: 1/4 inch
• Pressure Class: 2000 lb
• Material: Forged Carbon Steel, ASTM A105
• End Connection: Threaded (Screwed)
• Fitting Type: 90 Degree Elbow

Standard Information

• Brand: FIBRE-METAL
• Manufacturer Part Number: 69029108763
