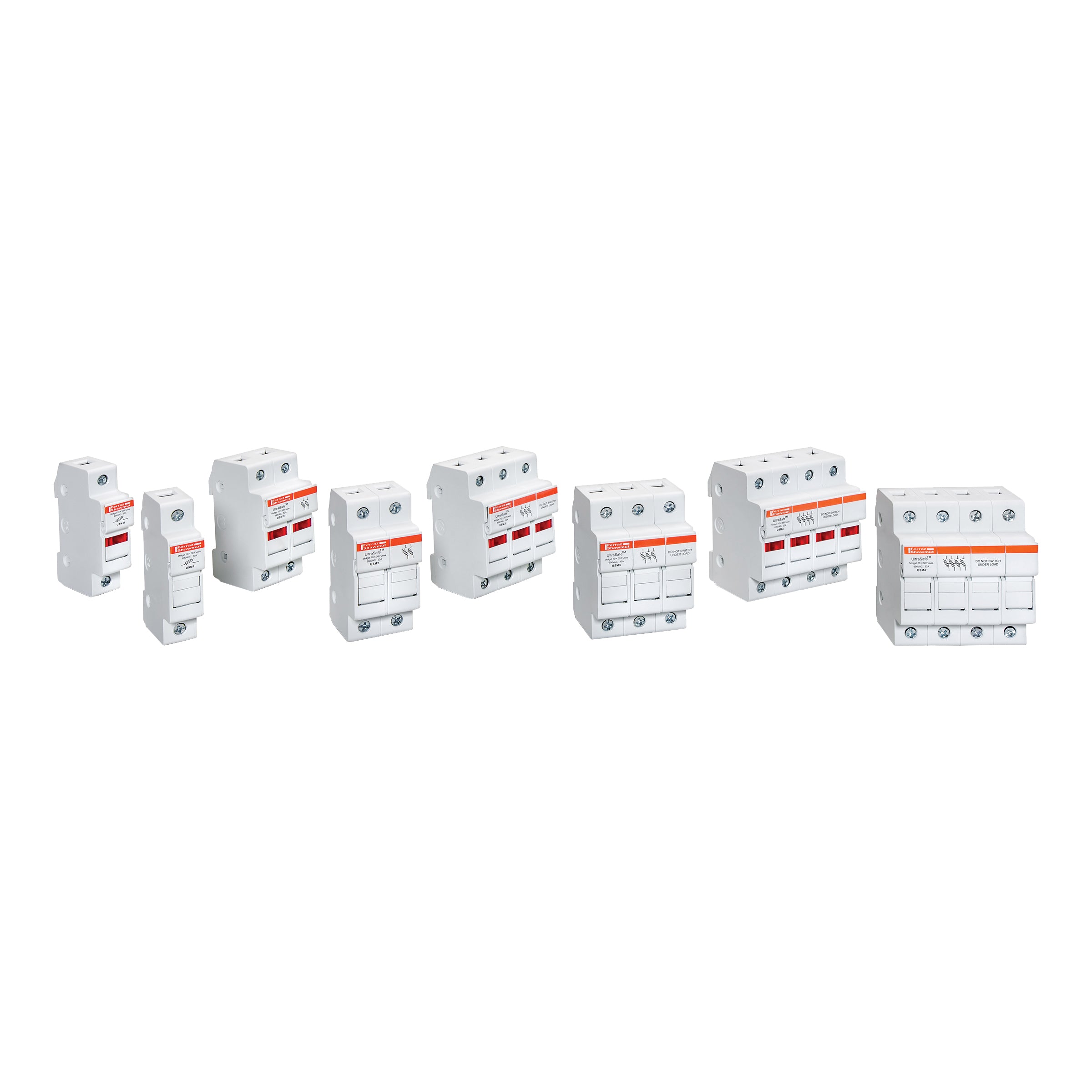

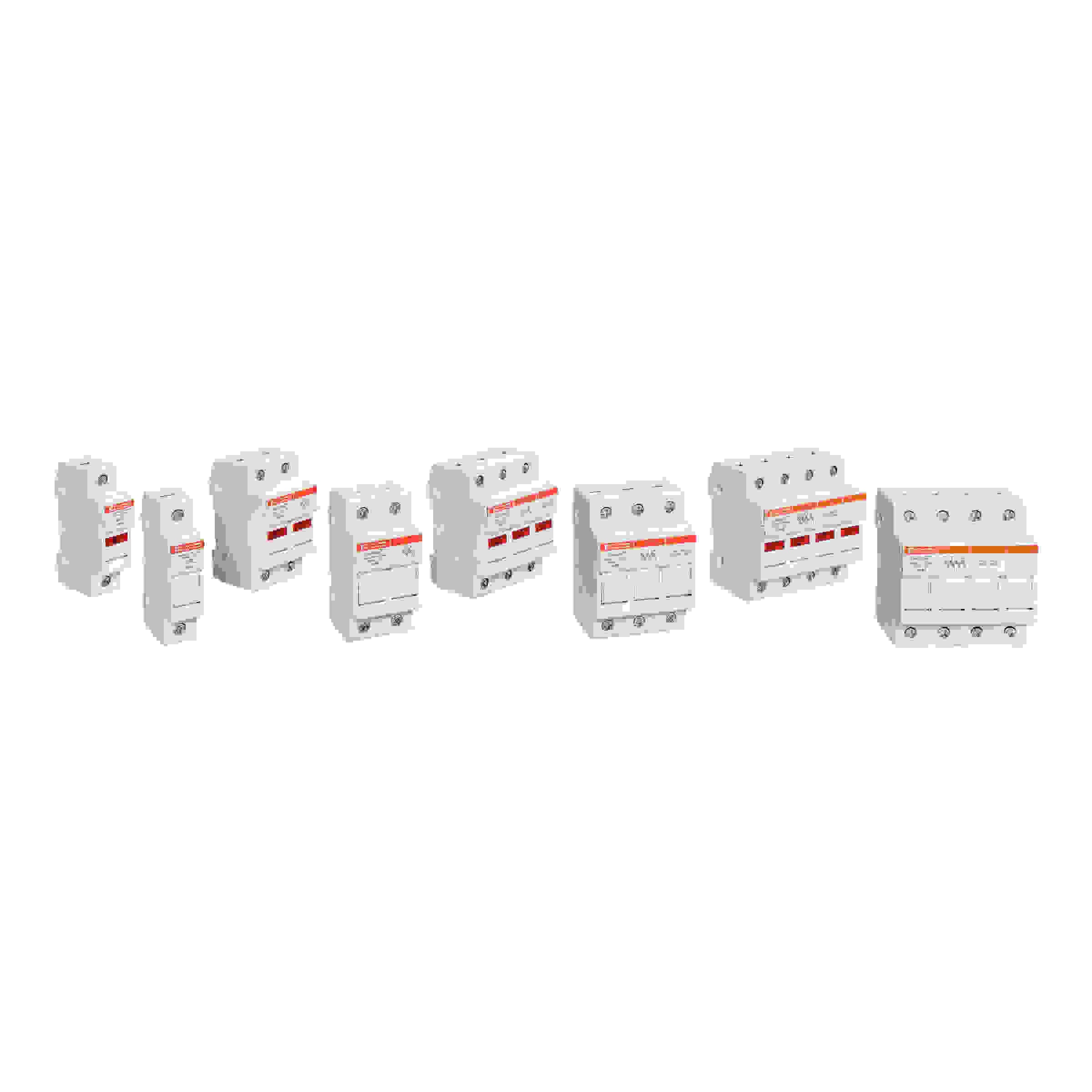

Ferraz Shawmut USN UltraSafe Fuse Holder

Product Description

The Ferraz Shawmut USN UltraSafe Fuse Holder is built for Class CC and Midget fuses sized one and one-half inches by thirteen thirty-seconds of an inch, handling up to thirty amps. It ensures a finger-safe design that complies with IEC and DIN standards, providing an IP20 level of protection. The robust polyamide body allows for versatility on both AC and DC circuits. This holder fits wire sizes ranging from fourteen to six AWG and is designed for easy mounting on DIN rails.

• Accommodates fuses measuring one and one-half inches in length and thirteen thirty-seconds of an inch in diameter.
• Offers finger-safe protection with an IP20 rating.
• Engineered for simple DIN-rail installation.

Product Highlights

The USN fuse holder is ideal for professionals seeking reliable circuit protection solutions.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: USN

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Rated Voltage DC UL: 1000 V
• Fuse Class: Midget
• Fuse Length: 1.5 inches
• Fuse Diameter: 0.406 inches
• Number Of Poles: 1
• Mounting Type: DIN Rail
• Wire Size: 14 to 6 AWG
• Enclosure Rating: IP20
• Material: Polyamide
• Operating Temperature: -40 to 85 degrees Celsius
• Length: 3.07 inches
• Width: 0.69 inches
• Height: 2.32 inches
• Standards: UL 4248-14 File No. E52283 CSA C22.2 Class 6225/32169 IEC 60269-2-1/60947-3
• Suitable For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M and HP10M Series Fuse
• Short Circuit Current Rating (SCCR): 100 kA
• Frequency: 50/60 Hz
