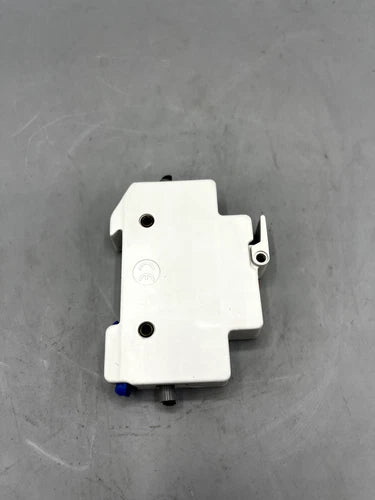

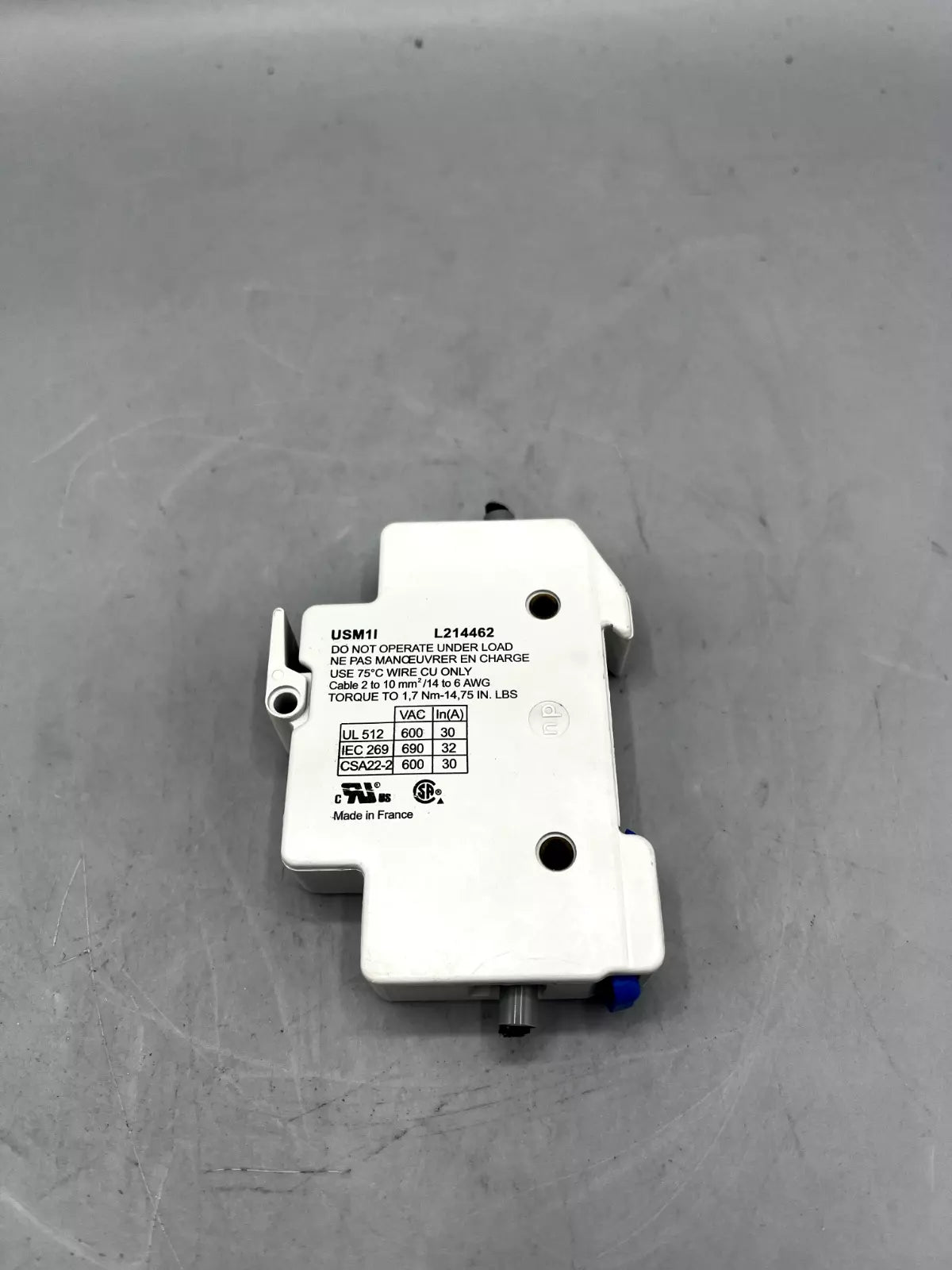

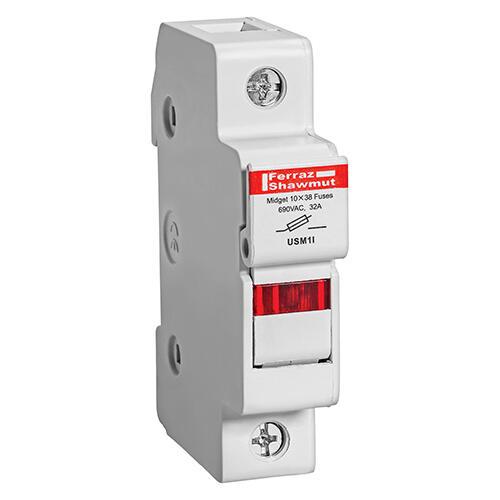

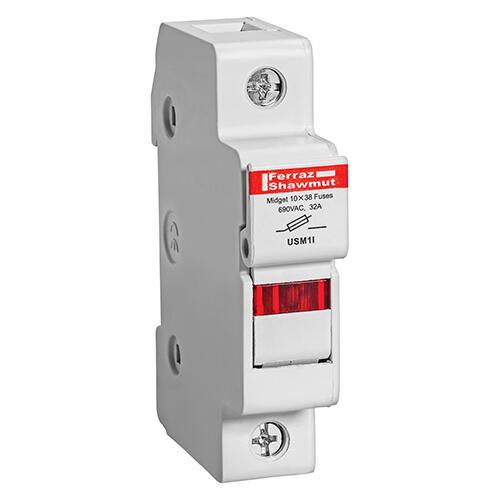

Ferraz Shawmut USM1I Fuse Holder

Product Description

The Ferraz Shawmut USM1I is a modular fuse holder configured for midget fuses, designed to safely manage electrical connections. This fuse holder supports both AC and DC rated fuses up to thirty amps. It also features a one-pole setup and is built from a strong polyamide material, ensuring durability and reliability in various applications.

• Accommodates midget fuses up to 30A
• Features a one-pole design with visual LED indicator
• DIN rail mountable for easy installation

Product Highlights

The USM1I is an ideal choice for industrial settings and offers an IP20 rating for protection, ensuring dependable operation in various environments.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: USM1I

Technical Specifications

• Voltage Rating: 600 V
• Current Rating: 30 A
• Fuse Type: Midget
• Number of Poles: 1
• Mounting Type: DIN Rail
• Enclosure Rating: IP20
• Material: Polyamide
• Frequency: 50/60 Hz
• Wire Size: #6 to #14 Solid or Stranded
• Torque Rating: 15 lb-in
• Short Circuit Current Rating (SCCR): 100 kA
• Indication System: Yes
• Indication System Type: LED
• Product Length: 3.07 in
• Product Width: 0.69 in
• Product Height: 2.32 in
• Weight: 0.14 lb
• Fuse Installation Method: Clip-in
• Standards: IEC, DIN
• Certifications: UL512, CSA C22.2, IEC 269, RoHS Compliant
