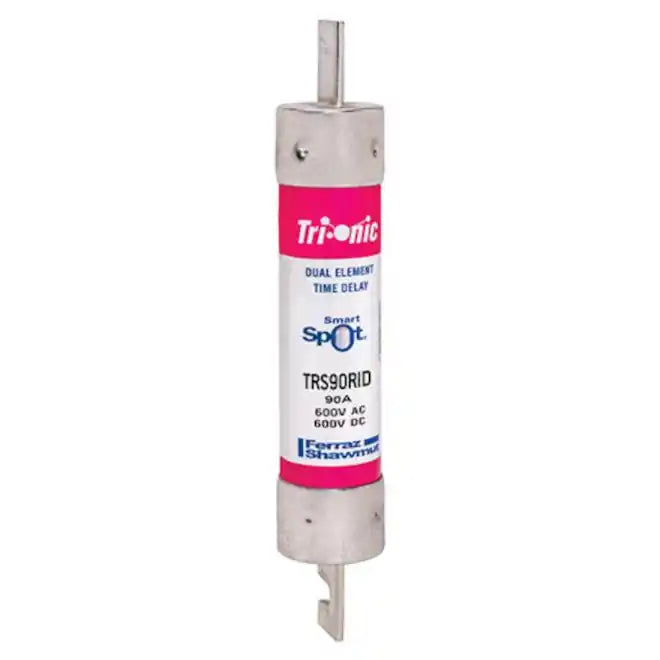

Ferraz Shawmut TRS90RID Fuse TRS Series 90A

Product Description

The Ferraz Shawmut TRS90RID is a fuse designed for overcurrent protection in motors and transformers, as well as service entrance equipment and circuit applications. As a Class RK5 time-delay fuse, it effectively manages starting and inrush currents. This fuse comes with a Smart Spot indicator for easy blown fuse detection.

• Time-delay characteristics for effective start-up handling
• Current limiting capabilities to protect circuits
• Visual blown fuse indicator for quick reference

Product Highlights

This fuse is suitable for use in various electrical environments where reliable performance is required.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: TRS90RID

Technical Specifications

• Fuse Type: Class RK5
• Current Rating: 90 A
• AC Voltage: 600 VAC
• DC Voltage: 600 VDC
• Characteristic: Time Delay
• Interrupt Rating: 200 kA @ 600 V
• Trip Indicator: Yes
• Body Length: 7.88 inches
• Diameter: 1.32 inches
• Net Weight: 0.68 lbs
• Standards: CSA, UL
• Mounting Type: Clip
• Visual Indication: Indicating
• Body Style: Blade
• Country of Origin: Mexico
• Compatible Fuse Block Series: 2HKRFB, 6HKRFB
