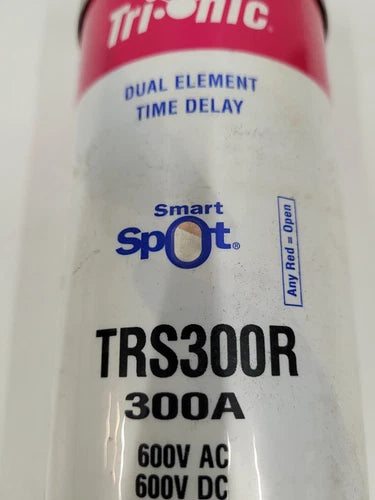

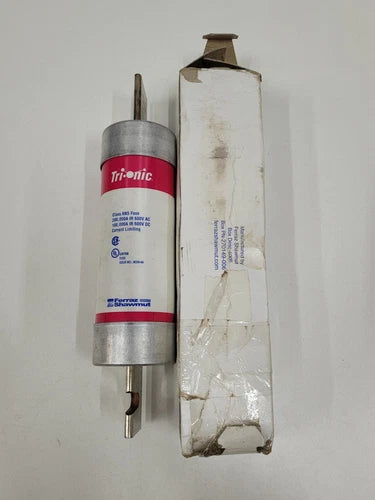

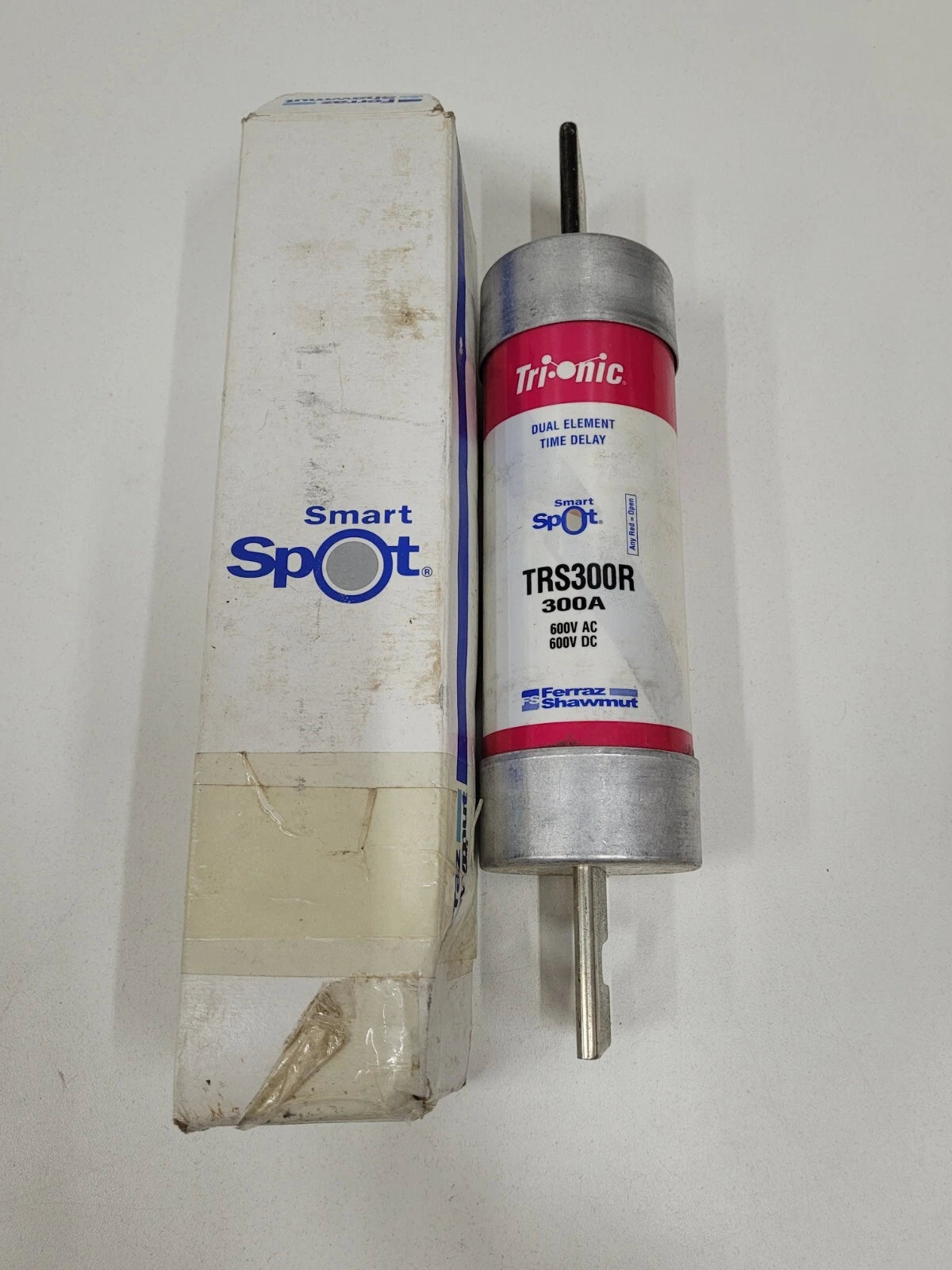

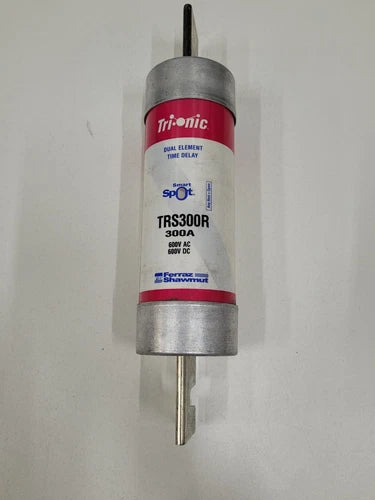

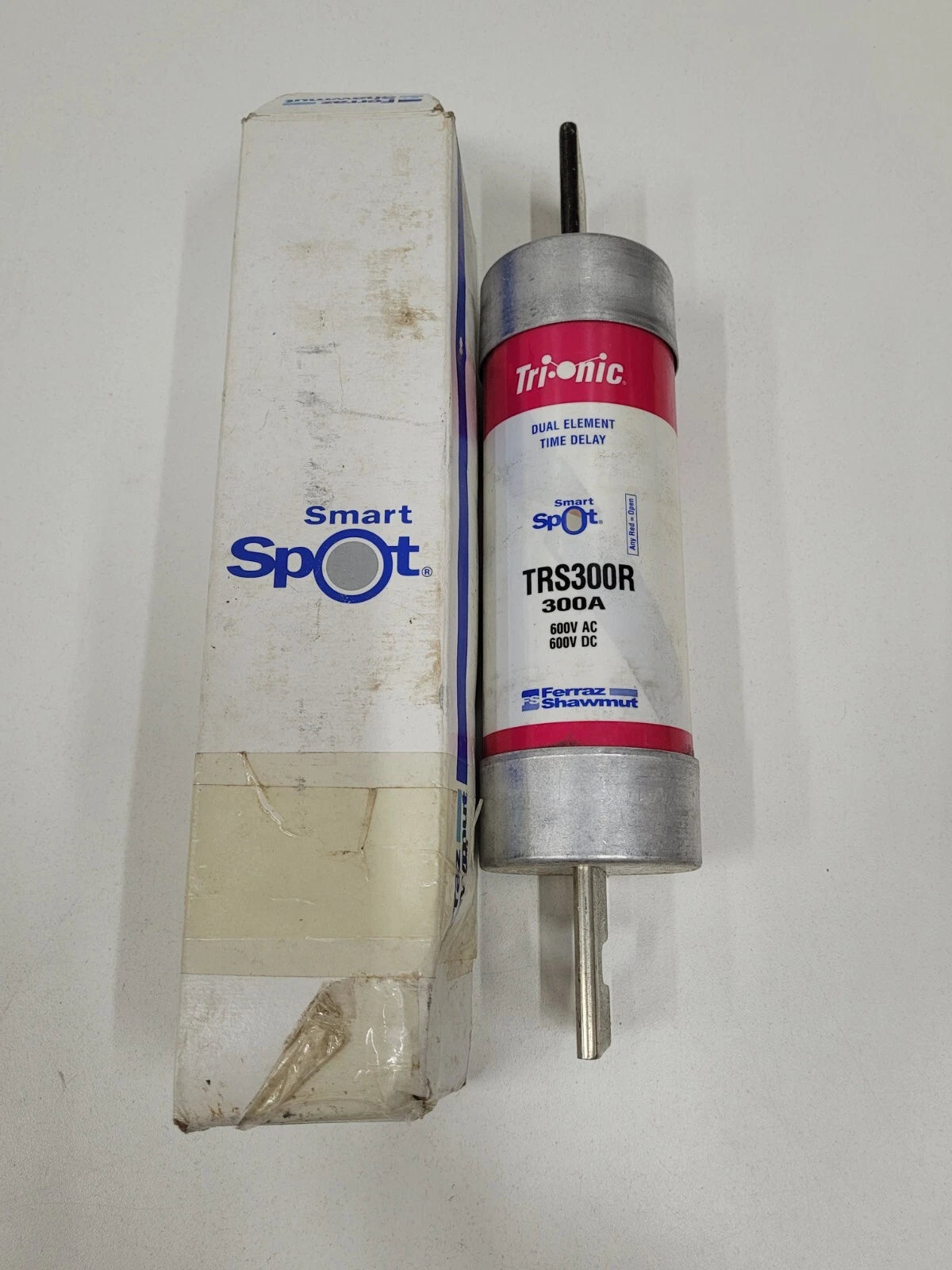

Ferraz Shawmut TRS300R Time Delay Fuse

Product Description

The Ferraz Shawmut TRS300R is a Class RK5 time-delay fuse that offers overcurrent protection across various applications. Designed to manage harmless starting and inrush currents associated with motors and transformers, this fuse is ideal for motor circuit protection, service entrance equipment, and feeder and branch circuits. It features a current-limiting design that minimizes peak let-through current and comes with a visual open fuse indicator.

• Time delay characteristic accommodates motor start-ups and transformer inrush currents.
• Current limiting design minimizes peak let-thru current.
• Rated for both AC and DC voltage applications.

Product Highlights

This Fuse supports safe operation in demanding environments while ensuring reliability for critical components.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• Series: TRS

Technical Specifications

• MPN: TRS300R
• UPC: 782001749231
• GTIN: 782001749231
• AC Voltage: 600VAC
• DC Voltage: 600VDC
• Interrupting Rating: 200kA I.R.
• Time Delay: Yes
• Current Limiting: Yes
• Amperage: 300 Ampere
• Terminal Type: Blade Terminal
• Diameter: 2-9/16 Inch
• Length: 11-5/8 Inch
• Approval: UL 198L, UL 248-12, CSA C22.2
