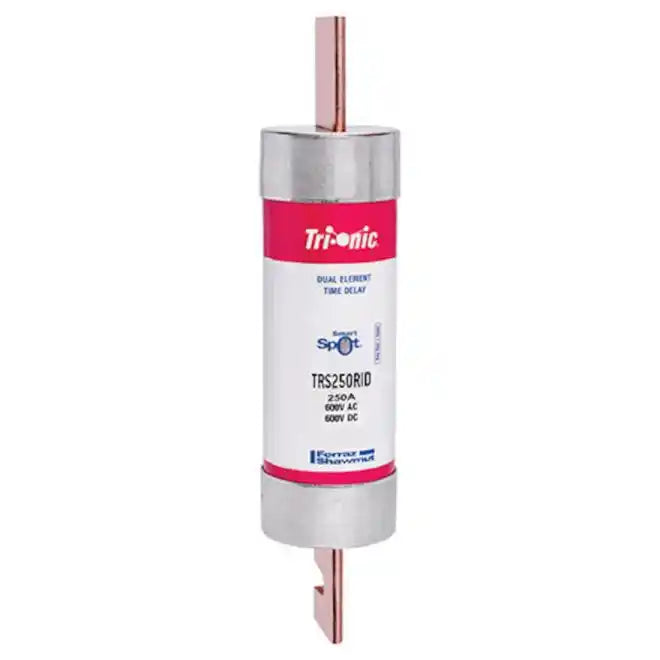

Ferraz Shawmut TRS250RID Fuse 250A 600V Class RK5

Product Description

The Ferraz Shawmut TRS250RID is a fuse rated at 250 amps and 600 volts. This Class RK5 fuse features a dual-element, time-delay design that limits current and is suitable for both AC and DC applications. The rejection-style construction helps to avoid replacement errors, making it a reliable choice for protecting motors, transformers, and electrical circuits.

• 250 amps current rating
• 600 volts AC and DC rated
• UL Class RK5 with time-delay characteristics

Product Highlights

This fuse is engineered for effective overcurrent protection.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• Application: Industrial

Technical Specifications

• AC Voltage Rating: 600 V
• DC Voltage Rating: 600 V
• Interrupting Rating: 200,000 AIC @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• Frequency: 50/60 Hz
• Ampere Rating: 250 A
• ROHS Compliant: Yes
• Fuse Class: Class RK5
• Speed/Characteristic: Time Delay
• Mounting: Clip
• Indication System: Yes
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 2.56 in
• Product Length: 11.63 in
• Body Material: PolyTube
• Product Series: TRS
• Short Circuit Current Rating: 200kA
• Height: 65 mm
• Width: 65 mm
• Depth: 296 mm
