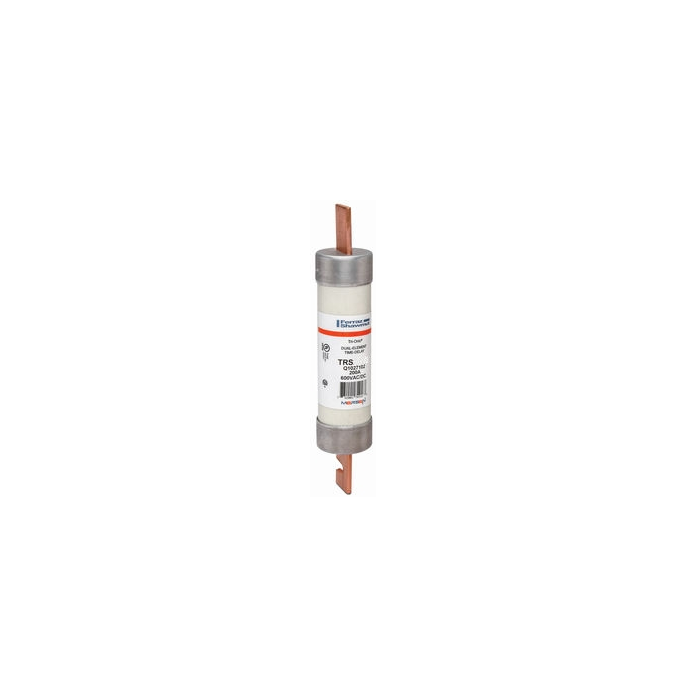

Ferraz Shawmut TRS200RID Fuse 200 Amp 600V Class RK5

Product Description

The Ferraz Shawmut TRS200RID is a fuse rated for 200 Amps and 600 Volts AC. This UL Class RK5 fuse features a dual-element, time-delay design that is both current limiting and rated for AC and DC applications. Its unique rejection-style design helps to prevent incorrect replacements, ensuring safety and reliability in various electrical systems.

• Time-delay feature for reliable performance
• Current limiting capabilities for AC and DC
• Rejection-style design reduces replacement errors

Product Highlights

This fuse is designed for use in motor circuits, branch circuits, transformers, and service entrance equipment.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: TRS200RID

Technical Specifications

• Amps: 200
• Volts AC: 600
• Class: RK5
• Indicating: Yes
• Element: Dual
• Time Delay: Yes
• Current Limiting: Yes
• Interrupting Rating: 200,000 AIC @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• Body Length: 9.63 inches
• Diameter: 1.82 inches
• Manufacture Country: MX
• Fuse Type: UL Class RK5
• Approval: UL 248-12, CSA C22.2
