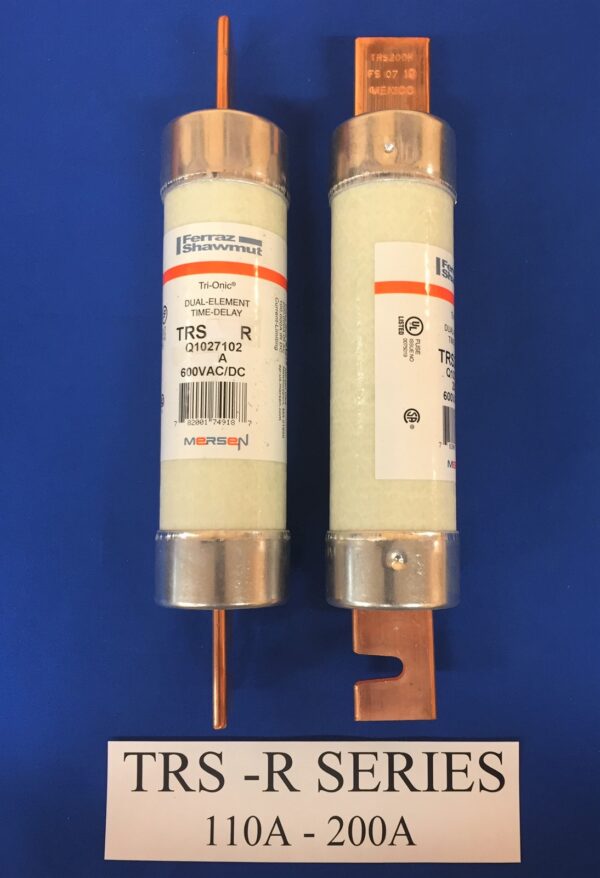

Ferraz Shawmut TRS110R Fuse 110 Amps 600 VAC/VDC

Product Description

The Ferraz Shawmut TRS110R is a time-delay fuse designed for general-purpose overcurrent protection. This cylindrical fuse operates at a voltage rating of six hundred VAC or VDC and has a current rating of one hundred ten amps. It suits various applications, including motors, transformers, service entrance equipment, feeders, and branch circuits. The time-delay feature allows for harmless starting and inrush currents.

• Fuse Class: RK5
• Rated Voltage: 600 VAC/VDC
• Rated Amperage: 110 A

Product Highlights

This fuse is essential for protecting circuits from overcurrent while allowing for temporary inrush current during startup. It meets various industry standards, making it reliable for different electrical applications.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: TRS110R

Technical Specifications

• Fuse Type: General Purpose
• Fuse Class: RK5
• Voltage Rating: 600 VAC/VDC
• Amperage: 110 A
• Fuse Timing: Time Delay
• Fuse Body Type: Cylindrical
• Overall Length: Nine and five-eighths inches
• Overall Diameter: One and thirteen-sixteenths inches
• Material: Fiberglass, Polyester
• Mount Type: Clip
• Interrupt Rating: 200 kA
• Approvals: UL, CSA, RoHS
