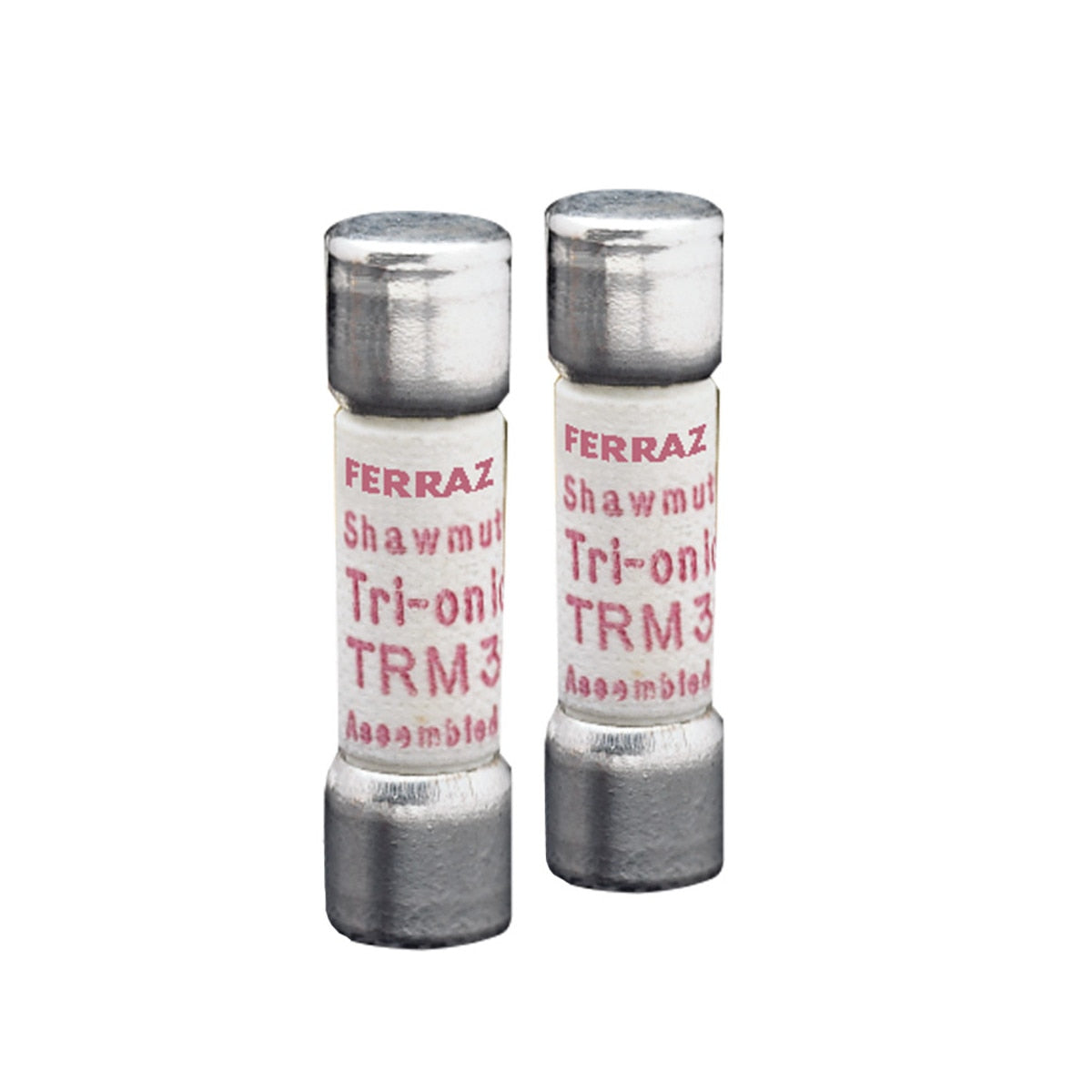

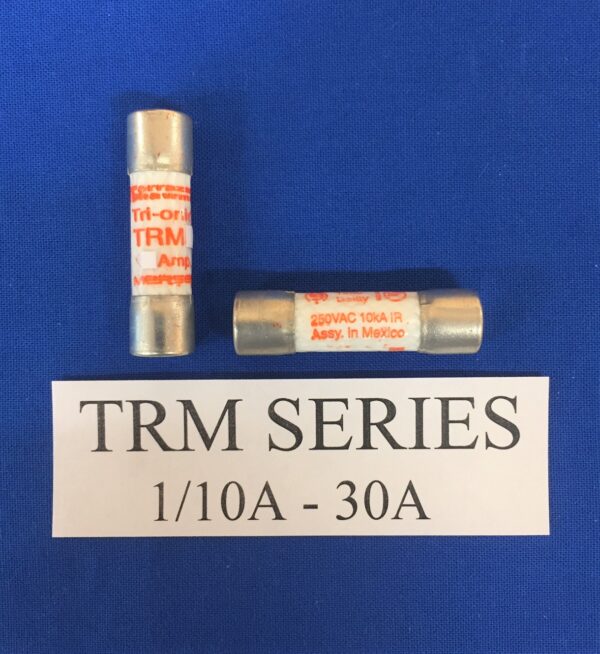

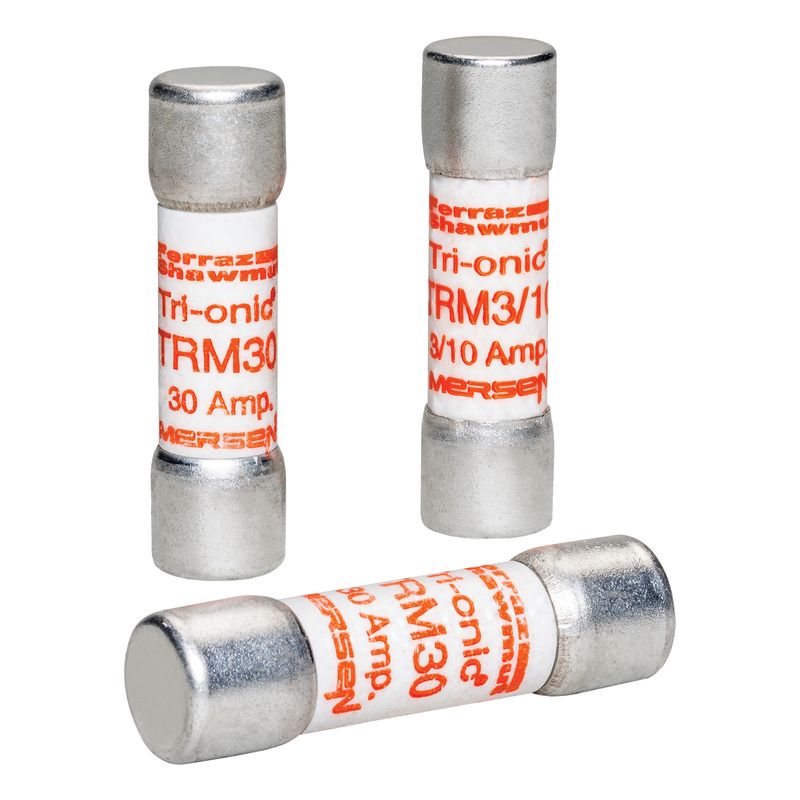

Ferraz Shawmut TRM4-1/2 Time Delay Midget Fuse

Product Description

The Ferraz Shawmut TRM4-1/2 is a time-delay midget fuse with a rating of 250VAC. It is ideal for the protection of small motors, transformers, and other devices that experience high inrush currents. This fuse features a twelve second time delay at 200% rating, making it suitable for various 250V applications.

• Rated for 250VAC
• Time delay characteristic for inrush protection
• Interrupting rating of 10kA

Product Highlights

This fuse complies with UL 248-14 and CSA C22.2 No. 248.14 standards, ensuring safety in your electrical applications.

Product Information

Standard Information

• Voltage: 250VAC
• Fuse Class: Midget

Technical Specifications

• Interrupting Rating: 10kA
• Frequency: 50/60Hz
• Amps: 4-1/2A
• Speed/Characteristic: Time Delay
• REACH Compliant: Yes
• Max. Operating Temperature: 176°F (80°C)
• Storage Temperature: -13° to 176°F (-25° to 80°)
• Approvals: UL 248-14; File E3395, CSA C22.2 No. 248.14
