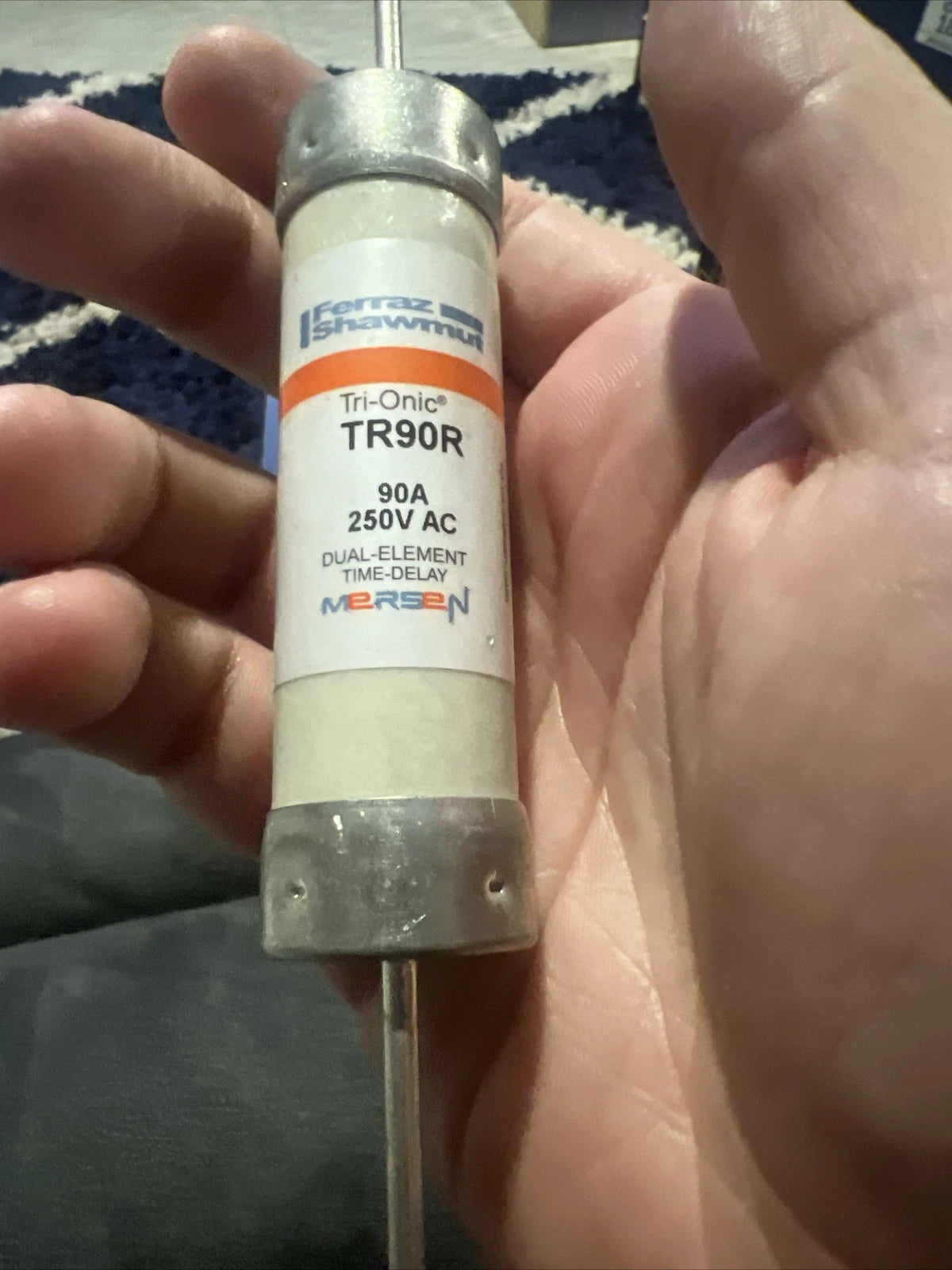

Ferraz Shawmut TR90R Fuse - Time Delay RK5 - 250V - TR90R

Product Description

The Ferraz Shawmut TR90R is a time-delay RK5 fuse designed for current limiting applications. This fuse is suitable for both AC and DC voltage applications. It features a fiberglass tube construction and has blade terminals for easy installation.

• Time delay characteristics for reliable performance
• Rated for 250V AC/DC applications
• Interrupting Rating of 200kA (AC) and 20kA (DC)

Product Highlights

This fuse offers a durable design and efficient current limiting capabilities, making it essential for various electrical installations.

Product Information

Standard Information

• Brand / Manufacturer: Mersen (Ferraz Shawmut)
• MPN: TR90R

Technical Specifications

• Amperage Rating: 90 A
• Voltage: 250 V
• Class: RK5
• Speed: Time Delay
• Terminal Style: Blade
• Interrupting Rating AC: 200 kA
• Interrupting Rating DC: 20 kA
• Diameter: 1-1/16 inches
• Length: 5-7/8 inches
• UPC: 782001748005
• GTIN: 782001748005
• Standards: UL 198L, UL 248-12, CSA C22.2
