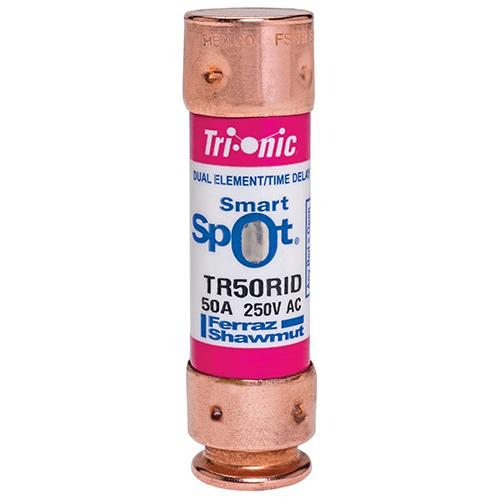

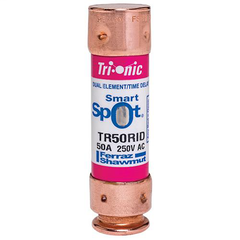

Ferraz Shawmut TR50RID 50 Amp 250 Volt Class RK5 Time Delay Fuse

Product Description

The Mersen TR50RID is a 50 Amp, 250 Volt Class RK5 time delay fuse designed for protecting electrical systems against overcurrent. This fuse is suitable for use in motors, transformers, and various circuit applications.

• Time-delay feature for safe handling of motor start-up currents
• Current-limiting design minimizes peak let-through currents
• Suitable for AC and DC applications

Product Highlights

This fuse is built for high performance and reliability in demanding environments, featuring a fiberglass body and a SmartSpot blown fuse indicator.

Product Information

Standard Information

• Brand: Ferraz Shawmut Canada, Inc.
• Manufacturer: Mersen

Technical Specifications

• GTiN: 30782001414840
• Type: North American Power Fuses
• Class: RK-5
• Length: 3 inches
• Weight: 0.135 lb
• Voltage: 250 VAC
• Amperage: 50 Amp
• Diameter: 0.81 inches
• Frequency: 50 Hz
• Interrupt Rating: 200 kAIC
• Mounting Type: Clip
• Terminal Type: Ferrule
• Terminal Material: Copper
• Insulation Material: PolyTube
• Approval Standards: UL 248-12, CSA C22.2 No. 248.12
