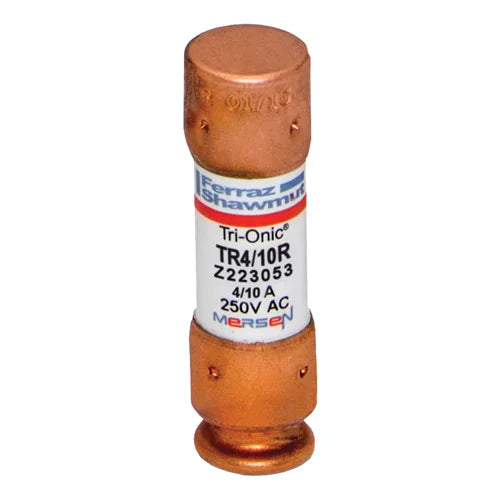

Ferraz Shawmut TR4/10R Fuse 4/10A 250V Rk5 Time Delay Fuse

Product Description

The FERRAZ SHAWMUT TR4/10R is a 4/10A 250V Rk5 time delay fuse. Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

• Time-delay characteristics safely handle harmless starting currents and inrush currents
• Class RK5 fuse
• Current-limiting time-delay

Product Highlights

This time-delay fuse is suitable for overcurrent protection in various applications, including motors and transformers.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: TR4/10R
• Country of Origin: Mexico

Technical Specifications

• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 0.4 A
• AC or DC: AC/DC
• Fuse Class: Class RK5
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Volts: 250VAC 250VDC
• Amps: 4/10A
• Interrupting Rate: 200kA AC 20kA DC
• Approvals: UL 248-12 File E2137 CSA C22.2 No. 248.12
