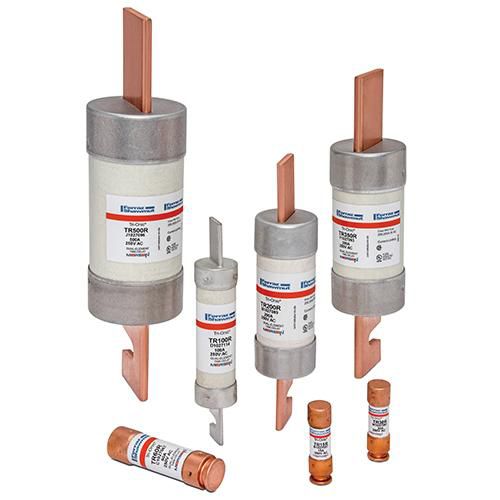

Ferraz Shawmut TR125RID 125 Amp 250 Volt Class RK5 Time Delay Fuse

Product Description

The Ferraz Shawmut TR125RID is a reliable time-delay fuse with a rating of one hundred twenty-five amps and two hundred fifty volts. It provides current-limiting protection for motors, transformers, feeders, and more. The TR-R design safely accommodates starting and inrush currents typical in modern electrical systems.

• Engineered for overcurrent protection.
• Time-delay characteristics prevent nuisance opening.
• AC and DC rated for diverse applications.

Product Highlights

This fuse is ideal for use in motors, service entrance equipment, and branch circuits.

Product Information

Standard Information

• Brand: Ferraz Shawmut Canada, Inc.
• Class: RK-5

Technical Specifications

• Amperage: 125 Amp
• Voltage: 250 Volt AC
• Length: 7.13 Inch
• Weight: 0.9 lb
• Diameter: 1.56 Inch
• Frequency: 50 Hz
• Indicator: SmartSpot®
• Mounting Type: Clip
• Interrupt Rating: 200 kAIC
• Terminal Material: Tin-Plated Copper
