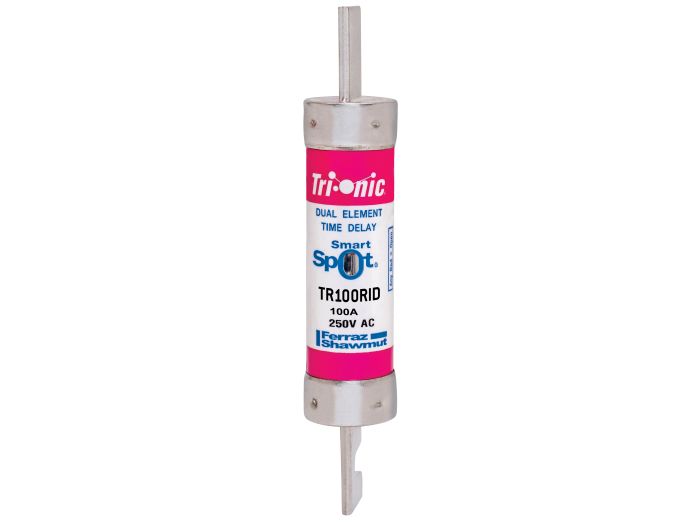

Ferraz Shawmut TR100RID Fuse 100 Amp 250 Volt Class RK5 Time Delay

Product Description

The FERRAZ SHAWMUT TR100RID is a Tri-Onic TR-R current-limiting time-delay fuse engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders, and branch-circuits. It has a Smart Spot visual blown fuse indicator. The fuse has a current rating of 100A and voltage ratings of 250 VAC/VDC.

• Time-delay characteristics safely handle harmless starting currents
• Engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits
• Current-limiting

Product Highlights

This fuse provides reliable overcurrent protection with a time-delay feature and a visual blown fuse indicator.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: TR100RID
• Country of Origin: United States

Technical Specifications

• Brand: FERRAZ SHAWMUT
• MPN: TR100RID
• Product Series: TR
• Family Series: Mersen Fuses, TR Series
• Description: Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 100A Blade SmartSpot Tri-Onic
• Fuse Type: UL Class RK5
• Current Rating: 100 A
• AC Voltage: 250 VAC
• DC Voltage: 250 VDC
• Class: RK5
• Characteristic: Time Delay
• Interrupt Rating: 200 kA @ 250 V
• Trip Indicator: Yes
• Alarm Contacts: No
• Package Type: Single Slotted
• Body Length: 5.88 "
• Diameter: 1.06 "
• Approvals: CSA, UL
• Net Weight: 0.295 lbs
• Gross Weight: 0.303 lbs
• Maximum Amperage: 100 A
• Indicator: SmartSpot®
• Insulation Material: PolyTube
• Mounting Type: Clip
• Rated Voltage AC: 250 V
• Rated Voltage DC: 250 V
• Tc Connection: Blade
• Terminal Material: Tin-Plated Copper
• Terminal Type: Blade
• Type: Class RK5
• Voltage Rating: 250 VAC/VDC
• Interrupting Rating (AC): 200 Kiloampere
• Interrupting Rating (DC): 20 Kiloampere
• Amperage Rating: 100
• Voltage: 250
• Series: TR-R
• Catalog Number: TR100RID
• Catalog / Class: RK5
• Speed: TIME DELAY
• Category: North American Electrical Fuses
