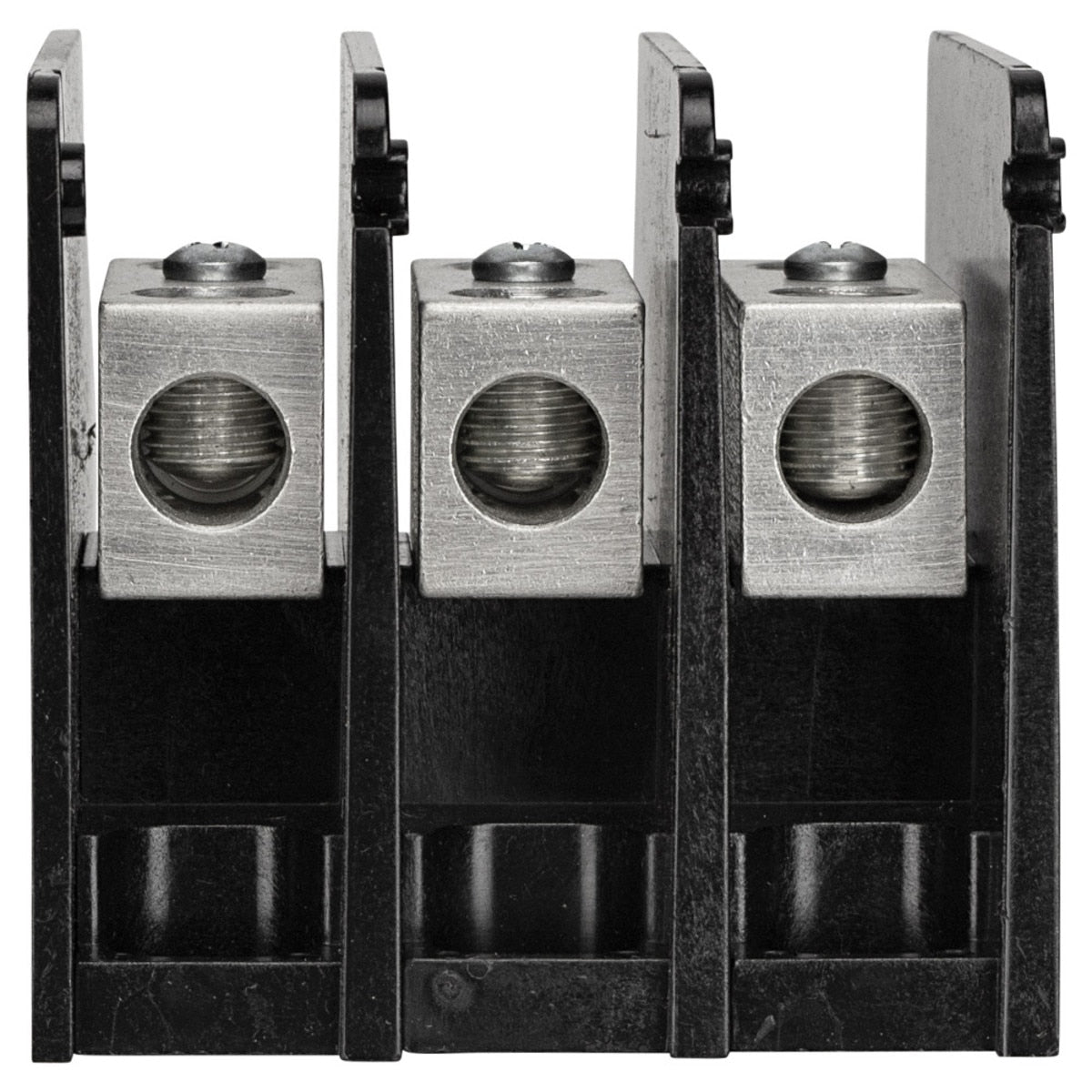

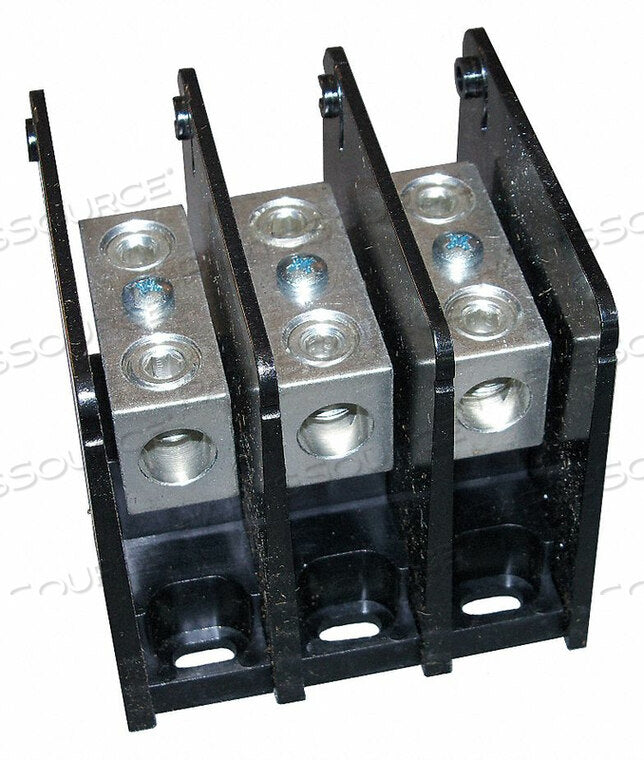

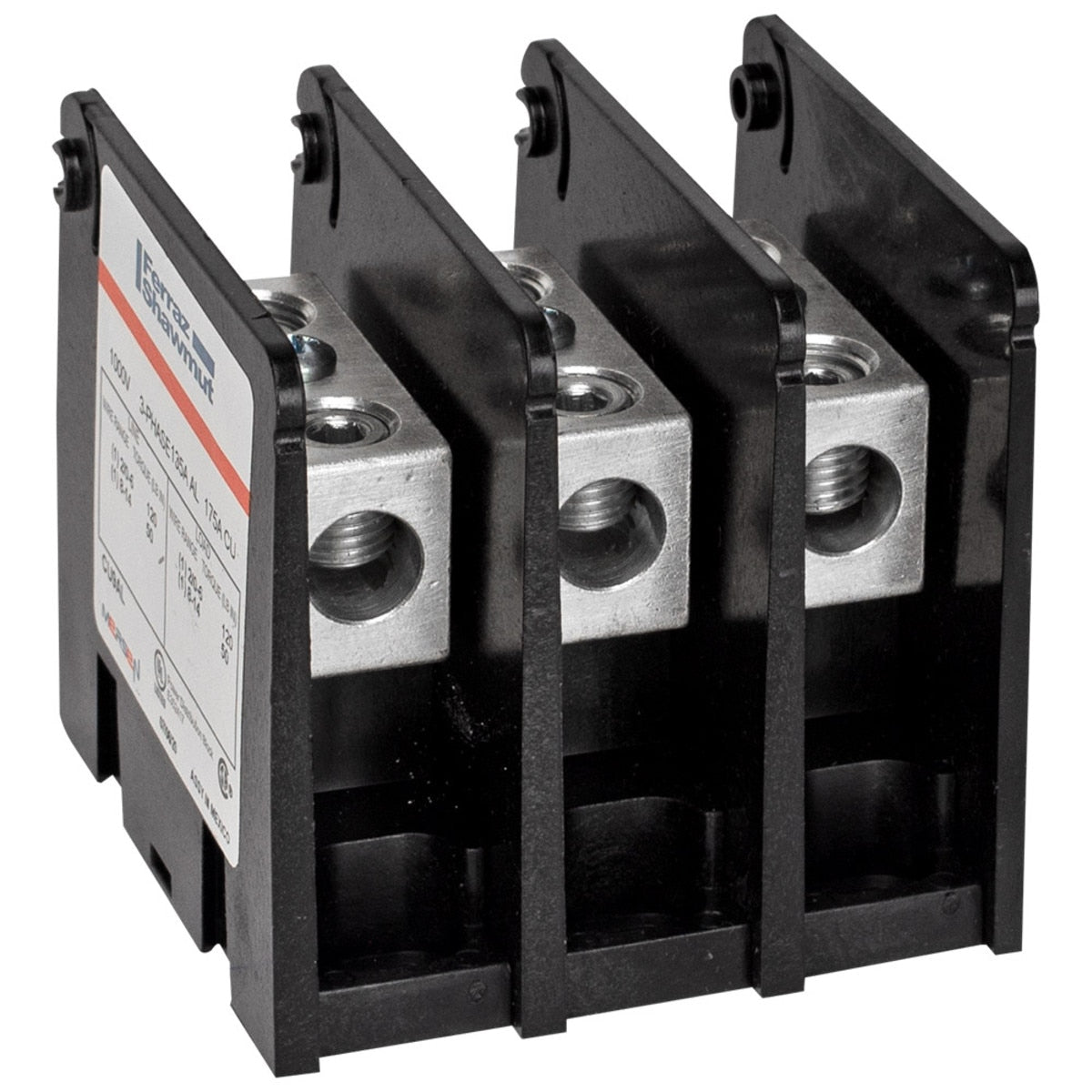

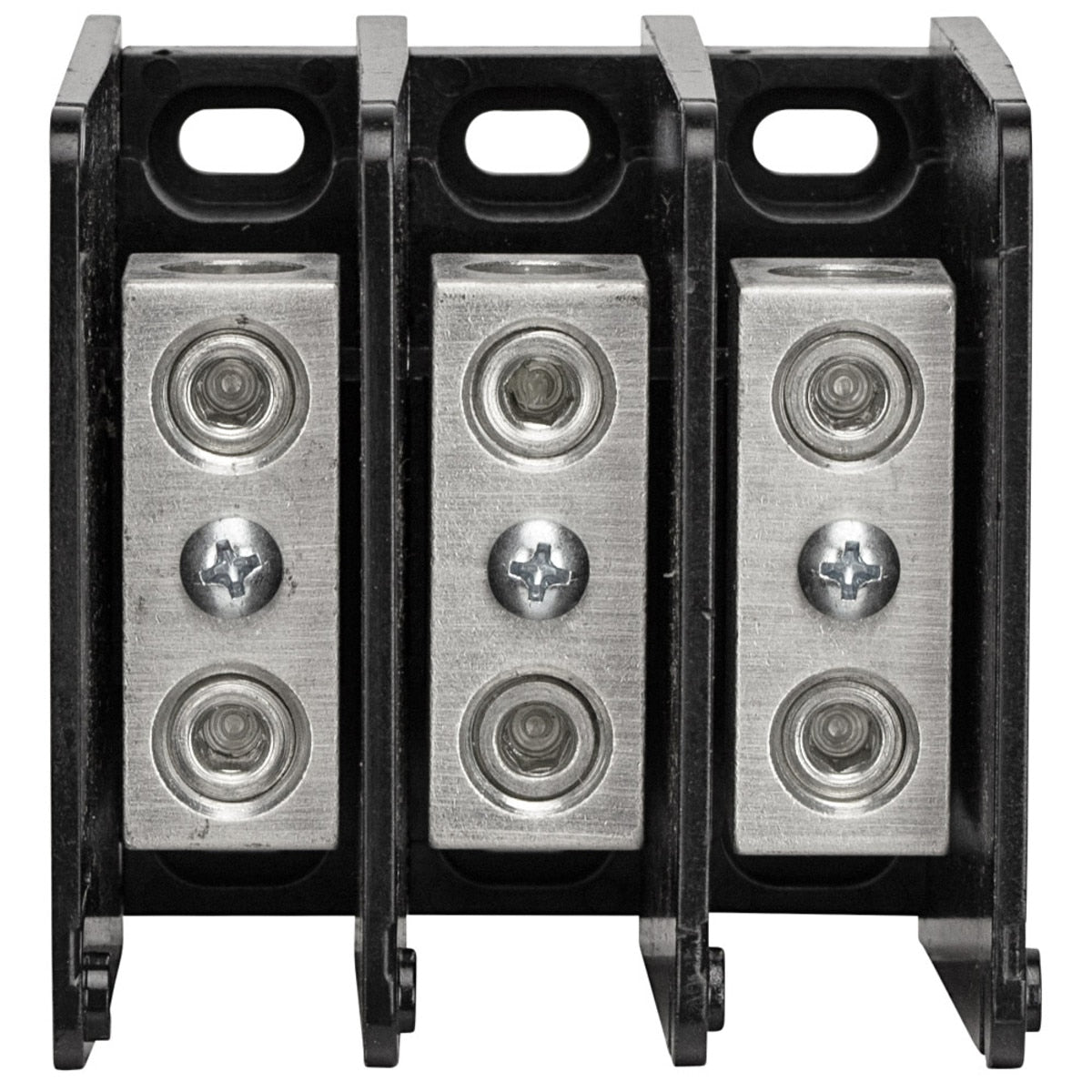

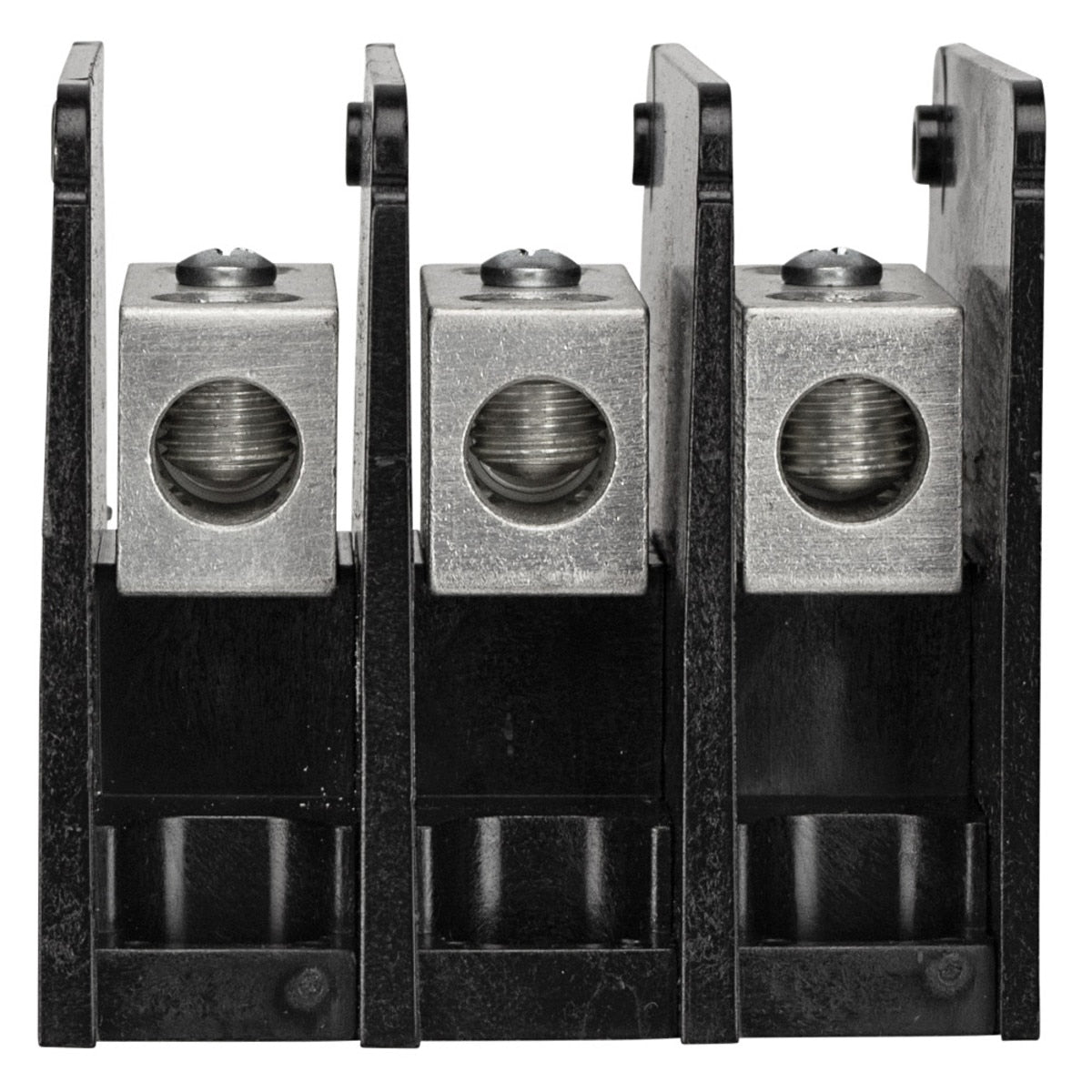

Ferraz Shawmut MPDB63153 Power Distribution Block

Product Description

The Ferraz Shawmut MPDB63153 is a three-pole power distribution block designed for efficient power management in electrical installations. It enables the splicing of cables and the distribution of primary power into secondary circuits.

• Three-pole design.
• Accepts wire sizes from fourteen to two-aught AWG.
• Rated for six hundred volts AC/DC.

Product Highlights

This distribution block is suitable for a variety of electrical applications. It is made from durable polycarbonate and utilizes tin-plated aluminum connectors for reliability.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: MPDB63153

Technical Specifications

• Voltage Rating: 600V AC/DC
• Amperage Rating: 175 A
• Number of Poles: 3
• Primary Connections per Pole: 1
• Secondary Connections per Pole: 1
• Wire Size: 14 to 2/0 AWG
• Short Circuit Current Rating: 100 kA
• Material: Polycarbonate
• Connector Material: Tin-plated Aluminum
• Mounting Type: Direct Screw Mount
• Product Width: 2.91 in
• Product Length: 3.08 in
• Product Height: 2.81 in
• Weight: 0.56 lb
