Ferraz Shawmut DFC-7 Safety Cover

Product Description

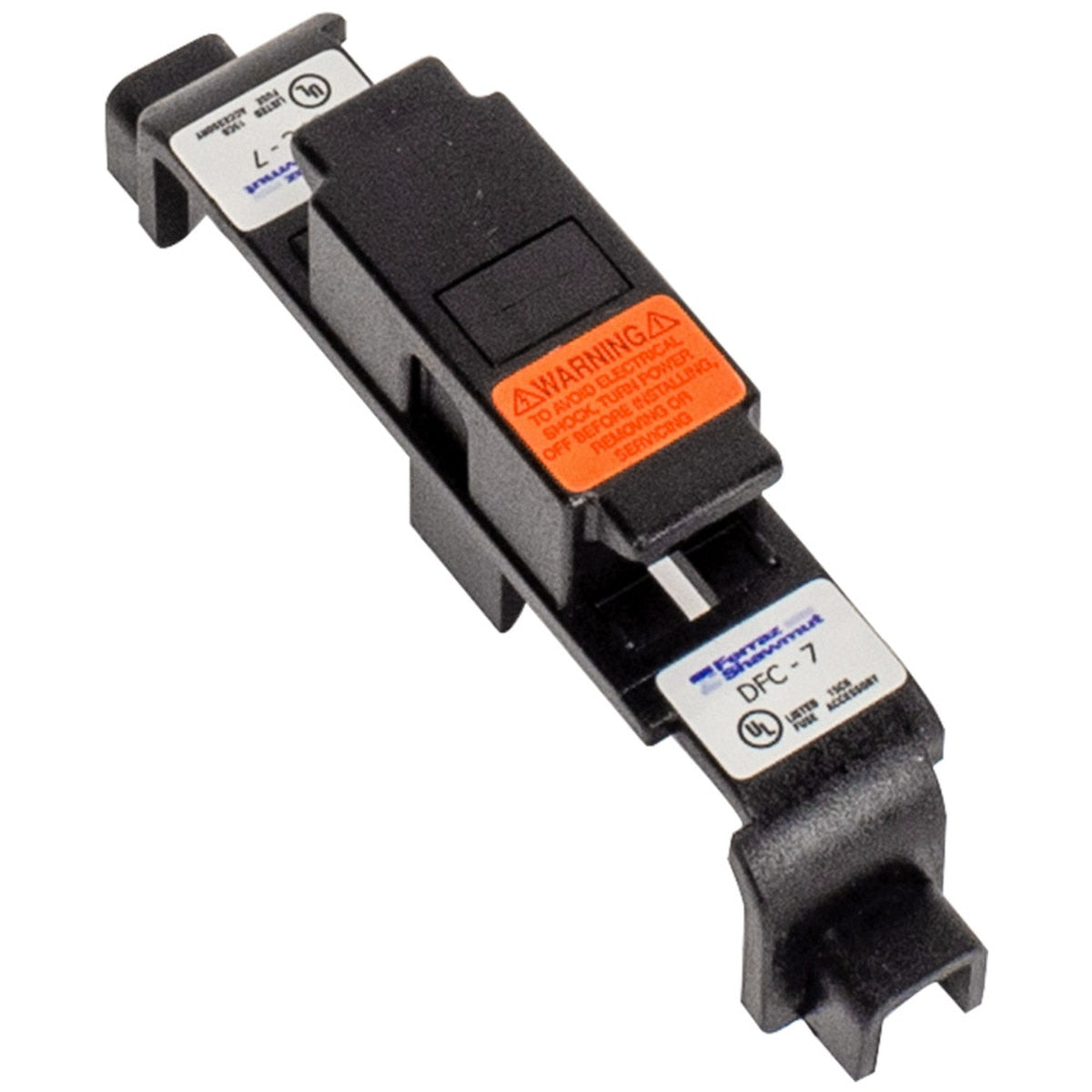

The Ferraz Shawmut DFC-7 is a dead-front safety cover suited for individual fuses in fuse blocks. This cover effectively shields exposed live clips and terminals, minimizing the risk of accidental contact. It is compatible with Class G, H, J, K, R, CC, or midget fuses. The reusable design of the DFC-7 allows it to be detached from one fuse and reattached on a new one when needed. It also features cuttable ends, making it ideal for various wiring situations, and includes a blank label for circuit identification.

• Designed for Class G, H, J, K, R, CC, and midget fuses.
• Reusable for easy fuse replacement.
• Covers live clips and terminals to enhance safety.

Product Highlights

The Ferraz Shawmut DFC-7 safety cover ensures safety in electrical installations.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: DFC-7

Technical Specifications

• Voltage Rating: 600 V
• Current Rating: 30 A
• Fuse Class: Midget, CC, G, H, J, K, R
• Number of Poles: 1-Pole
• Product Width: 17.5 mm
• Product Length: 94.2 mm
• Product Height: 34.8 mm
• Flammability Rating: UL 94-V2
• Approvals: CSA File 70159
• Leakage Current: < 0.6 mA at 600 V
• Sell Pack Quantity: 3 EA
• Sell Pack Weight: 0.0429 kg
• Sell Pack Dimensions: 76.2 mm x 101.6 mm x 50.8 mm
• Product Weight: 0.0136 kg
• Dimensions (L x W x H): 3.71 x 0.69 x 1.37
