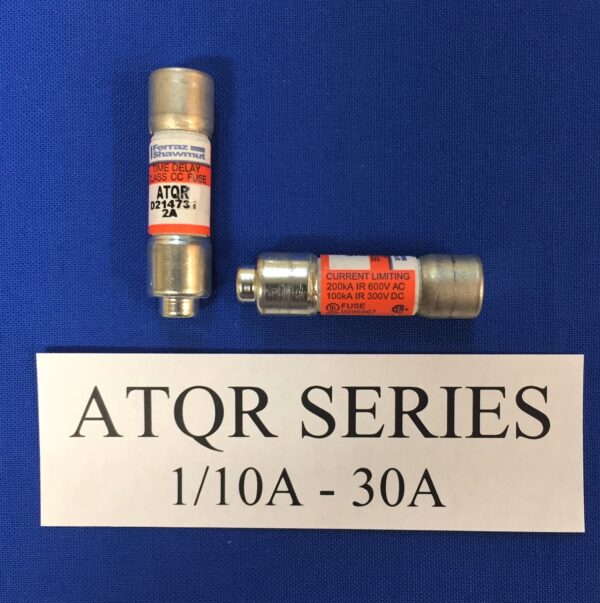

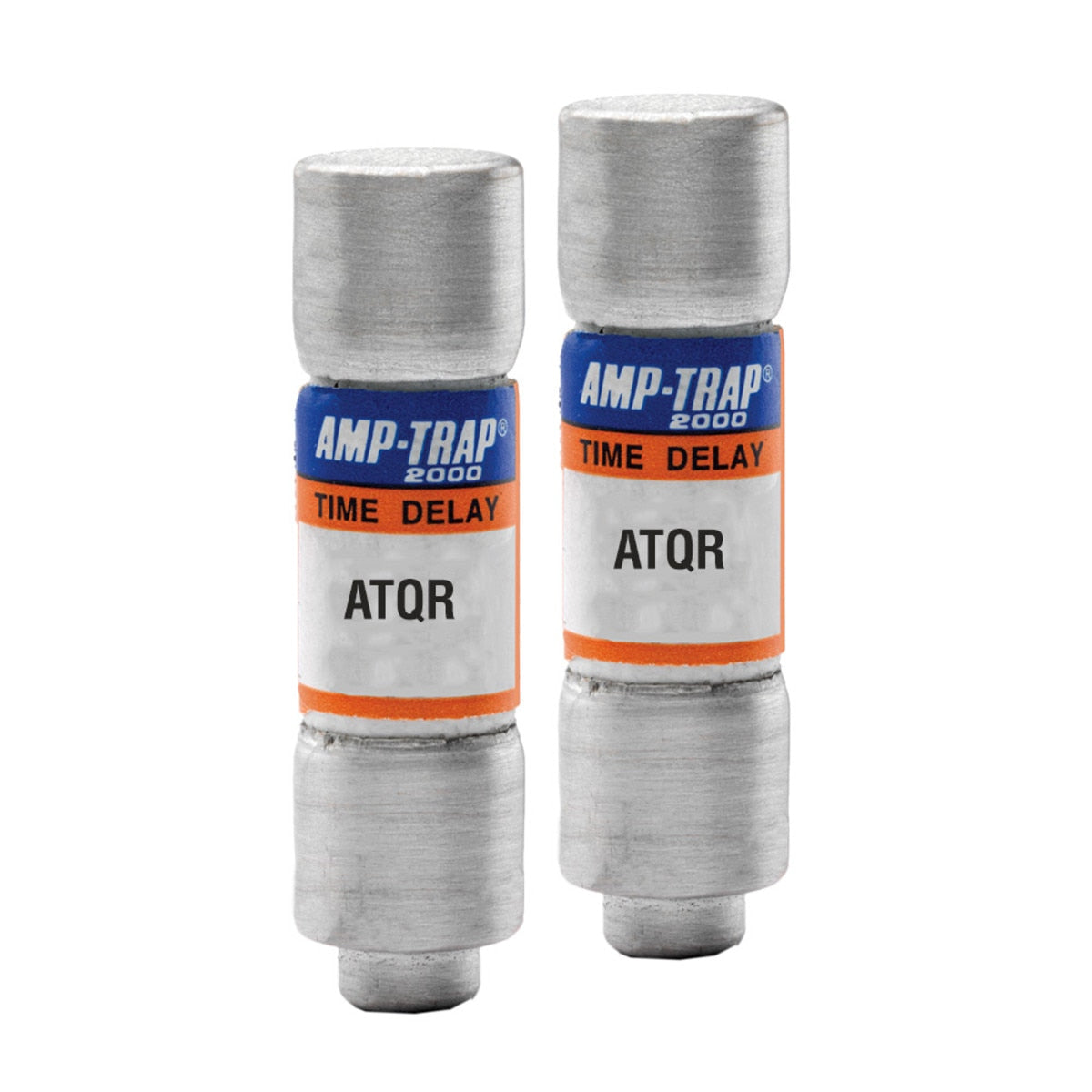

Ferraz Shawmut ATQR20 Fuse

Product Description

The Ferraz Shawmut ATQR20 is a Class CC fuse designed for circuit protection in electrical distribution systems. This small-dimension fuse effectively manages high inrush currents from solenoids, control transformers, and inductive loads.

• Time-delay for inrush current management
• Rated for both 600VAC and 300VDC
• Interrupting rating of 200kA for safety

Product Highlights

This fuse is essential in protecting branch circuits, ensuring reliable electrical performance in various applications.

Product Information

Standard Information

• MPN: ATQR20
• UPC: 782001904708

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupting Rating: 200 kA
• Fuse Speed: Time Delay
• Fuse Class: Class CC
• Fuse Shape: Cartridge Fuses
• Standards and Approvals: UL, CSA, RoHS
• Body Material: GMG
• Mounting Type: Clip
• Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Product Diameter: 0.41 inches
• Product Length: 1.5 inches
• Product Weight: 0.017 lb
• Frequency: 50/60 Hz
• RoHS Compliant: Yes
