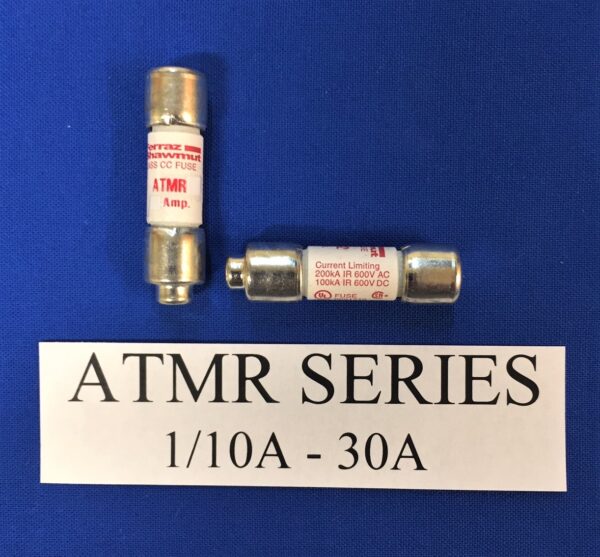

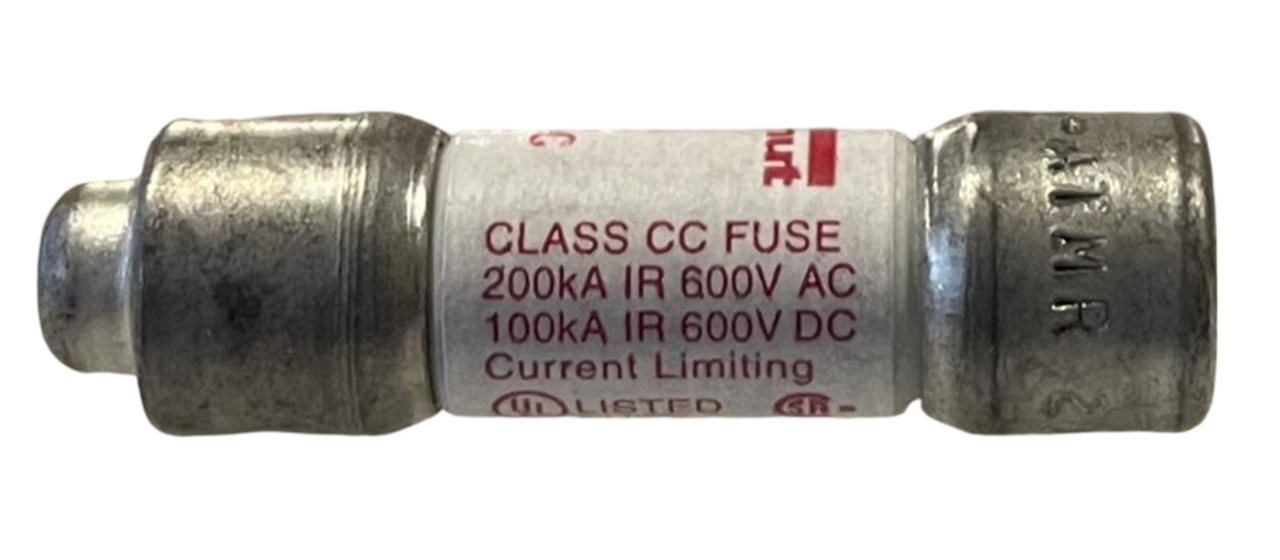

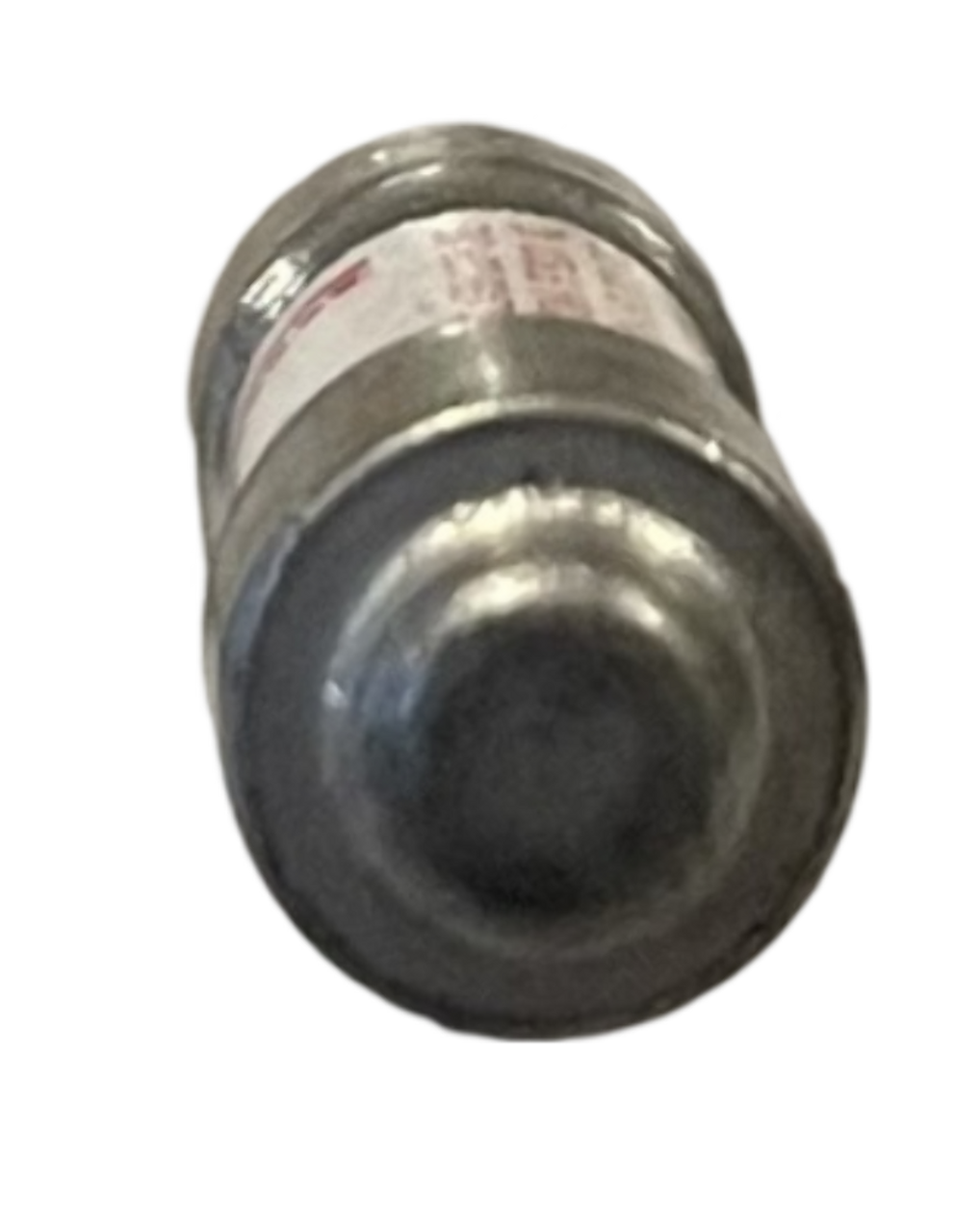

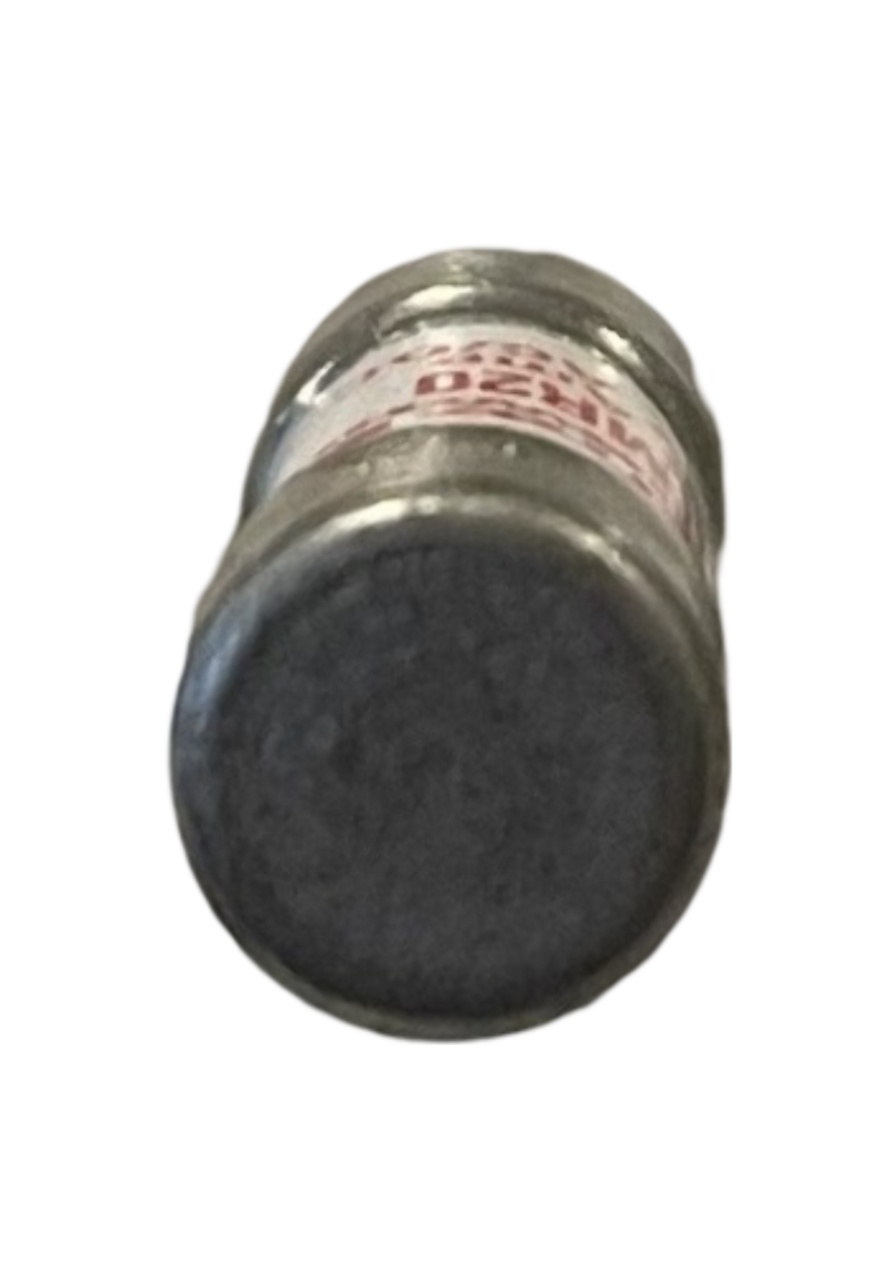

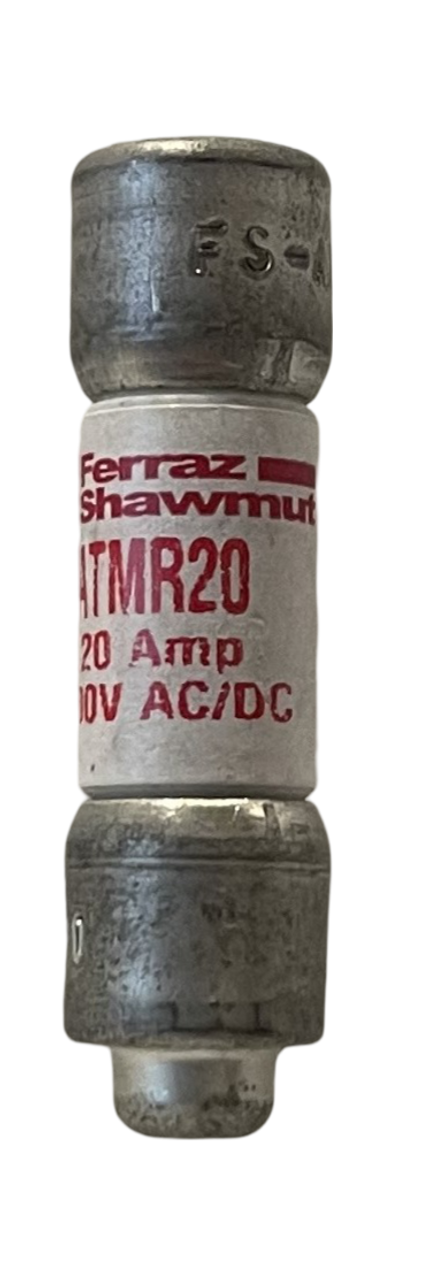

Ferraz Shawmut ATMR20 Fuse

Product Description

The Ferraz Shawmut ATMR20 is a Class CC fuse designed for branch-circuit protection. This fast-acting fuse is suitable for control circuits and control circuit transformers that experience short circuit currents. The cylindrical cartridge shape is UL, CSA, and RoHS approved.

• Amperage rating of twenty amps
• Voltage rating of six hundred volts AC and DC
• Interrupt rating of two hundred kiloamperes

Product Highlights

Fast-acting fuse for reliable circuit protection.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: ATMR20

Technical Specifications

• Amperage Rating: 20 A
• Voltage: 600 Vac, 600 Vdc
• Interrupt Rating: 200 kA
• Speed: Fast-Acting
• Class: Class CC
• Shape: Cartridge Fuse
• Approvals: UL, CSA, RoHS
• Dimensions: 0.41 Dia x 1.5 L (10.41 x 38.1 mm)
