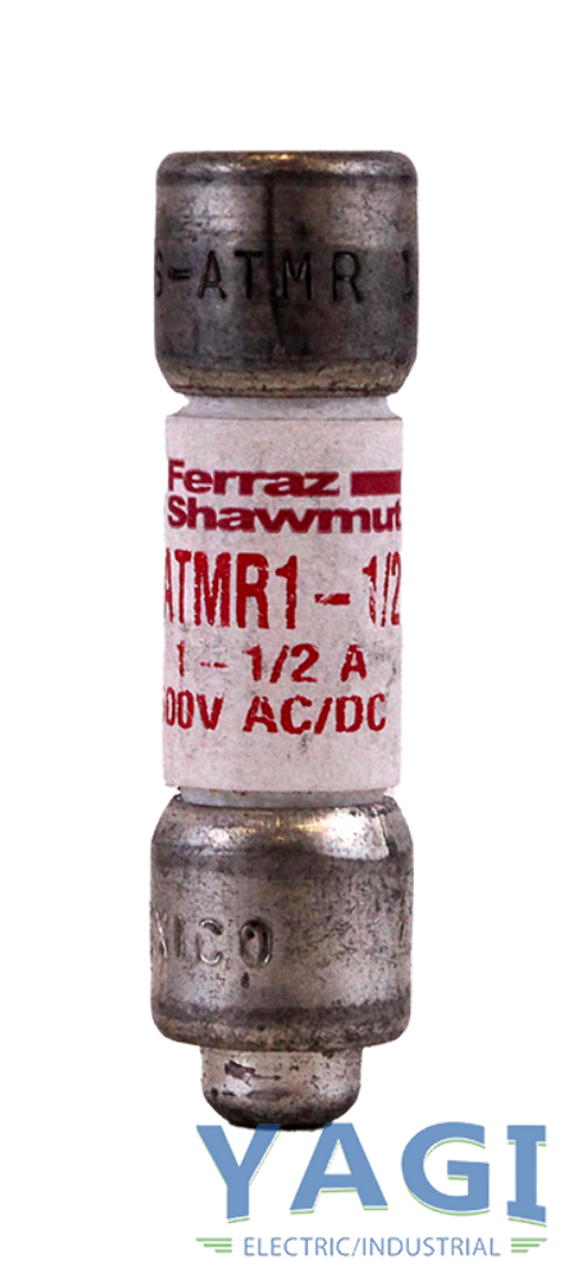

FERRAZ SHAWMUT ATMR1-1/2 Fuse

Product Description

The FERRAZ SHAWMUT ATMR1-1/2 is a Class CC fast-acting fuse designed for branch-circuit protection and control of circuit transformers. This fuse ensures current-limiting protection for general circuits. It includes rejection dimensions to prevent use of fuses with lower ratings, ensuring safety and compliance.

• Class CC fuse for reliable performance.
• Fast-acting design for quick response to overcurrent.
• Voltage rating of six hundred VAC/DC for versatile applications.

Product Highlights

Ideal for protecting branch circuits, the ATMR1-1/2 fuse is essential for maintaining circuit integrity.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• MPN: ATMR1-1/2

Technical Specifications

• Amperage Rating: 1.5 A
• Voltage Rating: 600 VAC, 600 VDC
• Interrupting Rating: 200 kA
• Fuse Class: Class CC
• Speed/Characteristic: Fast-Acting
• Mounting Type: Clip
• Terminal Material: Tin-Plated Copper
• Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Frequency: 50/60 Hz
• Body Material: GMG
• AC Voltage Rating: 600 VAC
• AC Interrupting Rating: 200 kA I.R.
• DC Voltage Rating: 600 VDC
• DC Interrupting Rating: 100 kA I.R.
• RoHS Compliant: Yes
