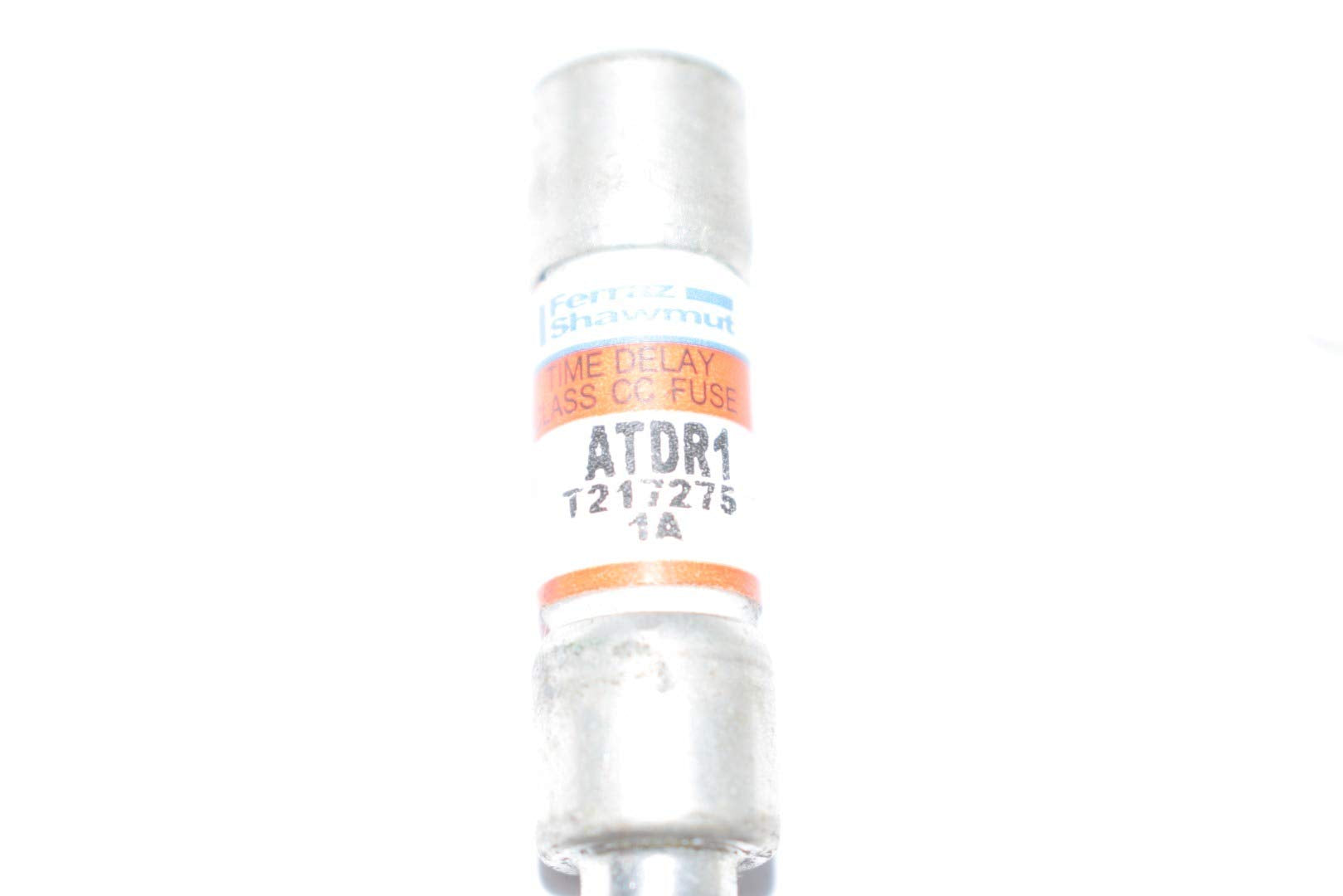

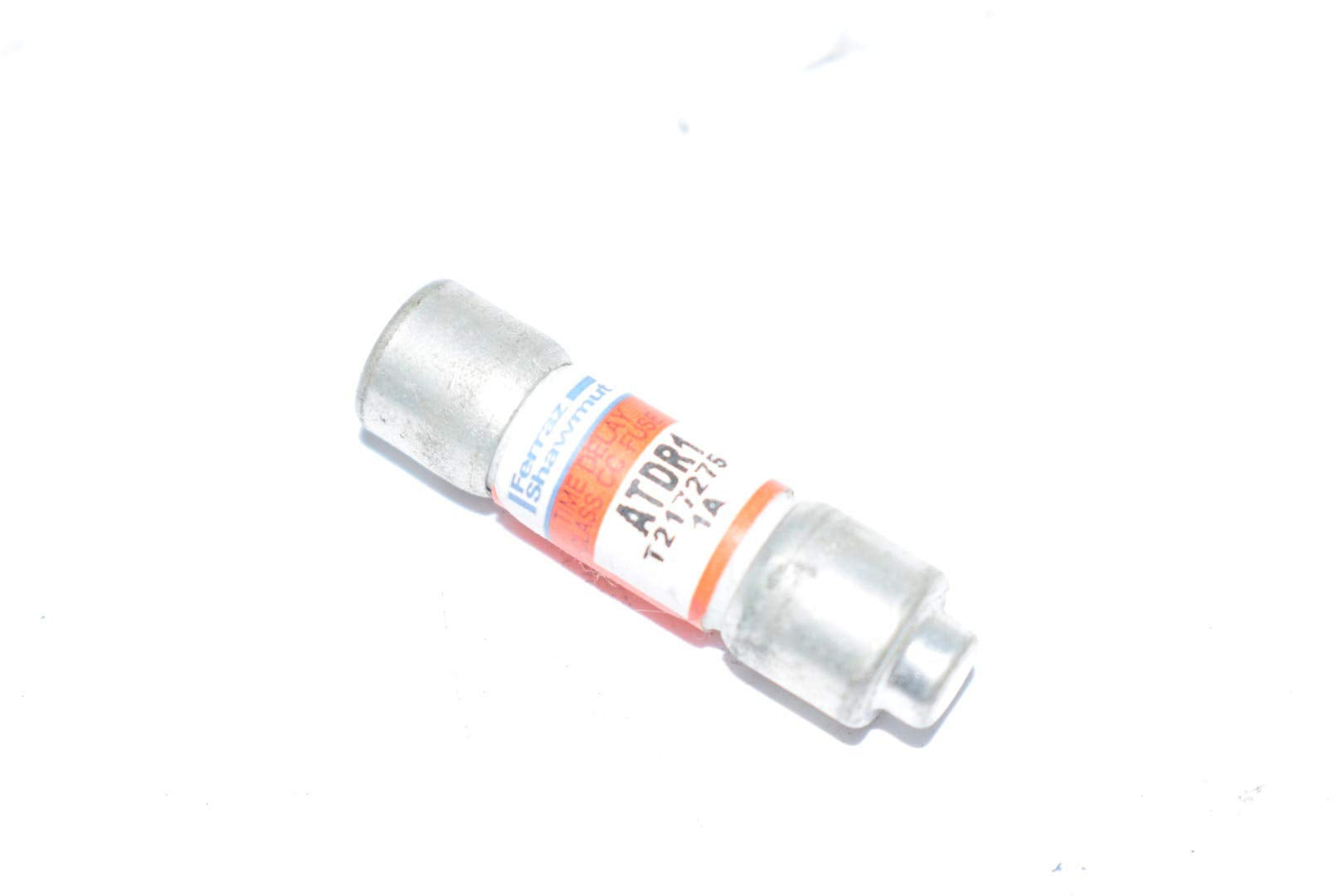

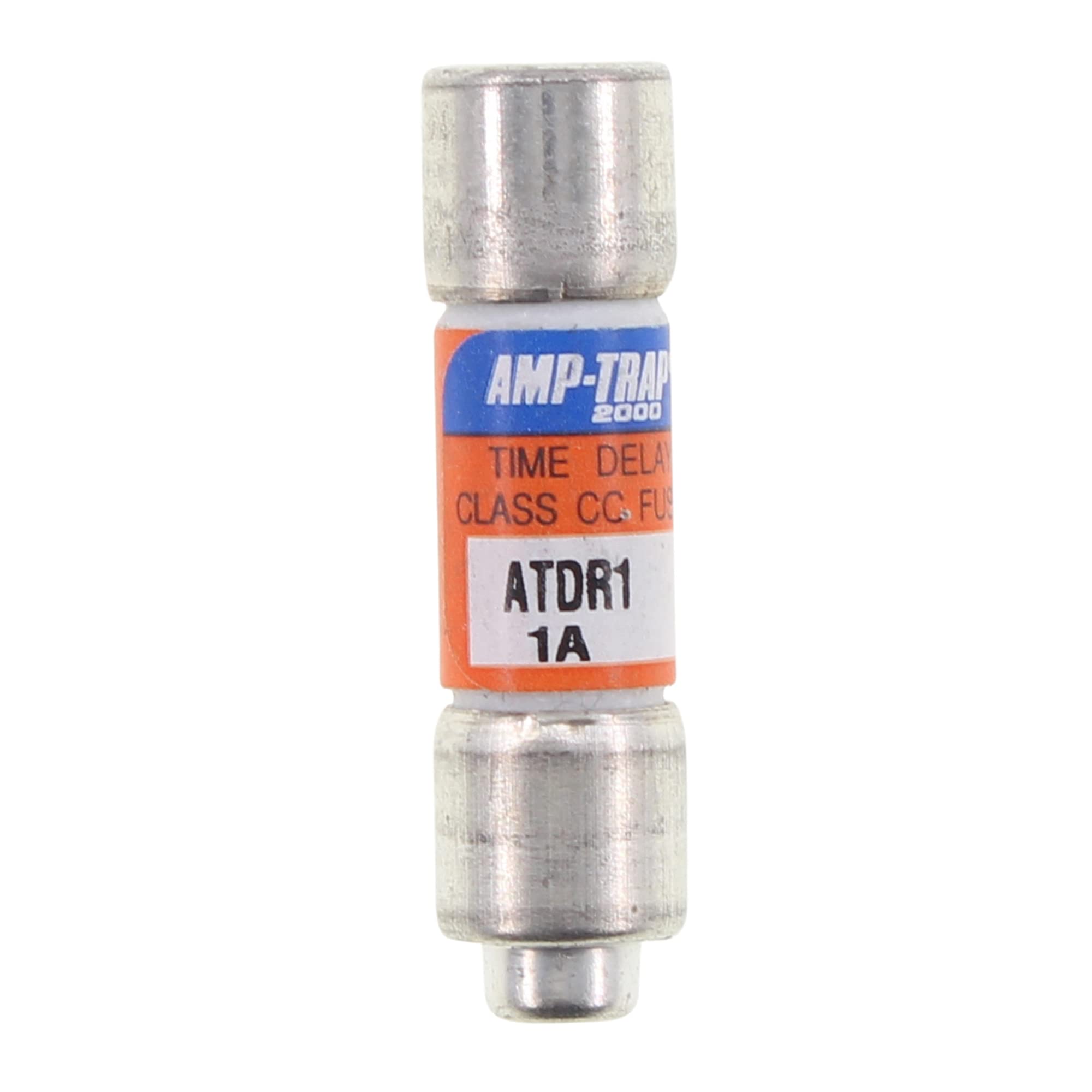

Ferraz Shawmut ATDR1 Amp-Trap 2000 ATDR Fuse - 1amp

Product Description

The FERRAZ SHAWMUT ATDR1 Amp-Trap 2000 time-delay fuse provides IEC Type 2 "no damage" protection to branch circuit components and small motors, minimizing fault-related damage. This Class CC fuse delivers time-delay characteristics with cycling ability for small motor loads. It has a current rating of 1A and voltage rating of 600VAC and 300VDC.

• IEC Type 2 "no damage" protection
• Time-delay characteristics
• Excellent cycling ability for small motor loads

Product Highlights

The FERRAZ SHAWMUT ATDR1 fuse provides reliable protection against overloads and short circuits, suitable for a wide range of electrical systems.

Product Information

Standard Information

• Brand: FERRAZ SHAWMUT
• Manufacturer Part Number: ATDR1
• Country of Origin: MX

Technical Specifications

• AC: 600VAC
• DC: 300VDC
• Interrupting Rating (AC): 200kA
• Interrupting Rating (DC): 100kA
• Fuse Class: CC
• Time Delay: Time Delay
• Amperage: 1 A
• Series: ATDR
• Terminal: Ferrule
• Mounting: Clip
• Body Style: Cylindrical
• Element: Dual
• Body Material: Fiberglass
• Body Size: 13/32 in Dia x 1-1/2 in L
• Type: Class CC Fuse
• Size: 10.4 x 38.1 mm
• Acting: Slow Blow
• Current Rating: 1 A
• Maximum AC Voltage Rating: 600 V
• Maximum DC Voltage Rating: 300 V
• Fuse Material: Fiber Glass
