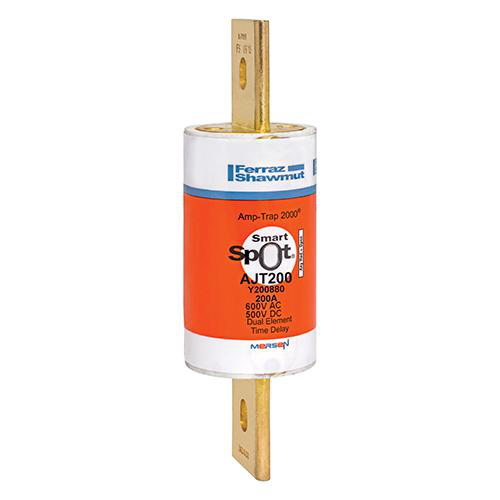

Ferraz Shawmut AJT200 Class J - Time Delay Amp-Trap 2000 SmartSpot AJT Fuse - 200amp. Rated 600 volts AC, 500 volts DC

Product Description

The Ferraz Shawmut AJT200 is a Class J time delay Amp-Trap 2000 SmartSpot fuse with a rating of 200 amperes and suitable for voltages up to six hundred volts AC and five hundred volts DC. This fuse incorporates advanced material technology to provide IEC Type 2 No Damage protection to main, feeder, and branch circuits, making it ideal for various load types. The compact design requires only half the mounting space of standard surgical class RK fuses.

• Non-indicating SmartSpot visual blown fuse indicator
• Time-delay features for motor starting and transformer inrush
• Extremely current-limiting for low peak let-through current

Product Highlights

The AJT200 fuse is known for its high interrupting rating and is recommended for applications where arc flash energy reduction is critical. Its small footprint allows for more economical installations while maintaining high-performance standards.

Product Information

Standard Information

• Brand: Ferraz Shawmut Canada, Inc.
• Sub Brand: Amp-Trap 2000

Technical Specifications

• Amperage: 200 Amp
• Voltage: 600 VAC
• Rated Voltage DC: 500 V
• Fuse Class: Class J
• Length: 5-3/4 Inch
• Diameter: 1.62 Inch
• Weight: 0.85 lb
• Mounting Type: Clip
