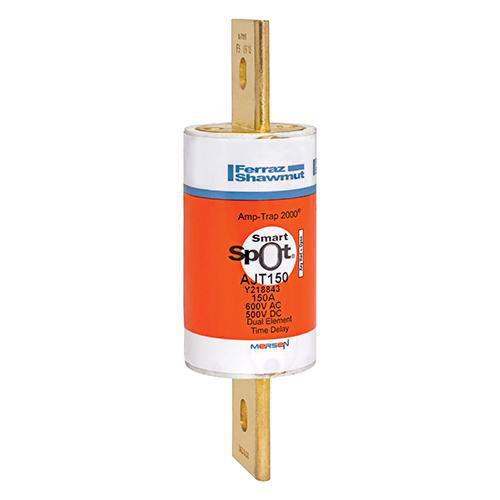

Ferraz Shawmut AJT150 AJT Fuse 150A

Product Description

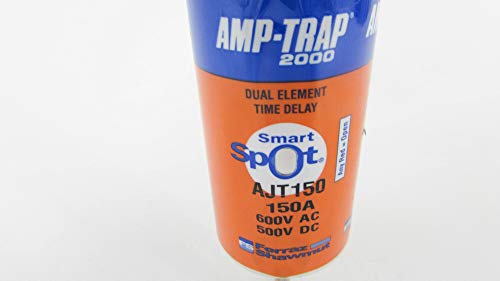

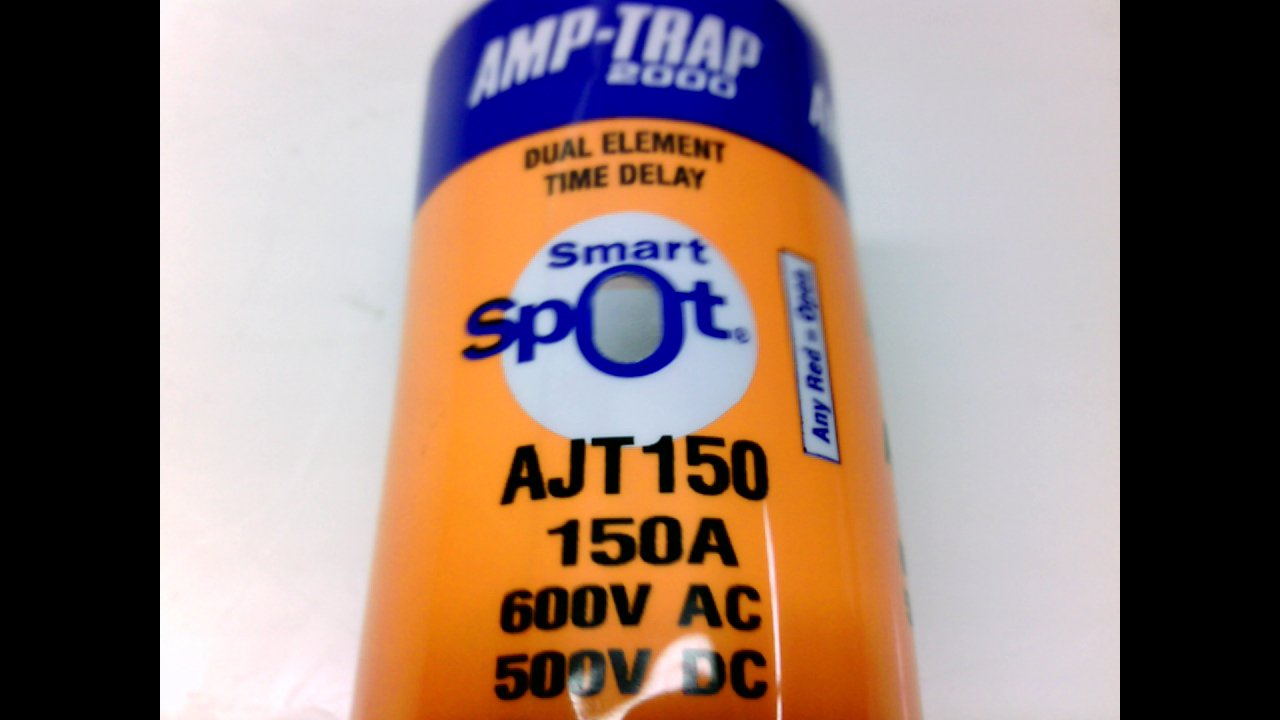

The Ferraz Shawmut AJT150 is an Amp-Trap 2000 AJT fuse designed to provide advanced protection for electrical circuits. This fuse includes a SmartSpot visual open fuse indicator, allowing for easy identification of blown fuses. It features IEC Type 2 No Damage protection, ensuring that main, feeder, and branch circuits remain intact even under fault conditions.

• Time-delay characteristics suitable for motor and transformer inrush currents
• Superior current-limiting capabilities
• IEC Type 2 No Damage protection for various circuit types

Product Highlights

This fuse is ideal for electricians and technicians managing diverse electrical loads in commercial and residential settings.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• Fuse Class: J

Technical Specifications

• MPN: AJT150
• Voltage Rating: 600 VAC
• Amperage: 150 A
• Fuse Type: Time Delay
• Manufacturer: Gould Shawmut
• Interrupting Rating AC: 200KA
• Interrupting Rating DC: 100KA
• Mounting: Clip
• Standard: UL Listed to Standard 248-8; File E2137 DC Listed to UL Standard 248 CSA Certified
• Sub Brand: Amp-Trap 2000; SmartSpot
• Connection: Blade
• Application: Motor Circuits, Mains Feeders, Branch Circuits, Lighting, Heaters, Transformers
• Interrupt Rating: 200 kA
• Special Features: Solid-state SmartSpot indicator, Time-delay for motor starting and transformer inrush
• Type Of Indicators: SmartSpot
• Body Style: Cylindrical
• Terminal Style: Blade
• Element: Dual Element
• Body Material: Fiberglass
• Body Diameter: 1-5/8 inches
• Body Length: 5-3/4 inches
• Series: AJT
• Features: Indicating, Rejection
