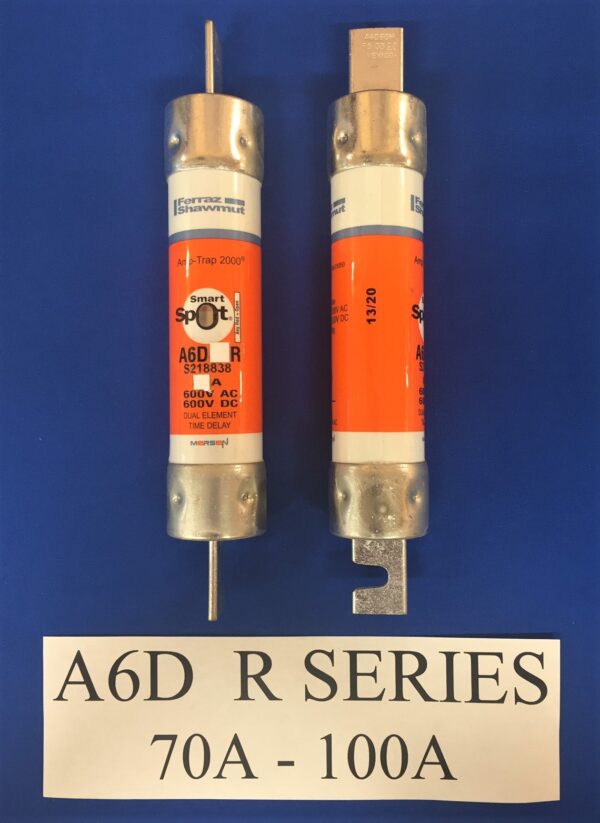

Ferraz Shawmut A6D90R Fuse

Product Description

The Ferraz Shawmut A6D90R is a time-delay fuse specifically designed to protect mains, feeders, and branch circuits for both motor and non-motor loads. This Amp-Trap 2000 fuse offers effective short circuit protection, helping to prevent damage to circuit components. The design features a time delay that accommodates the inrush currents of motors, making it suitable as a replacement for Class H, K, or RK5 fuses. The A6D90R is constructed with a durable fiberglass body, ensuring dimensional stability.

• Time-delay functionality accommodates motor starting.
• Applicable for both 600VAC and 600VDC.
• Current-limiting design minimizes peak let-through current.

Product Highlights

This fuse is ideal for various electrical applications where reliable protection is critical.

Product Information

Standard Information

• Brand / Manufacturer: Ferraz Shawmut
• MPN: A6D90R

Technical Specifications

• Amperage Rating: 90A
• Voltage: 600VAC/VDC

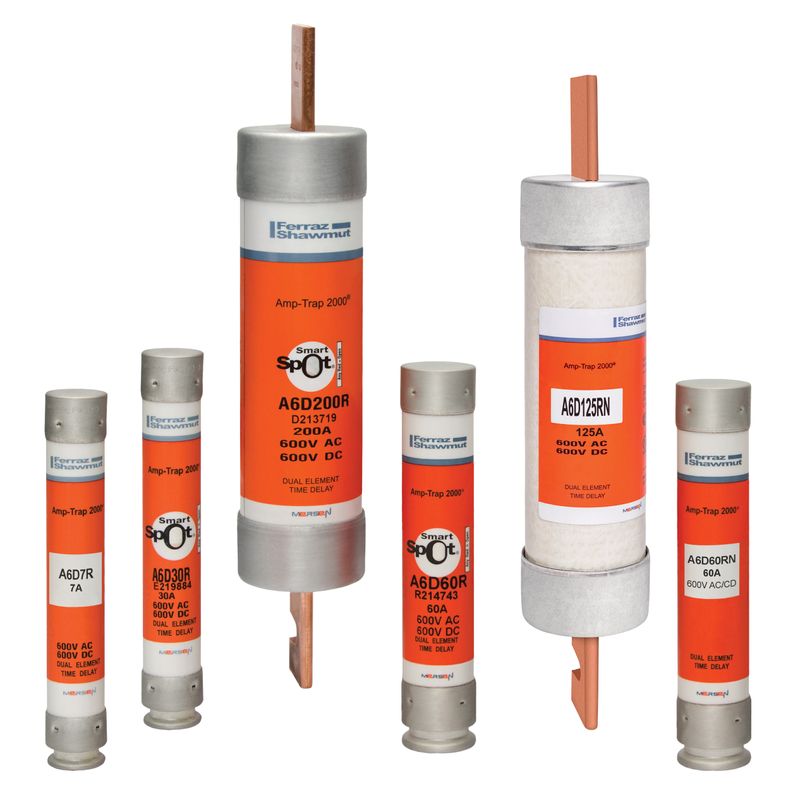

• Series: A6D
• Fuse Class: RK1
• Speed: Time-Delay
• Fuse Type: General Purpose
• Fuse Body Type: Cylindrical
• Overall Length: 7-7/8 inches
• Overall Diameter: 34.00 mm
• Material: Fiberglass, Polyester
• Mount Type: Clip
• Rejection Setting: Rejecting
• Indicating Information: Indicating
• Standards: CSA C22.2 No. 248.12 Certified, UL 248
• Interrupting Rating: 300kA
