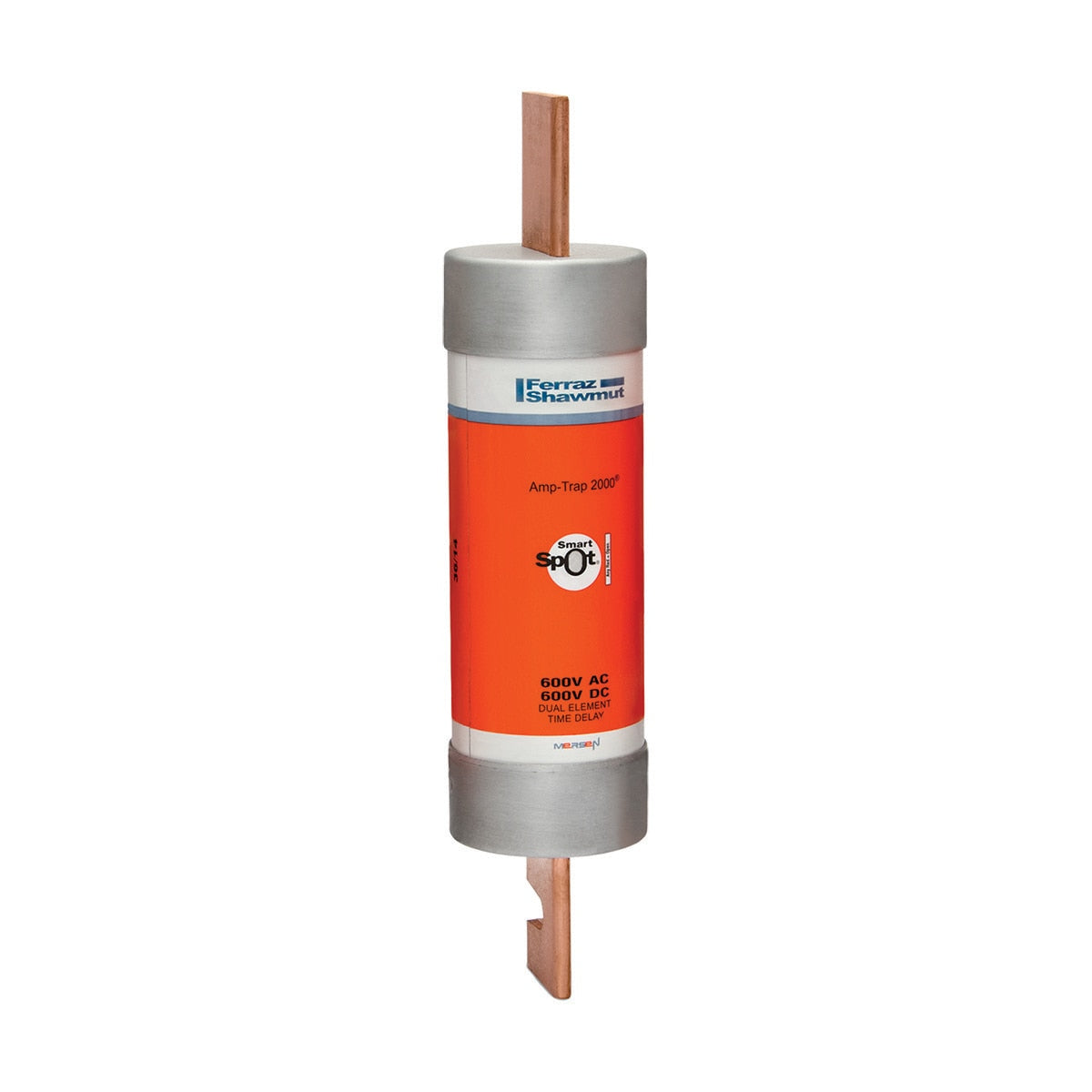

FERRAZ SHAWMUT A6D350R Fuse

Product Description

The FERRAZ SHAWMUT A6D350R is a time-delay fuse designed for both motor and non-motor loads. It is rated for 600VAC and 600VDC, providing reliable circuit protection. This Class RK1 fuse helps protect mains, feeders, and branch circuits from short circuits and accommodates motor in-rush currents. The design includes a fiberglass body and a SmartSpot visual blown fuse indicator.

• Time-delay functionality for motor in-rush currents.
• Suitable for 600VAC and 600VDC applications.
• Clip mounting for easy installation.

Product Highlights

This fuse is ideal for replacing older Class H, K, or RK5 fuses.

Product Information

Standard Information

• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Fuse Type: General Purpose

Technical Specifications

• MPN: A6D350R
• Fuse Class: RK1
• Amperage: 350 A
• Voltage Rating: 600 Vac, 600 Vdc
• Interrupting Rating: 200 kA
• Fuse Timing: Time Delay
• Fuse Body Type: Cylindrical
• Overall Length: 11-5/8 inches
• Overall Diameter: 66.00 mm
• Material: Fiberglass, Polyester
• Mount Type: Clip
• Visible Open Indicator: SmartSpot
• Item Weight: 3.4 lbs
