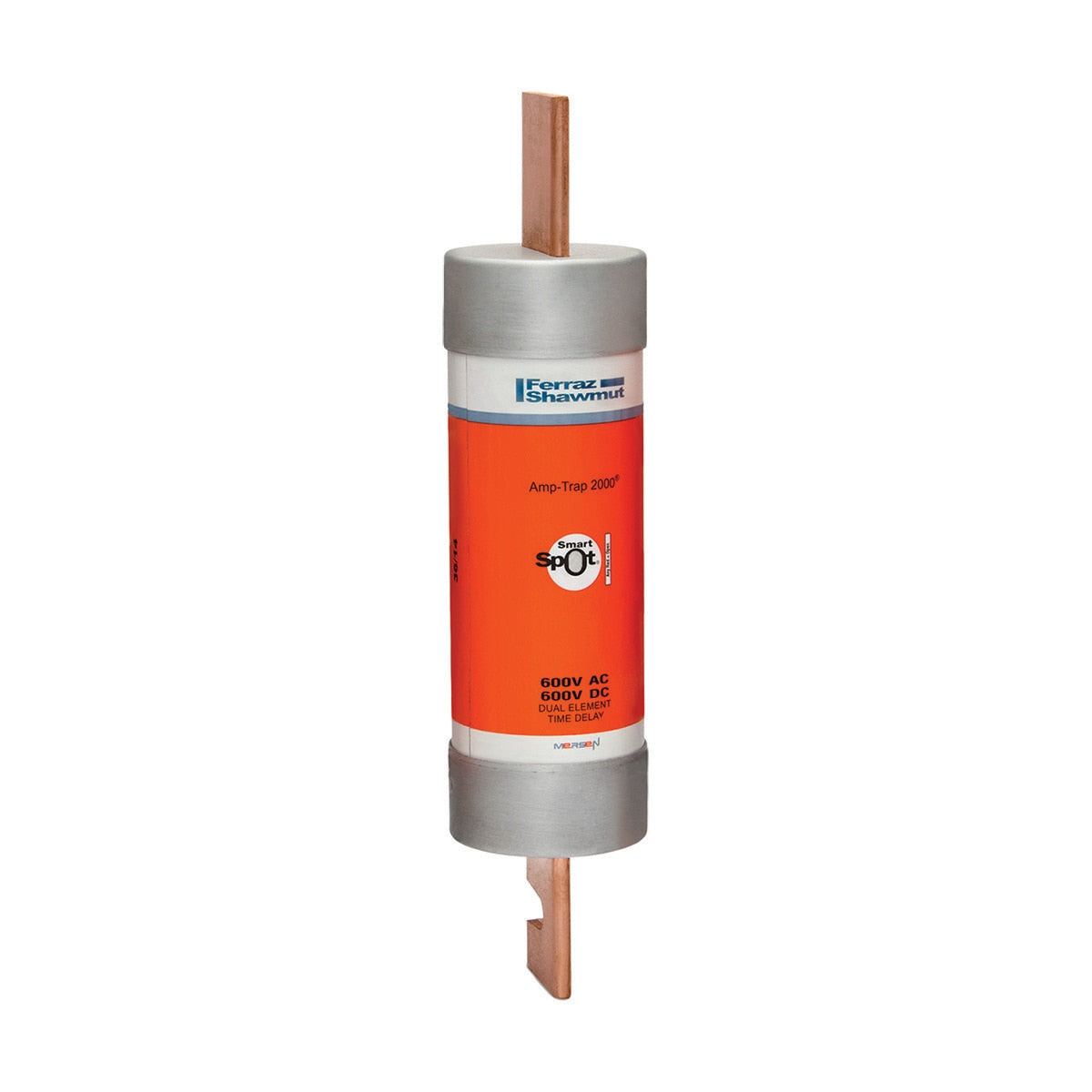

Ferraz Shawmut A6D225R Fuse

Product Description

The Ferraz Shawmut A6D225R is a Class RK1 time-delay fuse designed for optimal performance in various applications. This fuse allows for reduced amp ratings, making it suitable for use in larger fuse holders without the need for replacing existing holders or panels. It features a SmartSpot indicator for easy detection of blown fuses. The time-delay functionality effectively handles motor starting and transformer inrush currents while providing reliable short circuit protection.

• Time-delay functionality accommodates motor in-rush currents.
• SmartSpot indicator for visual open fuse detection.
• Current limiting design minimizes peak let-thru current.

Product Highlights

This fuse is ideal for electricians and technicians who require a dependable safety solution for circuit protection.

Product Information

Standard Information

• Brand: Ferraz Shawmut
• MPN: A6D225R

Technical Specifications

• Voltage: 600VAC/DC
• AC Voltage: 250VAC, 200kA I.R.
• DC Voltage: 250V DC, 100kA I.R.
• Amps: 225A
• Body: 600A
• Interrupting Rate: 200kA AC, 100kA DC
• Approvals: UL Listed, CSA Certified
• Visible Open Indicator: SmartSpot
